A40G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

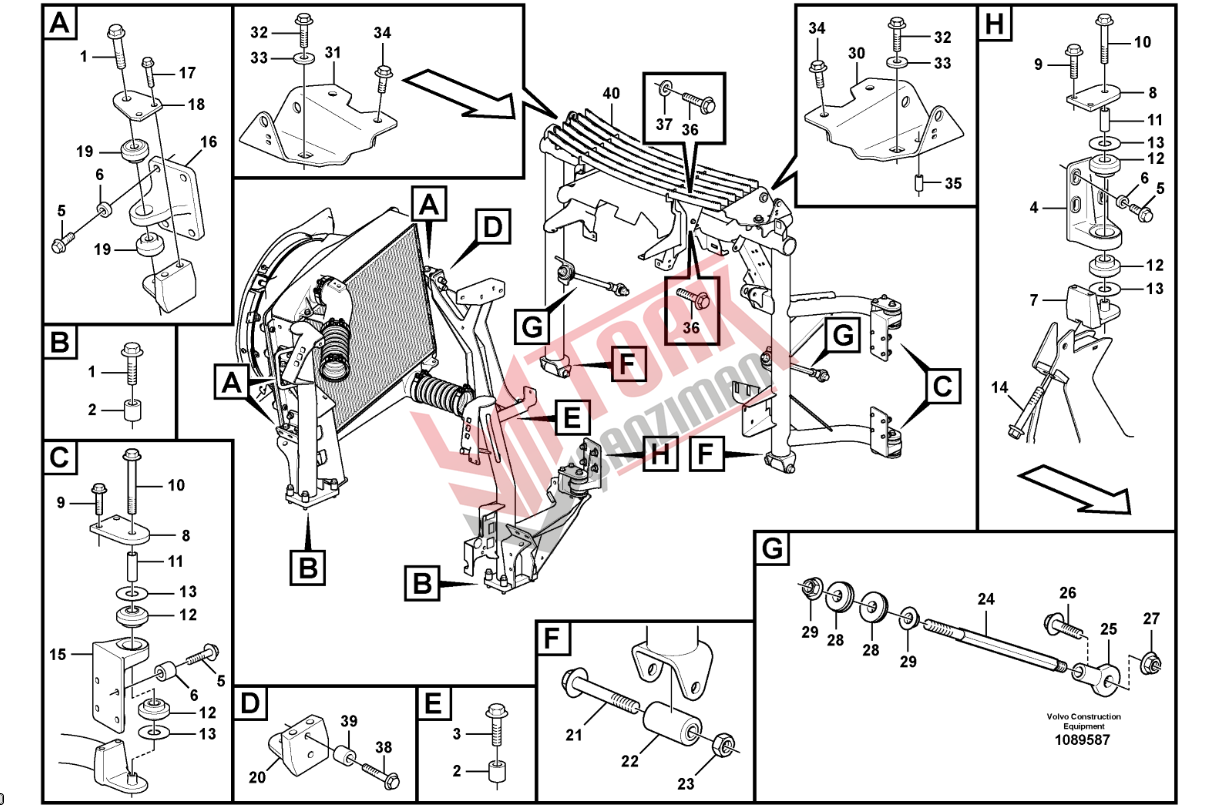

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 13965194 |
Screw | 11 |
| 2 | 4861316 |
Spacer ring | 12 |
| 3 | 13965226 |
Screw | 4 |
| 4 | 11194460 |
Bracket | 1 |
| 5 | 946472 |
Flange screw | 24 |
| 6 | 16866497 |
Spacer sleeve | 24 |
| 7 | 11115285 |
Bracket | 1 |
| 8 | 11063553 |
Plate | 3 |
| 9 | 965185 |
Flange screw | 6 |
| 10 | 965196 |
Flange screw | 3 |
| 11 | 11064008 |
Sleeve | 3 |
| 12 | 11063554 |
Rubber element | 6 |
| 13 | 11063555 |
Plastic washer | 6 |
| 14 | 968591 |
Flange screw | 1 |
| 15 | 11194459 |
Bracket | 2 |
| 16 | 11115288 |
Bracket | 3 |
| 17 | 947760 |
Flange screw | 6 |
| 18 | 11113344 |
Hex. socket screw | 3 |
| 19 | 11113342 |
Rubber element | 6 |
| 20 | 11115298 |
Bracket | 1 |
| 21 | 968593 |
Flange screw | 2 |
| 22 | 11114878 |
Rubber bushing | 2 |
| 23 | 997410 (979021) |
Hexagon nut | 2 |
| 24 | 11113834 |
Stay | 2 |
| 25 | 11050513 |
Link end | 2 |
| 26 | 13968436 |
Screw | 2 |
| 27 | 13967934 |
Flange lock nut | 2 |
| 28 | 11115283 |
Rubber element | 4 |
| 29 | 13968904 |
Flange nut | 4 |
| 30 | 16842294 |
Anchorage | 1 |
| 31 | 16842296 |
Anchorage | 1 |
| 32 | 13965192 |
Screw | 4 |
| 33 | 11055614 |
Plain washer | 4 |
| 34 | 946329 |
Flange screw | 4 |
| 35 | 952031 |
Spring pin | 1 |
| 36 | 946173 |
Flange screw | 7 |
| 37 | 11117464 |
Plain washer | 4 |
| 38 | 965186 |
Flange screw | 2 |
| 39 | 11114567 |
Spacer sleeve | 2 |
| 40 | 16852620 |
Louvre | 1 |
