A40F
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

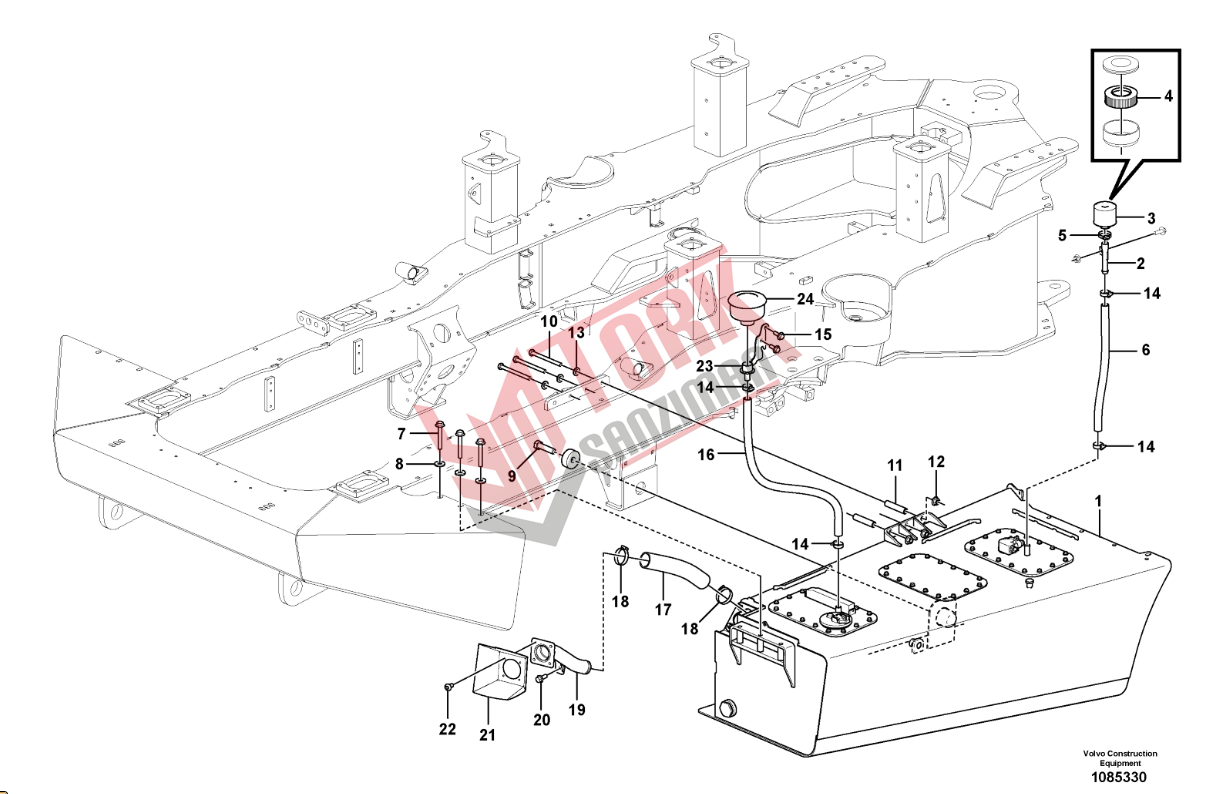

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 16892691 |
Fuel tank | 1 |
| 2 | 16886714 |
Fuel screen | 1 |
| 3 | 11113355 |
Air cleaner | 1 |
| 4 | 11707077 |
•Filter insert | 1 |
| 5 | 943477 |
•Hose clamp | 1 |
| 6 | 992109 |
Hose | 1 |
| 7 | 965197 |
Flange screw | 3 |
| 8 | 11055614 |
Plain washer | 3 |
| 9 | 997475 (978950) |
Hexagon screw | 1 |
| 10 | 13970987 |
Hexagon screw | 3 |
| 11 | 11056696 |
Spacer tube | 2 |
| 12 | 971096 |
Flange nut | 3 |
| 13 | 13930908 |
Washer | 3 |
| 14 | 13943474 |
Hose clamp | 4 |
| 15 | 946329 |
Flange screw | 2 |
| 16 | 983142 |
Hose | 1 |
| 17 | 16886503 |
Hose | 1 |
| 18 | 11059297 |
Hose clamp | 2 |
| 19 | 16871814 |
Filler pipe | 1 |
| 20 | 13946173 |
Screw | 2 |
| 21 | 16871522 |
Splash Shield | 1 |
| 22 | 969598 |
Six point socket screw | 4 |
| 23 | |
Filter Retainer | 1 |
| 24 | 11113355 |
Air cleaner | 1 |
| 11707077 |
•Filter insert | 1 | |
| 943477 |
•Hose clamp | 1 |
