A40F
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

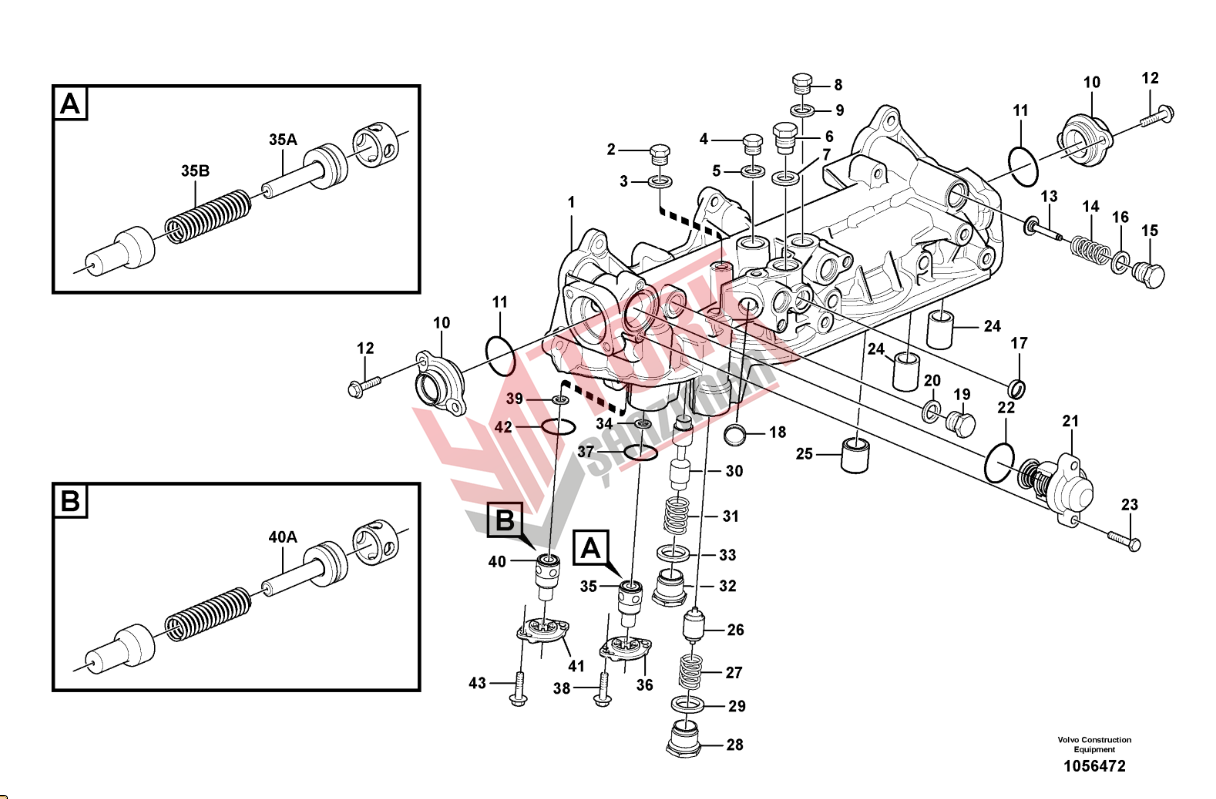

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 17205407 |
Oil filter housing | 1 | |
| 1 | |
•Oil filter housing | 1 |
| 2 | 960628 |
•Plug | 1 |
| 3 | 947281 |
•Gasket | 1 |
| 4 | 960632 |
•Plug | 1 |
| 5 | 13947624 |
•Plane gasket | 1 |
| 6 | 471598 |
•Plug | 1 |
| 7 | 947627 |
•Gasket | 1 |
| 8 | 960632 |
•Plug | 1 |
| 9 | 13947624 |
•Plane gasket | 1 |
| 10 | 11158479 |
•Adapter | 2 |
| 11 | 13948610 |
•O-ring | 2 |
| 12 | 946440 |
•Flange screw | 4 |
| 13 | 471085 |
•Valve cone | 1 |
| 14 | 3830138 |
•Compression spring | 1 |
| 15 | 471598 |
•Plug | 1 |
| 16 | 947627 |
•Gasket | 1 |
| 17 | 946778 |
•Cap plug | 1 |
| 18 | 946778 |
•Cap plug | 1 |
| 19 | 960632 |
•Plug | 1 |
| 20 | 13947624 |
•Plane gasket | 1 |
| 21 | 20903074 |
•Thermostat | 1 |
| 22 | 949659 |
•O-ring | 1 |
| 23 | 13947542 |
•Screw | 2 |
| 24 | 20542060 |
•Nipple | 2 |
| 25 | 20542058 |
•Nipple | 1 |
| 26 | 20440779 |
•Valve cone | 1 |
| 27 | 20464676 |
•Spring | 1 |
| 28 | |
•Plug | 1 |
| 29 | 13947629 |
•Plane gasket | 1 |
| 30 | 20440781 |
•Piston | 1 |
| 31 | 20464676 |
•Spring | 1 |
| 32 | |
•Plug | 1 |
| 33 | 13947629 |
•Plane gasket | 1 |
| 34 | 469846 |
•Sealing ring | 1 |
| 35 | 471812 |
•Valve | 1 |
| 35A | 421547 |
••Valve Peg | 1 |
| 35B | 466445 |
••Compression spring | 1 |
| 36 | 471648 |
•Cover | 1 |
| 37 | 949659 |
•O-ring | 1 |
| 38 | 946544 |
•Flange screw | 2 |
| 39 | 469846 |
•Sealing ring | 1 |
| 40 | 3826265 |
•Reducing Valve | 1 |
| 40A | 421547 |
••Valve Peg | 1 |
| 41 | 471648 |
•Cover | 1 |
| 42 | 949659 |
•O-ring | 1 |
| 43 | 946544 |
•Flange screw | 2 |
