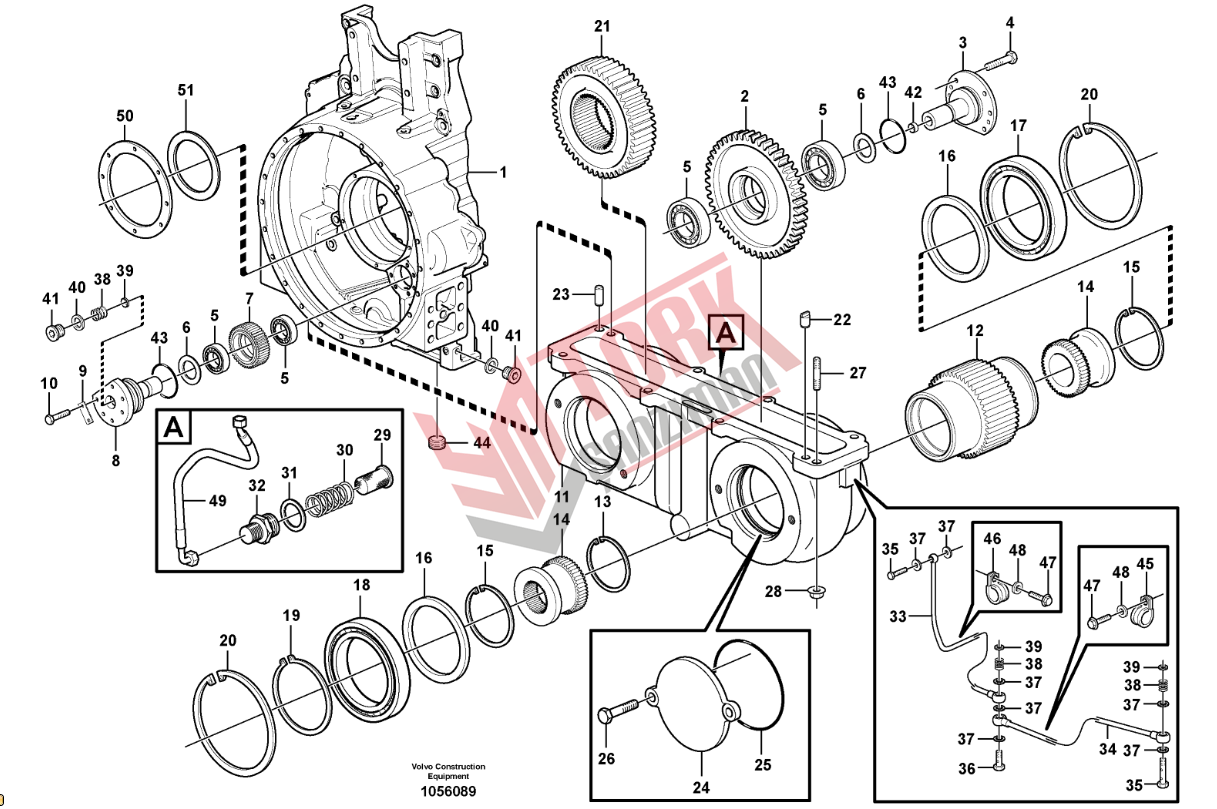

YM Güç Tork - 482/150 Pump drive power take-off 11447062 - A40E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
		Power Take-off	1
1		•Gearbox housing	1
2	11158249	•Gear	1
3	11158250	•Shaft	1
4	991620	•Hexagon screw	6
5	183839	•Roller bearing	4
6	4771366	•Spacer ring	REQ
6	4771367	•Spacer ring	REQ
6	4771368	•Spacer ring	REQ
6	4771369	•Spacer ring	REQ
6	4771370	•Spacer ring	REQ
6	4771371	•Spacer ring	REQ
6	4771372	•Spacer ring	REQ
6	4771373	•Spacer ring	REQ
6	4771374	•Spacer ring	REQ
6	4771375	•Spacer ring	REQ
6	4771376	•Spacer ring	REQ
6	4771377	•Spacer ring	REQ
6	4771378	•Spacer ring	REQ
6	4771379	•Spacer ring	REQ
6	4771380	•Spacer ring	REQ
6	4771381	•Spacer ring	REQ
6	4771382	•Spacer ring	REQ
7	11127950	•Gear	1
8	11447083	•Shaft	1
9	7015025	•Tab washer	3
10	991620	•Hexagon screw	6
11	11158364	•Gearbox housing	1
12	4770605	•Shaft	2
13	914525	•Retaining ring	2
14	11031509	•Splined sleeve	4
15	914529	•Retaining ring	4
16	11030368	•Spacer ring	4
17	183408	•Ball bearing	2
18	7019283	•Ball bearing	2
19	914478	•Snap ring	2
20	914548	•Retaining ring	4
21	4770431	•Gear	2
22	4770525	•Pin	1
23	191171	•Pin	1
24	11447017	•Cover	4
25	977025	•O-ring	4
26	13965191	•Screw	8
27	924081	•Stud	8
28	13971095	•Flange nut	8
29	4770428	•Strainer	1
30	4770473	•Spring	1
31	13947628	•Plane gasket	1
32	11128012	•Nipple	1
33	11447061	•Delivery pipe	1
34	11158260	•Delivery pipe	1
35	7074033	•Hollow screw	3
36	7074034	•Hollow screw	1
37	947620	•Gasket	7
38	703751	•Spring	3
39	11031684	•Restricting washer	3
40	7011992	•Gasket	2
41	977917	•Plug	2
42	4837098	•Reduction	1
43	977015	•O-ring	3
44	940375	•Plug	1
45	952622	•Clamp	1
46	13947191	•Clamp	1
47	13965175	•Screw	2
48		•Spacer washer	2
49		Oil Hose	1
50		Cap	1
51		Sealing ring	1
