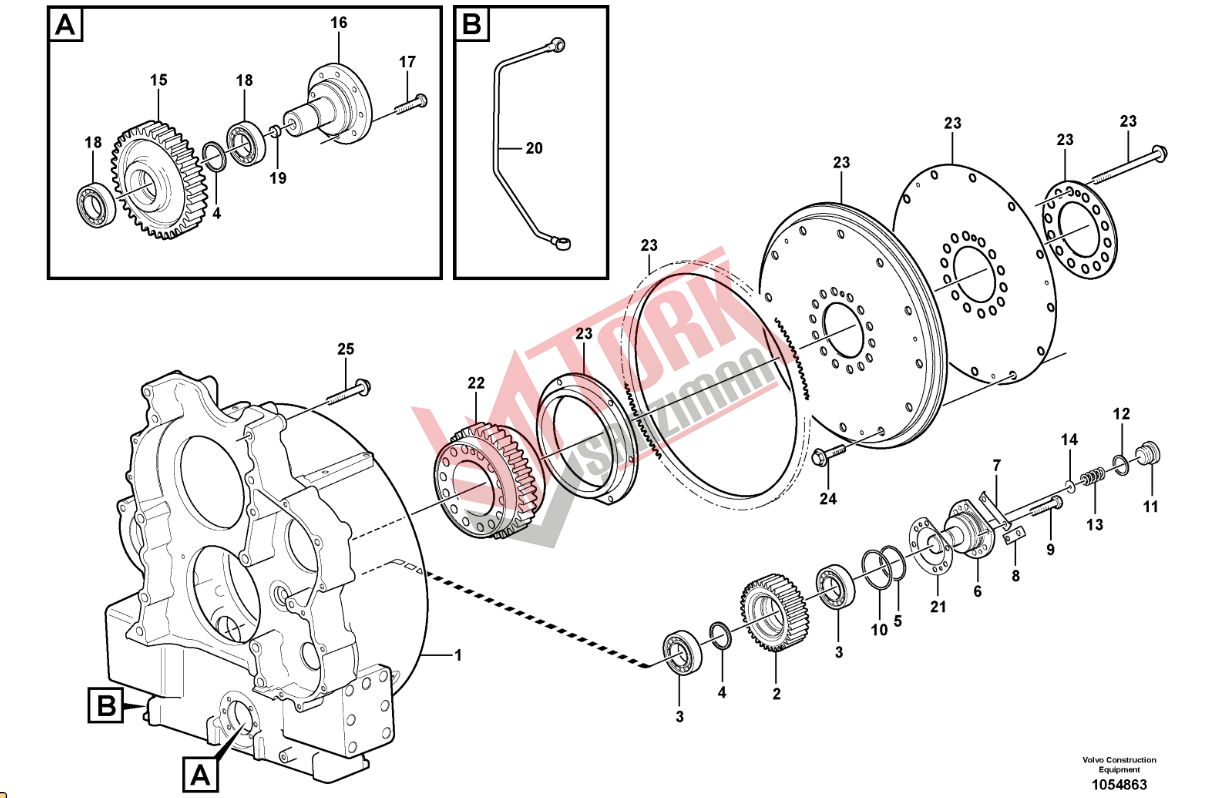

YM Güç Tork - 482/100 Pump drive 11447062 - A40E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	11447062	Power take-off	1
1	11447063	•Gearbox housing	1
2	11127950	•Gear	1
3	183839	•Roller bearing	2
4	4771366	•Spacer ring	REQ
4	4771367	•Spacer ring	REQ
4	4771368	•Spacer ring	REQ
4	4771369	•Spacer ring	REQ
4	4771370	•Spacer ring	REQ
4	4771371	•Spacer ring	REQ
4	4771372	•Spacer ring	REQ
4	4771373	•Spacer ring	REQ
4	4771374	•Spacer ring	REQ
4	4771375	•Spacer ring	REQ
4	4771376	•Spacer ring	REQ
4	4771377	•Spacer ring	REQ
4	4771378	•Spacer ring	REQ
4	4771379	•Spacer ring	REQ
4	4771380	•Spacer ring	REQ
4	4771381	•Spacer ring	REQ
4	4771382	•Spacer ring	REQ
5	977015	•O-ring	1
6	11447083	•Shaft	1
7	7015025	•Tab washer	1
8	7015025	•Tab washer	2
9	955297	•Hexagon screw	6
10	977015	•O-ring	2
11	977917	•Plug	1
12	7011992	•Gasket	1
13	703751	•Spring	1
14	11031684	•Restricting washer	1
15	11158249	•Gear	1
16	11158250	•Shaft	1
17	991620	•Hexagon screw	6
18	183839	•Roller bearing	2
19	4837098	•Reduction	1
20		•Pressure Pipe	1
21	15107293	•Shim	REQ
21	15107298	•Shim	REQ
21	15107297	•Shim	REQ
22		Gear	1
23		Cap	1
23		Flywheel	1
23		•Gear Ring	1
23		•Plate	1
23		Thrust Plate	1
23		Screw	14
24	946502	Flange screw	12
25		Flange screw	7

Power take-off

1

•Gearbox housing

1

2

•Gear

1

3
