A40E
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım

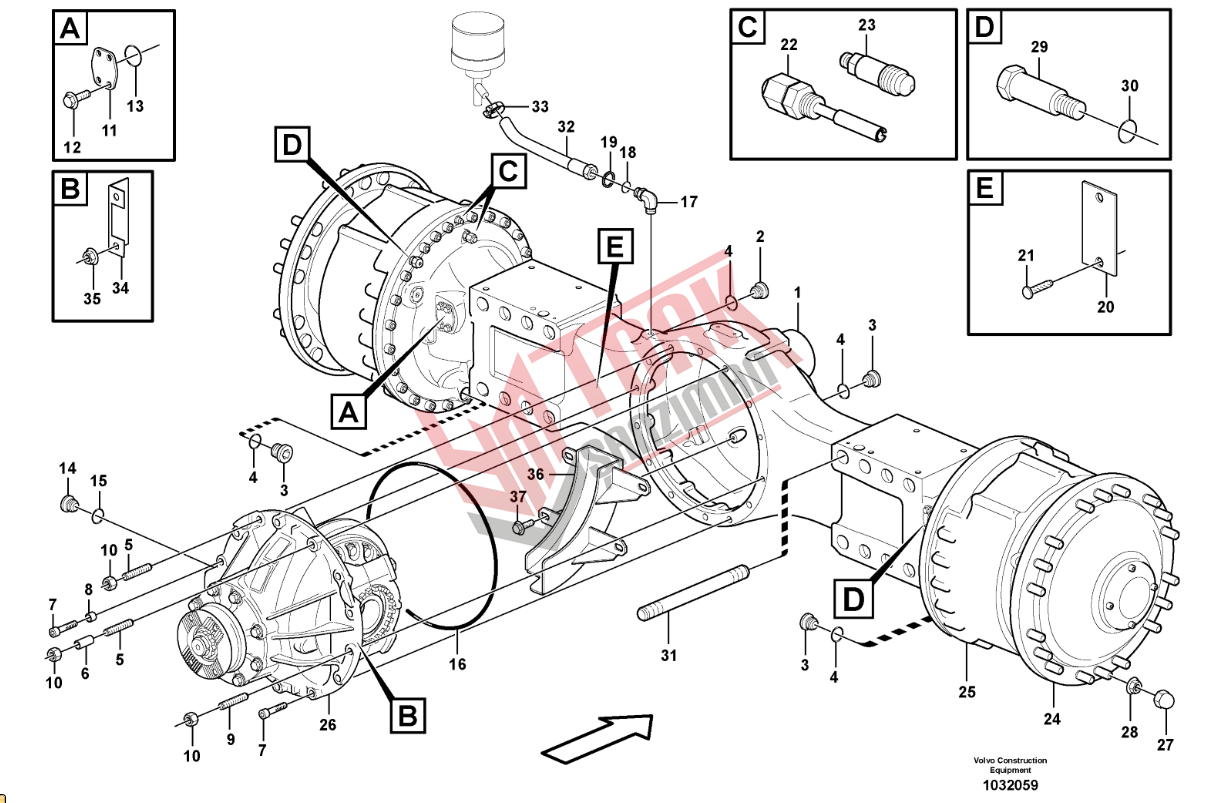

+90 552 671 32 12FRONT AXLE; REAR AXLE > 461/100 Planetary axle, motor unit ARB/H40 PROD NO 23957
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23957 |
Planetary Axle | 1 | |
| 1 | 11143266 |
•Axle casing | 1 |
| 2 | 11034156 |
•Plug | 1 |
| 3 | 11102187 |
•Magnetic plug | 3 |
| 4 | 958228 |
•O-ring | 4 |
| 5 | 15044185 (11143351) |
•Stud | 2 |
| 6 | 11143352 |
•Spacer sleeve | 1 |
| 7 | 949544 |
•Hex. socket screw | 10 |
| 8 | 11102959 |
•Spacer sleeve | 2 |
| 9 | 15044181 (11143391) |
•Stud | 2 |
| 10 | 997410 (979021) |
•Hexagon nut | 4 |
| 11 | 11037816 |
•Cover | 2 |
| 12 | 946471 |
•Flange screw | 8 |
| 13 | 949659 |
•O-ring | 2 |
| 14 | 960629 |
•Plug | 1 |
| 15 | 13947282 |
•Gasket | 1 |
| 16 | 993432 (992157) |
•O-ring | 1 |
| 17 | 931233 |
•Nipple | 1 |
| 18 | 931210 |
••O-ring | 1 |
| 19 | 931217 |
••Back-up ring | 1 |
| 20 | |
•Sign | 1 |
| 21 | 950891 |
•Drive screw | 2 |
| 22 | 11143337 |
•Wear Indicator | 2 |
| 23 | 15142951 (11143326) |
•Bleeder nipple | 2 |
| 24 | |
•Planetary gear | 2 |
| 25 | |
•Brake | 4 |
| 26 | |
•Final drive | 1 |
| 27 | 11100354 |
•Nut cap | 36 |
| 28 | 947972 |
•Wheel nut | 36 |
| 29 | 15143043 (11143084) |
•Sleeve | 2 |
| 30 | 13976109 |
•O-ring | 2 |
| 31 | |
Stud | 16 |
| 32 | 11196133 |
Hose | 1 |
| 32 | 15017889 |
Hose assembly | 1 |
| 33 | 943470 |
Hose clamp | 1 |
| 34 | |
Protecting plate | 1 |
| 35 | 13968904 |
Flange nut | 2 |
| 36 | 11143366 |
Cover | 1 |
| 37 | 996328 |
Flange screw | 4 |
