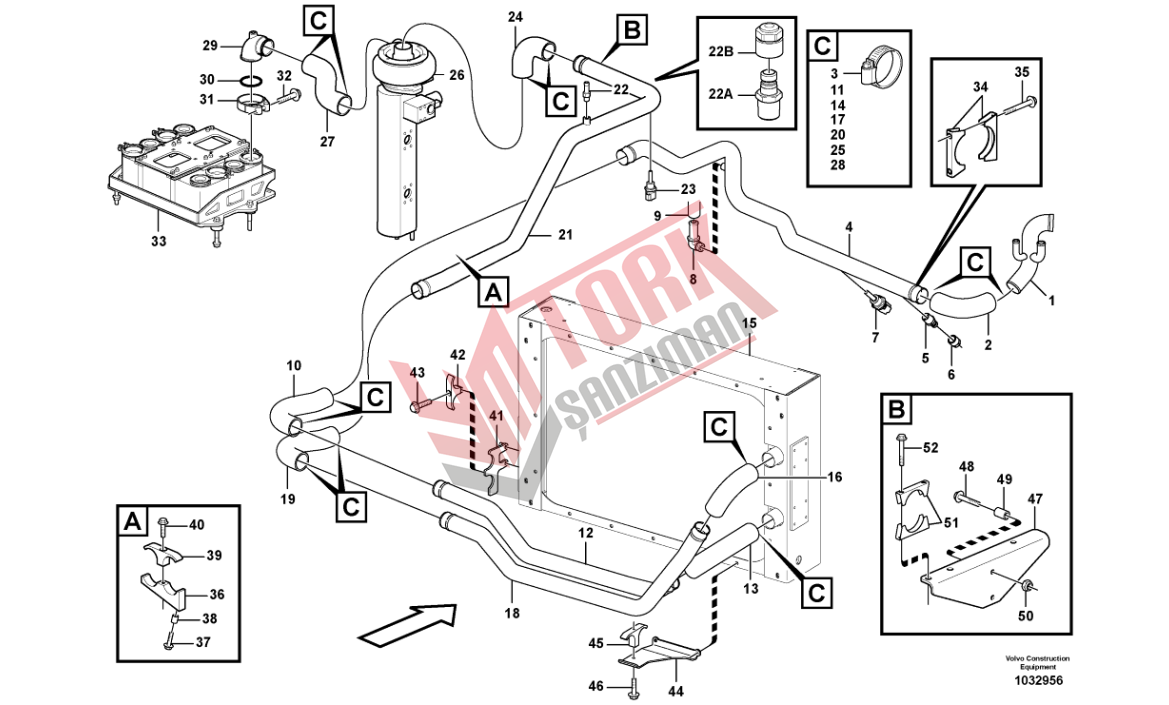

A40E
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Pipe | 1 |
| 2 | 11194431 |
Radiator hose | 1 |
| 3 | 11059298 |
Hose clamp | 2 |
| 4 | 11194375 |
Coolant pipe | 1 |
| 5 | 11423133 |
Nipple | 1 |
| 6 | 11194108 |
Protecting sleeve | 1 |
| 7 | 11419486 |
Temperature sensor | 1 |
| 8 | 979270 |
Hose nipple | 1 |
| 9 | |
Hose | 1 |
| 10 | 4775509 |
Radiator hose | 1 |
| 11 | 11059298 |
Hose clamp | 2 |
| 12 | 11196997 |
Tube | 1 |
| 13 | 4775509 |
Radiator hose | 1 |
| 14 | 11059298 |
Hose clamp | 2 |
| 15 | |
Radiator | 1 |
| 16 | 11061686 |
Radiator hose | 1 |
| 17 | 11059298 |
Hose clamp | 2 |
| 18 | 11196996 |
Tube | 1 |
| 19 | 4775509 |
Radiator hose | 1 |
| 20 | 11059298 |
Hose clamp | 2 |
| 21 | 11195154 |
Coolant pipe | 1 |
| 15039363 |
Pipe line | 1 | |
| 22 | |
Nipple | 1 |
| 22A | 11423133 |
Nipple | 1 |
| 22B | 11194108 |
Protecting sleeve | 1 |
| 23 | 11419486 |
Temperature sensor | 1 |
| 24 | 11112974 |
Radiator hose | 1 |
| 25 | 11059298 |
Hose clamp | 2 |
| 26 | |
Pump | 1 |
| 27 | 11194600 |
Radiator hose | 1 |
| 28 | 11059298 |
Hose clamp | 2 |
| 29 | 16828476 (11119454) |
Connecting pipe | 1 |
| 30 | 11445263 |
O-ring | 1 |
| 31 | 1542778 |
V-clamp | 1 |
| 32 | 13948356 |
Flange screw | 1 |
| 33 | |
Heat Exchanger | 1 |
| 34 | 11115150 |
Clamp | 1 |
| 35 | 13965218 |
Screw | 1 |
| 36 | 11195156 |
Retainer | 1 |
| 37 | 13947760 |
Screw | 2 |
| 38 | 11053913 |
Spacer sleeve | 1 |
| 39 | 11193785 |
Clamp | 1 |
| 40 | 13965179 |
Screw | 1 |
| 41 | 11196995 |
Bracket | 1 |
| 42 | 11193785 |
Clamp | 1 |
| 43 | 13965179 |
Screw | 1 |
| 44 | 11196204 |
Plate | 1 |
| 45 | |
Clamp | 1 |
| 46 | 13947760 |
Screw | 1 |
| 47 | |
Bracket | 1 |
| 48 | 13947760 |
Screw | 2 |
| 49 | 11053913 |
Spacer sleeve | 2 |
| 50 | 13945408 |
Nut | 2 |
| 51 | 11115150 |
Clamp | 2 |
| 52 | 13965183 |
Flange screw | 2 |
