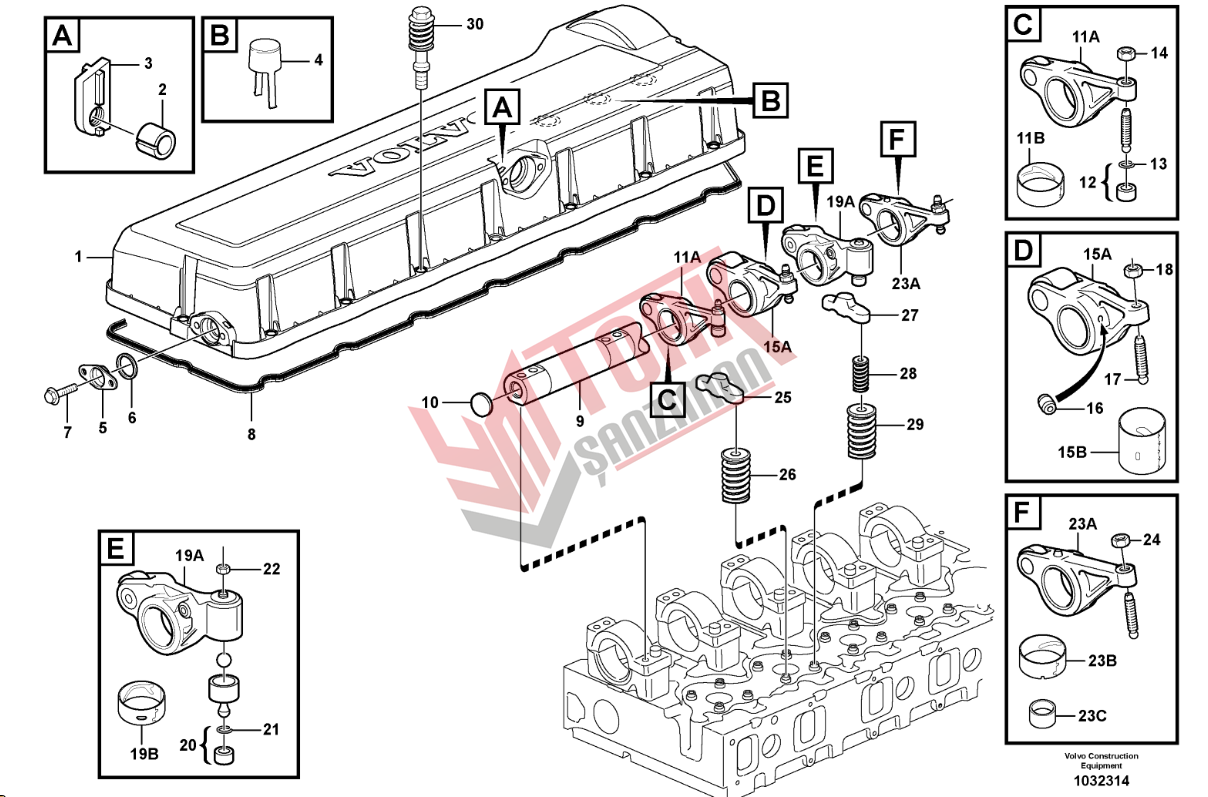

+90 552 671 32 12ENGINE > 214/100 Valve mechanism 8188184, 8188185, 818188, 8188189 ENG - 34401
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 20709580 |
Valve cover | 1 | |
| 1 | |
•Cover | 1 |
| 2 | 20450320 |
•Spacer sleeve | 4 |
| 3 | 24427518 |
•Nut washer | 4 |
| 4 | 8131751 |
•Draining bowl | 3 |
| 5 | 3964803 |
Plug | 1 |
| 6 | 20555696 |
Sealing ring | 1 |
| 7 | 946440 |
Flange screw | 2 |
| 8 | 20736230 |
Sealing strip | 1 |
| 9 | 24426580 |
Rocker arm shaft | 1 |
| 10 | 980176 |
•Expansion plug | 2 |
| 11A | 21282708 (20964530) |
Rocker arm | 6 |
| 11B | 20731777 |
•Bushing | 6 |
| 12 | 21054149 |
•Ball socket | 6 |
| 13 | 944364 |
••O-ring | 6 |
| 14 | 13946911 |
•Nut | 6 |
| 15A | 21132292 (21064253) |
Rocker arm | 6 |
| 15B | 21132305 |
•Bushing | 6 |
| 16 | 3964817 |
•Jet | 12 |
| 17 | 20501057 |
•Adjusting Screw | 6 |
| 18 | 1677396 |
•Hexagon nut | 6 |
| 19A | 20925515 |
Rocker Arm | 6 |
| 19A | 21595700 (21281393) |
Rocker arm | |
| 19B | 21132337 |
•Bushing | |
| 20 | 21054149 |
•Ball socket | 6 |
| 21 | 944364 |
••O-ring | 6 |
| 22 | 13946911 |
•Nut | 6 |
| 20742994 |
•Adjusting screw | 6 | |
| 23A | 21132342 (20964534) |
Rocker arm | 6 |
| 23B | 21132344 |
•Bushing | 6 |
| 23C | 1546046 |
•Bushing | 6 |
| 24 | 1677396 |
•Hexagon nut | 6 |
| 25 | 21061323 (20463791) |
Valve bridge | 6 |
| 26 | |
Valve Spring | 6 |
| 27 | 20857578 |
Valve caliper | 6 |
| 28 | |
Valve Spring | 12 |
| 29 | |
Valve Spring | 12 |
| 30 | 20739547 (20538726) |
Flange screw | 17 |
