A40D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

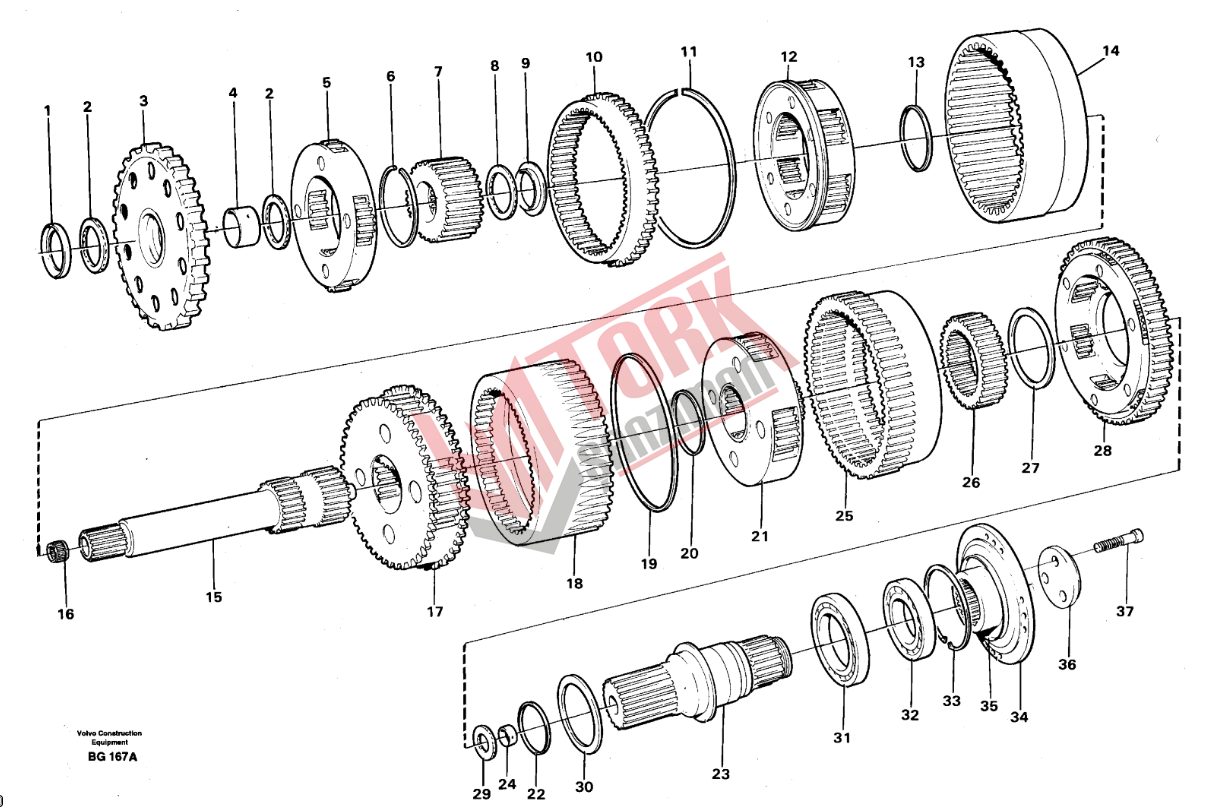

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 1650403 |
Thrust washer | 1 |
| 2 | 11036565 |
Needle bearing | 2 |
| 3 | 11038267 (11037398) |
Sun gear | 1 |
| 4 | 1650378 |
•Bushing | 1 |
| 5 | |
Planet carrier | 1 |
| 6 | 1650348 |
Snap ring | 1 |
| 7 | 11145435 (1650097) |
Sun gear | 1 |
| 8 | 11036565 |
Needle bearing | 1 |
| 9 | 1650399 |
Thrust washer | 1 |
| 10 | 11037939 (1650303) |
Ring gear | 1 |
| 11 | 1650350 |
Snap ring | 1 |
| 12 | |
Planet carrier | 1 |
| 13 | 15112696 (11036557) |
Thrust washer | 1 |
| 14 | 11037943 (1650309) |
Ring gear | 1 |
| 15 | 11036846 |
Main shaft | 1 |
| 16 | 181282 |
•Ndl Roller Bshg | 1 |
| 17 | |
Planet carrier | 1 |
| 18 | 11037387 (1650304) |
Ring gear | 1 |
| 19 | 1650353 |
Snap ring | 1 |
| 20 | 15112696 (11036557) |
Thrust washer | REQ |
| 15046266 (15112698) |
Thrust washer | REQ | |
| 15046268 (11036559) |
Thrust washer | REQ | |
| 15046270 (11036560) |
Thrust washer | REQ | |
| 15046265 (11036561) |
Thrust washer | REQ | |
| 15046267 (11036562) |
Thrust washer | REQ | |
| 15112704 (11036563) |
Thrust washer | REQ | |
| 21 | |
Planet carrier | 1 |
| 22 | 11037342 |
Snap ring | 1 |
| 23 | 11145431 (11036896) |
Shaft | 1 |
| 24 | 17243008 (1650376) |
•Bushing | 1 |
| 25 | 11037941 (1650129) |
Ring gear | 1 |
| 26 | 11037347 |
Sun gear | 1 |
| 27 | 15046275 (1650394) |
Thrust washer | 1 |
| 28 | |
Planet carrier | 1 |
| 29 | 1650412 |
Needle bearing | 1 |
| 30 | 15046275 (1650394) |
Thrust washer | 1 |
| 31 | 181451 |
Ball bearing | 1 |
| 32 | 18572 |
Ball bearing | 1 |
| 33 | 1650336 |
Snap ring | 1 |
| 34 | 11036864 |
Companion flange | 1 |
| 35 | |
Sealing strip | 1 |
| 36 | 11036863 |
Washer | 1 |
| 37 | 959264 |
Hex. socket screw | 3 |
