A40D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

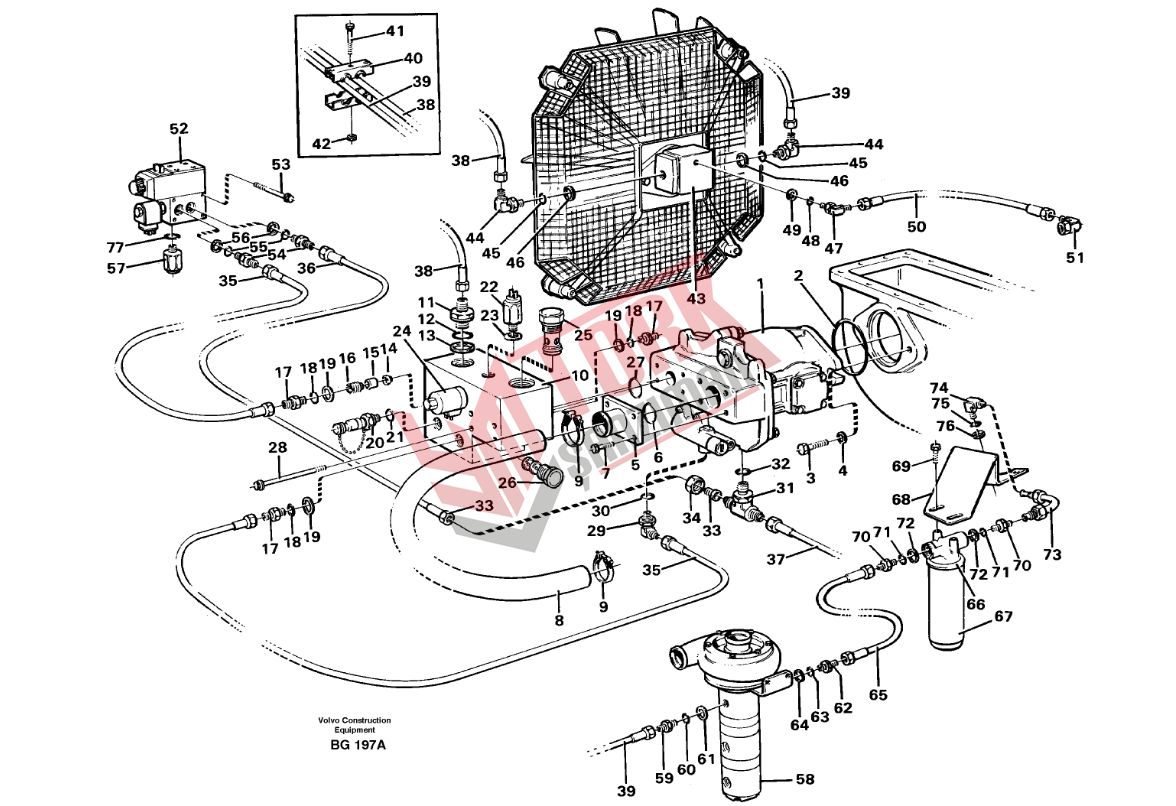

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11054236 |
Hydraulic pump | 1 |
| 2 | 977025 (925260) |
O-ring | 1 |
| 3 | 955561 |
Hexagon screw | 2 |
| 4 | 13960145 |
Washer | 2 |
| 5 | 11062043 |
Pipe | 1 |
| 6 | 13949239 |
O-ring | 1 |
| 7 | 13970970 |
Hexagon screw | 4 |
| 8 | 11063092 |
Hydraulic hose | 1 |
| 9 | 11059297 (4786576) |
Hose clamp | 2 |
| 10 | 11062500 |
Valve body | 1 |
| 11 | 931228 |
•Nipple | 1 |
| 12 | 931212 |
••O-ring | 1 |
| 13 | 931219 |
••Back-up ring | 1 |
| 14 | 4881697 |
•Strainer | 1 |
| 15 | 4821777 |
•Restricting washer | 1 |
| 16 | 4821775 |
•Screw Bushing | 1 |
| 17 | 4821831 |
•Nipple | 3 |
| 18 | 931209 |
••O-ring | 3 |
| 19 | 931216 |
••Back-up ring | 3 |
| 20 | 930032 |
•Testing nipple | 1 |
| 931209 |
••O-ring | 1 | |
| 931216 |
••Back-up ring | 1 | |
| 21 | 13945653 |
•Plane gasket | 1 |
| 22 | 11117160 (11062214) |
•Pressure monitor | 1 |
| 23 | 14013067 (943907) |
•Sealing washer | 1 |
| 24 | 11701513 |
•Solenoid valve | 1 |
| 25 | 11701511 |
•Non-return valve | 1 |
| 11702793 |
••Gasket kit | 1 | |
| 26 | 11701510 |
•Shuttle valve | 1 |
| 11702794 |
••Gasket kit | 1 | |
| 27 | 990756 (13948700) |
Sealing ring | 1 |
| 28 | 968237 |
Flange screw | 4 |
| 29 | 4821838 |
L-connection | 1 |
| 30 | 993319 (932037) |
•O-ring | 1 |
| 31 | 4881533 |
Nipple | 1 |
| 32 | 993322 (932041) |
•O-ring | 1 |
| 33 | 4821848 |
Nipple | 1 |
| 34 | 4785906 |
Nut | 1 |
| 35 | 932103 |
Hose assembly | 2 |
| 36 | 13932703 |
Hose assembly | 1 |
| 37 | 13933102 |
Hose assembly | 1 |
| 38 | 13933531 |
Hose assembly | 1 |
| 39 | 13933423 |
Hose assembly | 1 |
| 40 | 11061835 |
Retainer | 2 |
| 41 | 13946173 |
Screw | 4 |
| 42 | 11061791 |
Nut | 4 |
| 43 | 11062160 |
Hydraulic motor | 1 |
| 11702574 |
•Lock ring | 1 | |
| 11702572 |
•Sealing kit | 1 | |
| 11702573 |
••Sealing ring | 1 | |
| 44 | 931235 |
Nipple | 2 |
| 45 | 931212 |
•O-ring | 2 |
| 46 | 931219 |
•Back-up ring | 2 |
| 47 | 931232 |
Nipple | 1 |
| 48 | 931209 |
•O-ring | 1 |
| 49 | 931216 |
•Back-up ring | 1 |
| 50 | 13933529 |
Hose assembly | 1 |
| 51 | 4864926 |
Clutch | 1 |
| 52 | |
Valve block | 1 |
| 53 | 13965178 |
Screw | 4 |
| 54 | 4821831 |
Nipple | 2 |
| 55 | 931209 |
•O-ring | 2 |
| 56 | 931216 |
•Back-up ring | 2 |
| 57 | 11062620 |
Pressure monitor | 1 |
| 58 | |
Water pump | 1 |
| 59 | 4933535 |
•Nipple | 1 |
| 60 | 931211 |
••O-ring | 1 |
| 61 | 931218 |
••Back-up ring | 1 |
| 62 | 931228 |
•Nipple | 1 |
| 63 | 931212 |
••O-ring | 1 |
| 64 | 931219 |
••Back-up ring | 1 |
| 65 | 931065 |
Hose assembly | 1 |
| 66 | 11061436 |
Return filter | 1 |
| 67 | 3831236 (6211489) |
•Oil filter | 1 |
| 68 | 11062651 |
Bracket | 1 |
| 69 | 946441 |
Flange screw | 2 |
| 70 | 931228 |
Nipple | 2 |
| 71 | 931212 |
•O-ring | 2 |
| 72 | 931219 |
•Back-up ring | 2 |
| 73 | 11062652 |
Pipe bend | 1 |
| 74 | 931235 |
Nipple | 1 |
| 75 | 931212 |
•O-ring | 1 |
| 76 | 931219 |
•Back-up ring | 1 |
| 77 | 14013067 (943907) |
Sealing washer | 1 |
