A40D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

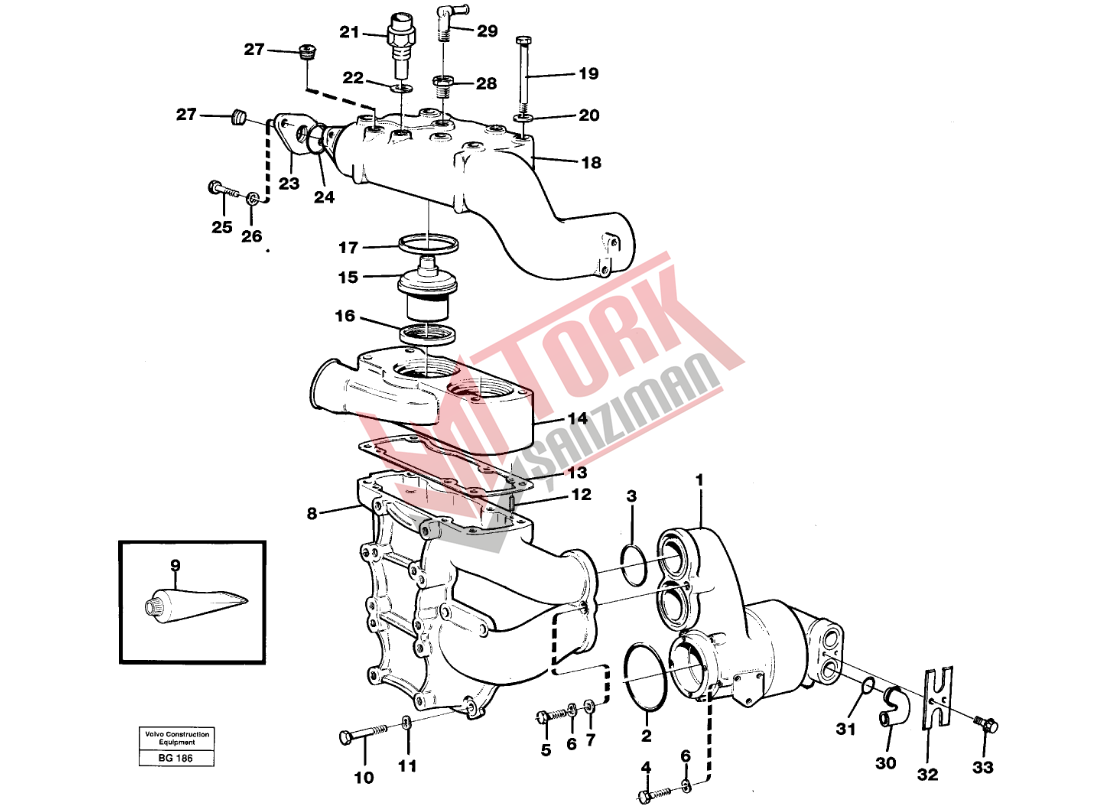

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Water pump | 1 |
| 2 | 925257 |
O-ring | 1 |
| 3 | 1664473 |
O-ring | 2 |
| 4 | 955542 |
Hexagon screw | 4 |
| 5 | 955535 |
Hexagon screw | 1 |
| 6 | 13942336 |
Spring washer | 5 |
| 7 | 13940097 |
Washer | 1 |
| 8 | 8193577 (470924) |
Thermostat housing | 1 |
| 9 | 1161277 |
Sealant | REQ |
| 10 | 955535 |
Hexagon screw | 4 |
| 955541 |
Hexagon screw | 3 | |
| 11 | 13942336 |
Spring washer | 7 |
| 12 | 13951973 |
Spring pin | 2 |
| 13 | 423352 |
Gasket | 1 |
| 14 | 470548 |
Thermostat housing | 1 |
| 15 | 8149182 (1676306) |
Thermostat | 2 |
| 16 | 1544710 |
Sealing ring | 2 |
| 17 | 11000236 |
Sealing ring | 2 |
| 18 | 470554 |
Thermostat housing | 1 |
| 19 | 959798 |
Hexagon screw | 4 |
| 20 | 13940097 |
Washer | 2 |
| 21 | 4803227 |
Sensor | 1 |
| 22 | 13947622 (7011996) |
Plane gasket | 1 |
| 23 | 843908 |
Flange | 1 |
| 24 | 469477 |
Sealing ring | 1 |
| 25 | 955524 |
Hexagon screw | 2 |
| 26 | 13941907 |
Washer | 2 |
| 27 | 479977 |
Plug | 3 |
| 28 | 479954 |
Nipple | 1 |
| 29 | 942758 |
Nipple | 1 |
| 30 | 11030745 |
Tube End | 2 |
| 31 | 11030751 |
Sealing ring | 2 |
| 32 | 11030747 |
Lock washer | 1 |
| 33 | 13946934 |
Screw | 2 |
