A40D

Hemen bizi arayın yardımcı olalım

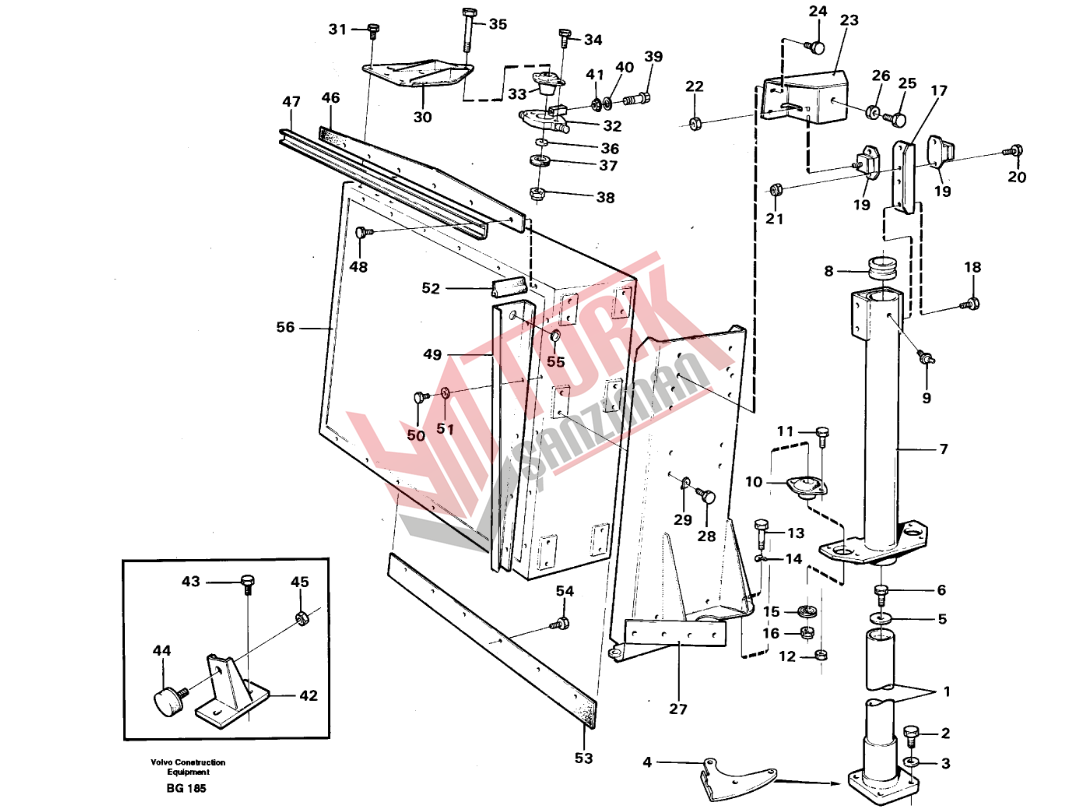

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	4775259	Stanchion	1
2	13965192	Screw	4
3	13930908 (11055607)	Washer	1
4	11051070	Stop lug	1
5	4778144	Washer	1
6	13965191	Screw	1
7	11050411	Anchorage	1
8	4778145	Bushing	1
9	914170	Lubricating nipple	2
10	4881195	Rubber damper	2
11	13965185	Screw	4
12	13971098	Flange nut	4
13	946473	Flange screw	2
14	13955897	Washer	2
15	4881194	Washer	2
16	971099 (13971099)	Flange lock nut	2
17	4778133	Stay	1
18	946471	Flange screw	2
19	4881177	Rubber cushion	2
20	13946934	Screw	2
21	13949278	Flange lock nut	2
22	13945408 (948645)	Nut	2
23	11050388	Brace	1
24	946471	Flange screw	4
25	955388	Hexagon screw	1
26	13976433	Flange nut	1
27	11057600	Attachment	1
28	946471	Flange screw	12
29	13960143	Washer	12
30	11056267	Attachment	1
31	13965191	Screw	6
32	11050101	Plate	1
33	4881195	Rubber damper	1
34	946441	Flange screw	2
35	946473	Flange screw	1
36	13955897	Washer	1
37	4881194	Washer	1
38	971099 (13971099)	Flange lock nut	1
39	13965193	Screw	1
40	4737842	Washer	1
41	971099 (13971099)	Flange lock nut	1
42		Stop	1
43	946441	Flange screw	2
44	4778391	Rubber damper	1
45	13971098	Flange nut	1
46	4778430	Rubber cloth	1
47	4778432	Rail	1
48	946440	Flange screw	6
49	11050887	Attaching plate	1
50	947107	Flange screw	6
51	13960141 (13960141)	Washer	6
52	4880191	Rubber moulding	REQ
53	11052152 (11050840)	Rubber cloth	1
	11052152	Rubber cloth	1
54	13946173	Screw	6
55		Plug	1
56		Radiator	1
