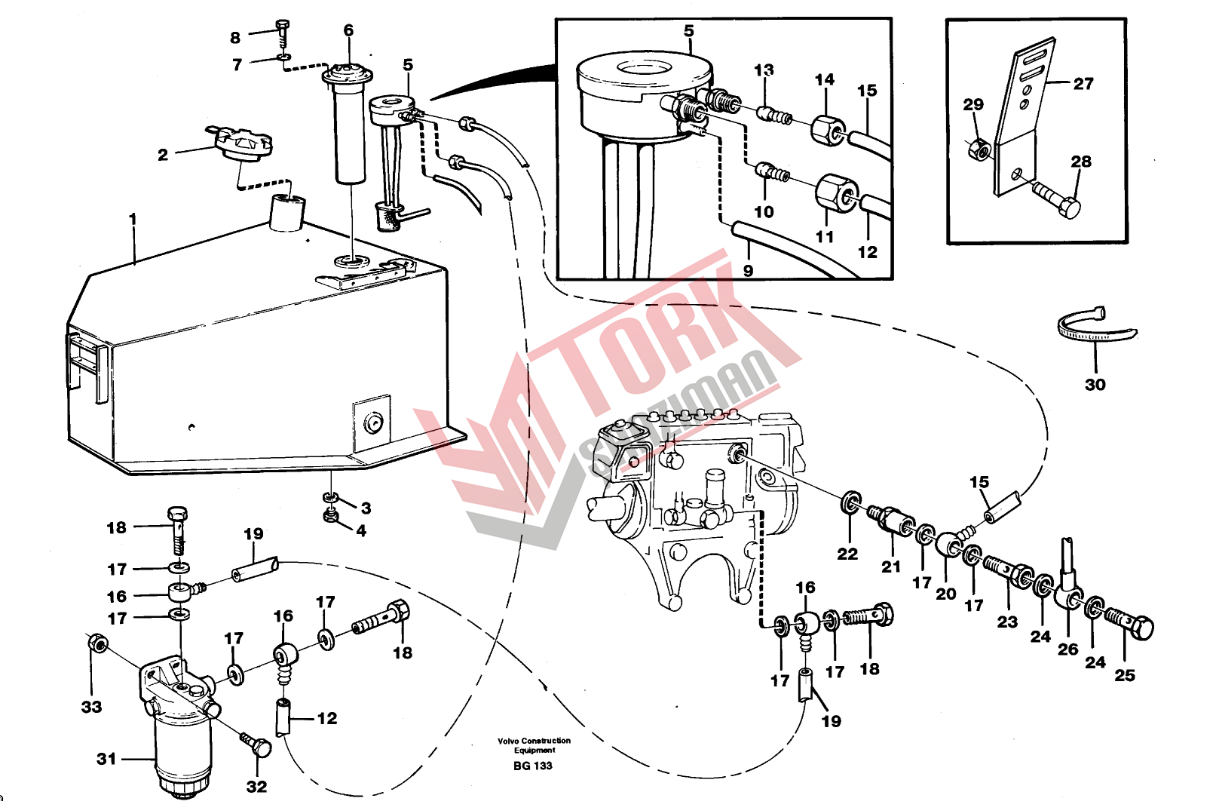

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11050685 |
Fuel tank | 1 |
| 11052355 |
Fuel tank | 1 | |
| 2 | 1189577 |
•Filler cap | 1 |
| 1698164 |
••Gasket | 1 | |
| 11991396 |
••Key | 2 | |
| 3 | 957184 |
•Gasket | 1 |
| 4 | 4948183 |
•Plug | 1 |
| 5 | 4803800 |
Combined tank unit | 1 |
| 6 | 4803665 |
Combined tank unit | 1 |
| 7 | 7011991 |
Gasket | 6 |
| 8 | 13955271 |
Screw | 6 |
| 9 | 192034 |
Rubber hose | REQ |
| 10 | 975541 |
Nipple | 1 |
| 11 | 326597 (7326597) |
Fitting nut | 1 |
| 12 | 945462 |
Tube | REQ |
| 13 | 975540 |
Nipple | 1 |
| 14 | 326596 (7326596) |
Fitting nut | 1 |
| 15 | 13945461 |
Plastic pipe | REQ |
| 16 | 977753 |
Banjo nipple | 3 |
| 17 | 13947621 |
Plane gasket | 8 |
| 18 | 7025167 |
Hollow screw | 3 |
| 19 | 945462 |
Tube | REQ |
| 20 | 968176 |
Banjo nipple | 1 |
| 21 | 11996309 |
Overflow valve | 1 |
| 22 | 13947621 |
Plane gasket | 1 |
| 23 | 7016496 |
Hollow screw | 1 |
| 24 | |
Gasket | 2 |
| 25 | |
Hollow screw | 1 |
| 26 | |
Leak-off line | 1 |
| 27 | 11050795 |
Attachment | 1 |
| 28 | 13965191 |
Screw | 1 |
| 29 | 971099 (13971099) |
Flange lock nut | 1 |
| 30 | 4881440 |
Cable tie | 9 |
| 4821292 |
Cable tie | 7 | |
| 31 | |
Water separator | 1 |
| 32 | 13946752 |
Screw | 2 |
| 33 | 13971098 |
Flange nut | 2 |
