A40D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

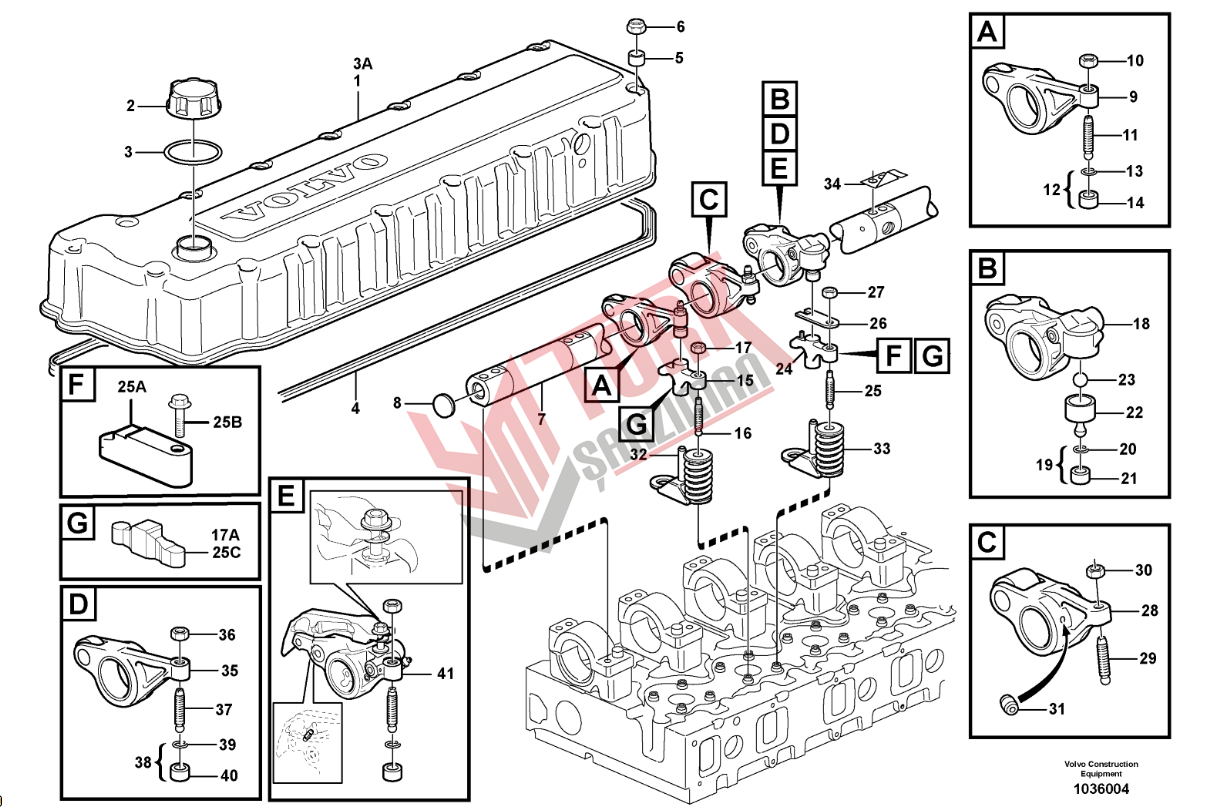

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 8130100 (8170115) |
Valve cover | 1 |
| 2 | 1675839 |
•Oil filler cap | 1 |
| 3 | 1675841 |
••Gasket | 1 |
| 3A | 20545676 |
Valve Cover | 1 |
| 20545676 |
Valve Cover | ||
| 4 | 21123014 (8170116) |
Sealing strip | 1 |
| 21123014 (21070576) |
Sealing strip | ||
| 5 | 3964604 |
Bushing | 16 |
| 6 | 8148488 |
Lock nut | 16 |
| 7 | 8170158 |
Rocker arm shaft | 1 |
| 8 | 980176 |
•Expansion plug | 2 |
| 9 | 21024794 (8148450) |
Rocker arm | 6 |
| 21024794 (20738717) |
Rocker arm | ||
| 10 | 13946911 |
•Nut | 6 |
| 11 | 1546458 |
•Ball stud | 6 |
| 12 | 20441753 |
•Ball socket | 6 |
| 13 | 944364 |
••O-ring | 6 |
| 14 | |
••Ball socket | 6 |
| 15 | 1547919 |
Yoke | 6 |
| 16 | 1543368 |
•Adjusting screw | 6 |
| 17 | 13946911 |
•Nut | 6 |
| 17A | 3183207 |
Valve cap | 6 |
| 3183207 |
Valve cap | ||
| 18 | 21132207 (8193970) |
Rocker Arm | 6 |
| 19 | 20441753 |
•Ball socket | 6 |
| 20 | 944364 |
••O-ring | 6 |
| 21 | 20441755 |
••Ball socket | 6 |
| 22 | |
•Piston | 6 |
| 23 | |
••Ball | 6 |
| 24 | 1547929 |
Valve cap | 6 |
| 25 | 1547924 |
•Adjusting screw | 6 |
| 25A | 20509561 |
Valve bridge | 6 |
| 20509561 |
Valve bridge | ||
| 25B | 13946670 |
Flange screw | 6 |
| 13946670 |
Flange screw | ||
| 25C | 3183207 |
Valve cap | |
| 26 | 1547967 |
Shim | REQ |
| 1547968 |
Shim | REQ | |
| 1547969 |
Shim | REQ | |
| 1547970 |
Shim | REQ | |
| 1547971 |
Shim | REQ | |
| 1547972 |
Shim | REQ | |
| 1547973 |
Shim | REQ | |
| 1547974 |
Shim | REQ | |
| 1547975 |
Shim | REQ | |
| 1547976 |
Shim | REQ | |
| 1547977 |
Shim | REQ | |
| 1547978 |
Shim | REQ | |
| 1547979 |
Shim | REQ | |
| 1547980 |
Shim | REQ | |
| 1547981 |
Shim | REQ | |
| 1547982 |
Shim | REQ | |
| 1547983 |
Shim | REQ | |
| 1547984 |
Shim | REQ | |
| 1677347 |
Shim | REQ | |
| 1677348 |
Shim | REQ | |
| 1677349 |
Shim | REQ | |
| 1677350 |
Shim | REQ | |
| 1677351 |
Shim | REQ | |
| 1677352 |
Shim | REQ | |
| 1677353 |
Shim | REQ | |
| 1677354 |
Shim | REQ | |
| 1677355 |
Shim | REQ | |
| 1677356 |
Shim | REQ | |
| 1677357 |
Shim | REQ | |
| 1677358 |
Shim | REQ | |
| 1677359 |
Shim | REQ | |
| 1677360 |
Shim | REQ | |
| 1677361 |
Shim | REQ | |
| 1677362 |
Shim | REQ | |
| 1677363 |
Shim | REQ | |
| 1677364 |
Shim | REQ | |
| 1677365 |
Shim | REQ | |
| 1677366 |
Shim | REQ | |
| 1677367 |
Shim | REQ | |
| 1677368 |
Shim | REQ | |
| 11712372 |
Shim kit | 1 | |
| 27 | 1677713 |
Flange nut | 6 |
| 28 | 21089229 (20738748) |
Rocker arm | 6 |
| 29 | 1546775 |
•Ball stud | 6 |
| 30 | 1677396 |
•Hexagon nut | 6 |
| 31 | 3964817 |
•Jet | 12 |
| 32 | |
Guide pin | 12 |
| 33 | |
Valve spring | 24 |
| 34 | 20570748 |
Leaf Spring | 6 |
| 35 | 21024789 (20738736) |
Rocker arm | 6 |
| 36 | 13946911 |
•Nut | 6 |
| 37 | 1546458 |
•Ball stud | 6 |
| 38 | 20441753 |
•Ball socket | 6 |
| 39 | 944364 |
••O-ring | 6 |
| 40 | |
••Ball socket | 6 |
| 41 | |
Rocker Arm | - |
