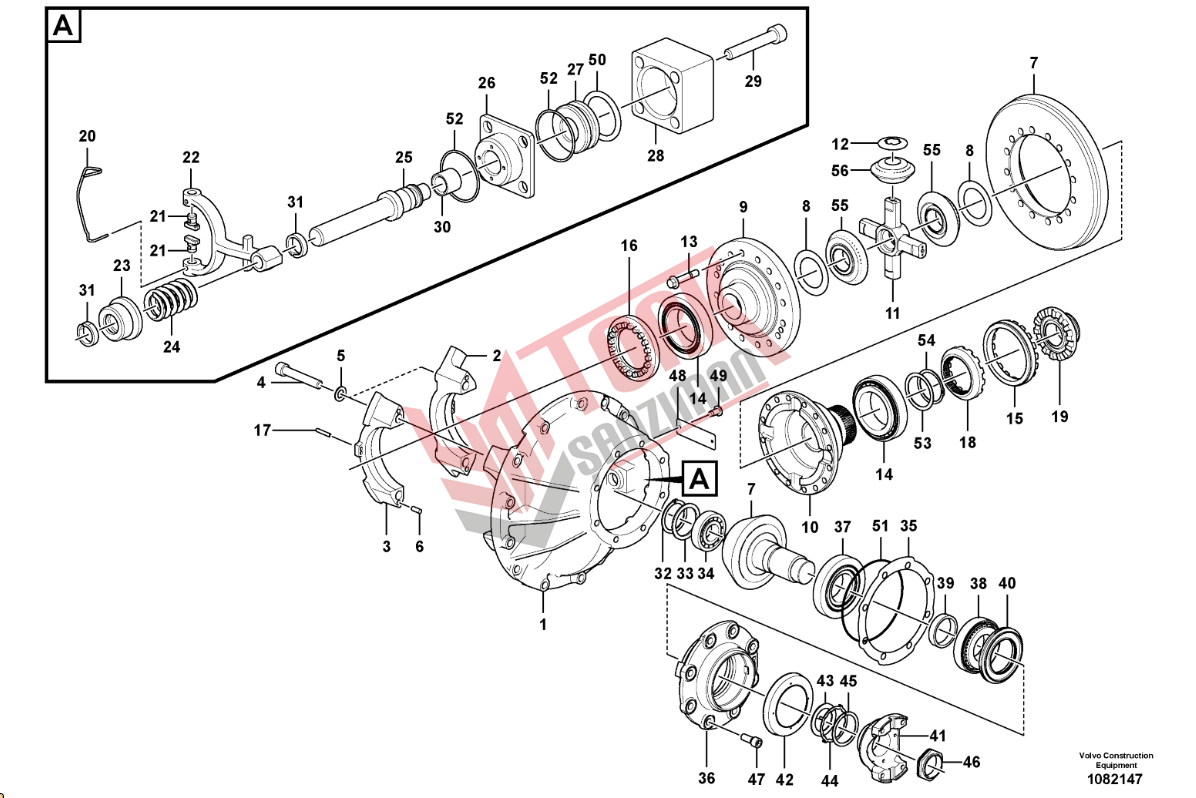

YM Güç Tork - 464/310 Final drive 56102 - A35G - A35G Volvo 340001-, 740001-, 840001-

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	17298350	Differential carrier	1
	17247607	•Centre housing	1
1		••Centre housing	1
2		••Cap	1
3		••Cap	1
4	966790	••Hex. socket screw	4
5		••Washer	4
6	950588	••Pin	4
7	17246478	Drive gear set	1
8	17245228	Thrust washer	2
9	17437279	Differential housing	1
10	17437430	Differential housing	1
11	17239952	Spider	1
12	17438016	Thrust washer	4
13	81241442	Flange screw	14
14	184637	Roller bearing	2
15	11102411	Bearing adjuster	1
16	17239358	Adjusting nut	1
17	951994	Spring pin	2
18	11102409	Companion flange	1
19	17247173	Dog clutch	1
20	1523372	Lock brace	1
21	1523087	Pin	2
22	17241744	Fork	1
23	17380348	Bushing	1
24	17245352	Spring	1
25	17241558	Piston	1
26	17245285	Cover	1
27	17246312	Piston head	1
28	17246273	Cover	1
29	967637	Hex. socket screw	4
30	17418789	Bushing	REQ
30	17420369	Bushing	REQ
30	17420370	Bushing	REQ
30	17420371	Bushing	REQ
30	17420372	Bushing	REQ
30	17420379	Bushing	REQ
30	17420380	Bushing	REQ
30	17420381	Bushing	REQ
30	17420382	Bushing	REQ
31	11168132	Guide ring	2
32	914470	Snap ring	1
33	13949851	Washer	1
34	183688	Roller bearing	1
35	17250318	Shim	REQ
35	17287236	Shim	REQ
35	17287237	Shim	REQ
35	17287238	Shim	REQ
36	17470257 (17239750)	Pinion bearing sleeve	1
37		Roller bearing	1
38	11035994	Roller bearing	1
39	17239263	Spacer sleeve	REQ
39	17286465	Spacer sleeve	REQ
39	17286466	Spacer sleeve	REQ
39	17286467	Spacer sleeve	REQ
39	17286468	Spacer sleeve	REQ
39	17286470	Spacer sleeve	REQ
39	17286472	Spacer sleeve	REQ
39	17286474	Spacer sleeve	REQ
39	17286476	Spacer sleeve	REQ
39	17286479	Spacer sleeve	REQ
39	17286480	Spacer sleeve	REQ
39	17286482	Spacer sleeve	REQ
39	17286484	Spacer sleeve	REQ
39	17286488	Spacer sleeve	REQ
39	17286490	Spacer sleeve	REQ
39	17286492	Spacer sleeve	REQ
39	17286494	Spacer sleeve	REQ
39	17286486	Spacer sleeve	REQ
40	17264219	Sealing ring	1
41	17251354	Companion flange	1
42		•Dust cover	1
43	1523317	Washer	1
44	1523318	Lock washer	REQ
44	1523319	Lock washer	REQ
45	914484	Snap ring	1
46	1522293	Nut	1
47	13968816	Allen Hd Screw	8
48		Sign	1
49	950891	Drive screw	2
50	17406753	O-ring
51	13949737	O-ring	1
52	983499	O-ring
53	1522102	Washer
54	945506	Snap ring
55	17240332	Differential side gear	2
56	17240333	Differential pinion	4
