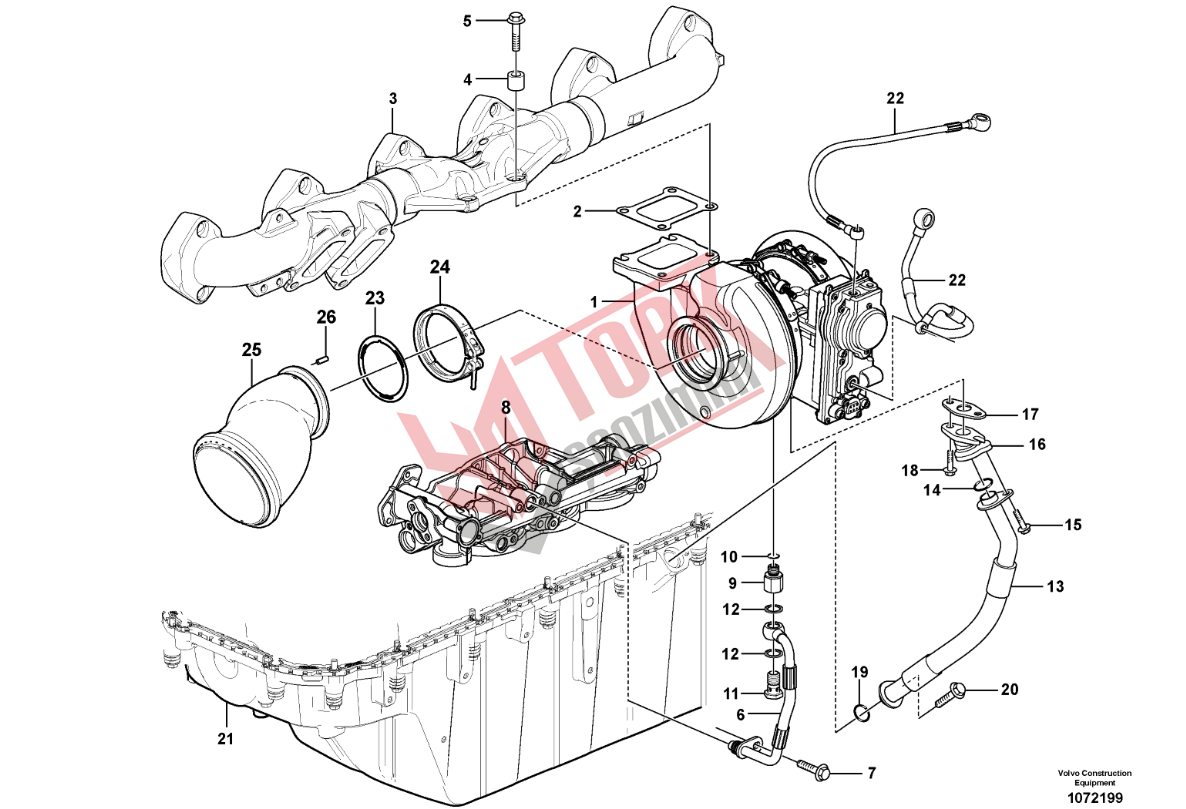

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 255/100 Turbocharger with fitting parts 15185560, 15185561
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 22233319 (21808904) |
Turbocharger | 1 |
| 2 | 20781146 |
Gasket | 1 |
| 3 | |
Exh Manifold | 1 |
| 4 | 20573472 |
Spacer sleeve | 4 |
| 5 | 993811 |
Flange screw | 4 |
| 6 | 15050575 |
Pressure hose | 1 |
| 21940610 |
•Sealing ring | 1 | |
| 7 | 994446 |
Flange screw | 1 |
| 8 | |
Oil Filter Hous | 1 |
| 9 | 15148031 |
Nipple | 1 |
| 10 | 984890 |
•O-ring | 1 |
| 11 | 941686 |
Hollow screw | 1 |
| 12 | 13947622 |
Plane gasket | 2 |
| 13 | 17212488 |
Oil hose | 1 |
| 14 | 21092243 |
Sealing ring | 1 |
| 15 | 984726 |
Flange screw | 1 |
| 16 | 15185344 |
Connector | 1 |
| 17 | 470993 |
Gasket | 1 |
| 18 | 994446 |
Flange screw | 2 |
| 19 | 21092243 |
Sealing ring | 1 |
| 20 | 984735 |
Flange screw | 1 |
| 21 | |
Oil Pan | 1 |
| 22 | |
Hose | 2 |
| 23 | 21007187 |
Gasket | 1 |
| 24 | 21545619 |
V-clamp | 1 |
| 25 | 17200364 |
Diffuser | 1 |
| 26 | 951940 |
•Spring pin | 1 |
| 21508269 (17413781) |
Sensor | 1 | |
| 21343037 |
Actuator service kit | 1 |
