A35G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

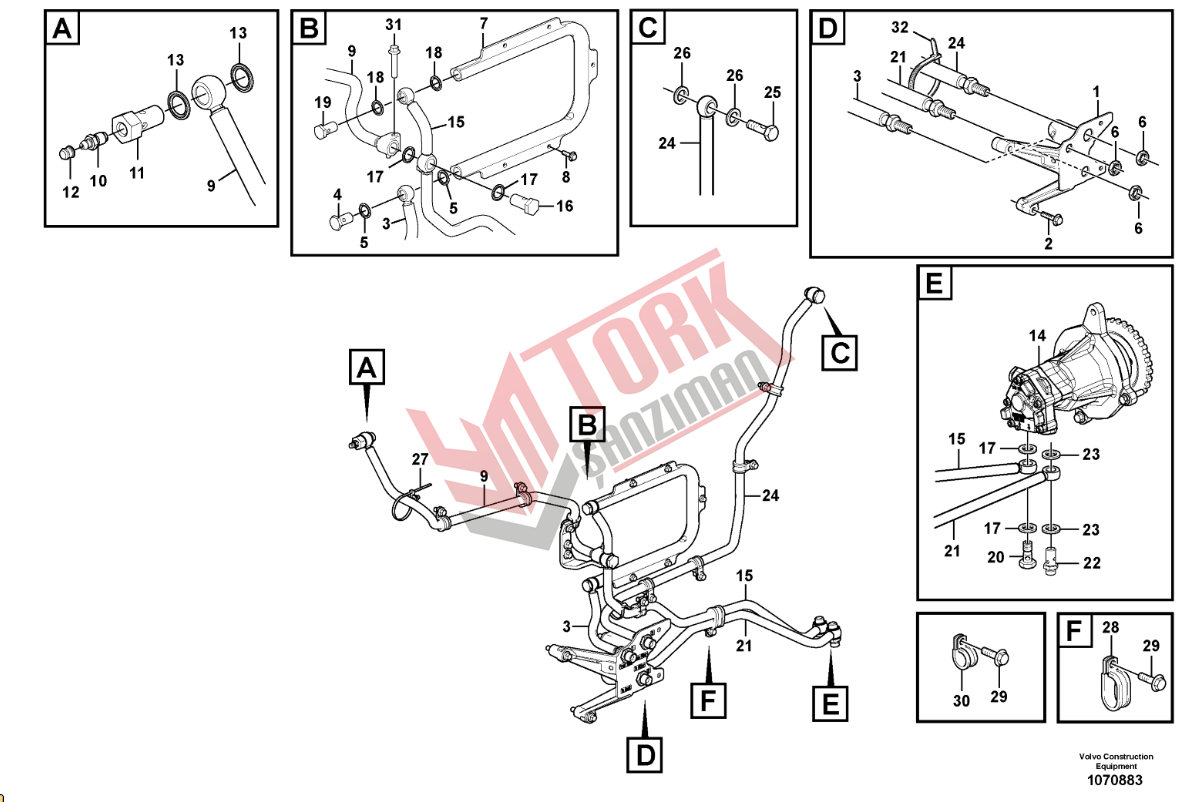

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Bracket | 1 |
| 2 | 984739 |
Flange screw | 3 |
| 3 | 17252569 |
Fuel pipe | 1 |
| 4 | 991048 |
•Hollow screw | 1 |
| 5 | 20852764 |
•Sealing ring | 2 |
| 6 | 957019 |
Hexagon nut | 3 |
| 7 | 17208196 |
Radiator | 1 |
| 8 | 60113518 (994258) |
Flange screw | 6 |
| 9 | 15197431 |
Fuel pipe | 1 |
| 10 | 20548012 |
•Nipple | 1 |
| 11 | 3595375 |
•Hollow screw | 1 |
| 12 | 20547976 |
•Cap | 1 |
| 13 | 20852765 |
•Sealing ring | 2 |
| 14 | |
Oil Drain Pump | 1 |
| 15 | 17415746 |
Fuel pipe | 1 |
| 16 | 21088049 |
•Overflow valve | 1 |
| 17 | 20852765 |
•Sealing ring | 4 |
| 18 | 20852764 |
•Sealing ring | 2 |
| 19 | 991048 |
•Hollow screw | 1 |
| 20 | 991046 |
•Hollow screw | 1 |
| 21 | 17252574 |
Fuel pipe | 1 |
| 22 | 991046 |
Hollow screw | 1 |
| 23 | 20852765 |
Sealing ring | 2 |
| 24 | 17252572 |
Fuel pipe | 1 |
| 25 | 991046 |
•Hollow screw | 1 |
| 26 | 20852765 |
•Sealing ring | 2 |
| 27 | 980881 |
Cable tie | 1 |
| 28 | 981664 |
Clamp | 1 |
| 29 | 984733 |
Flange screw | 12 |
| 30 | 949747 |
Clamp | 9 |
| 31 | 984738 |
Flange screw | 1 |
| 32 | 948211 |
Cable tie | 1 |
