A35G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

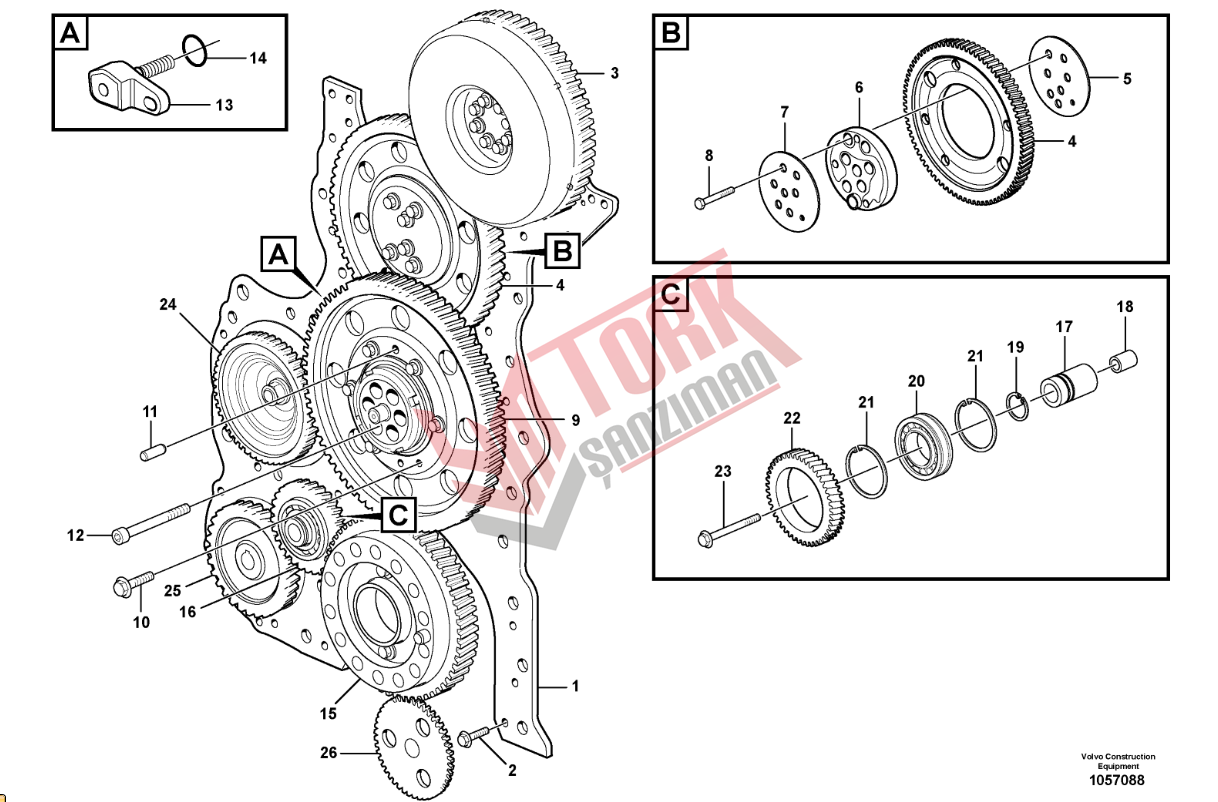

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 21892730 (21241959) |
Timing gear plate | 1 |
| 2 | 994447 |
Flange screw | 29 |
| 3 | |
Gear | 1 |
| 4 | 20850724 |
Idler gear | 1 |
| 5 | 20487667 |
Thrust washer | 1 |
| 6 | 20531647 |
Hub | 1 |
| 7 | 20487676 |
Bearing shield | 1 |
| 8 | 974615 |
Flange screw | 6 |
| 9 | 21430913 |
Idler gear | 1 |
| 10 | 471586 |
•Screw | 6 |
| 11 | 950564 |
•Pin | 2 |
| 12 | 20483919 |
Hex. socket screw | 6 |
| 13 | 22066002 |
Bracket | 1 |
| 14 | 943177 |
O-ring | 1 |
| 15 | |
Gear | 1 |
| 16 | 22081687 |
Idler gear | 1 |
| 17 | |
•Shaft | 1 |
| 18 | |
•Guide sleeve | 1 |
| 19 | 914465 |
•Snap ring | 1 |
| 20 | |
•Ball bearing | 1 |
| 21 | |
•Snap ring | 2 |
| 22 | |
•Idler gear | 1 |
| 23 | 21050240 |
Flange screw | 1 |
| 24 | 8131848 |
Gear | 1 |
| 25 | |
Gear | 1 |
| 26 | |
Oil Pump | 1 |
