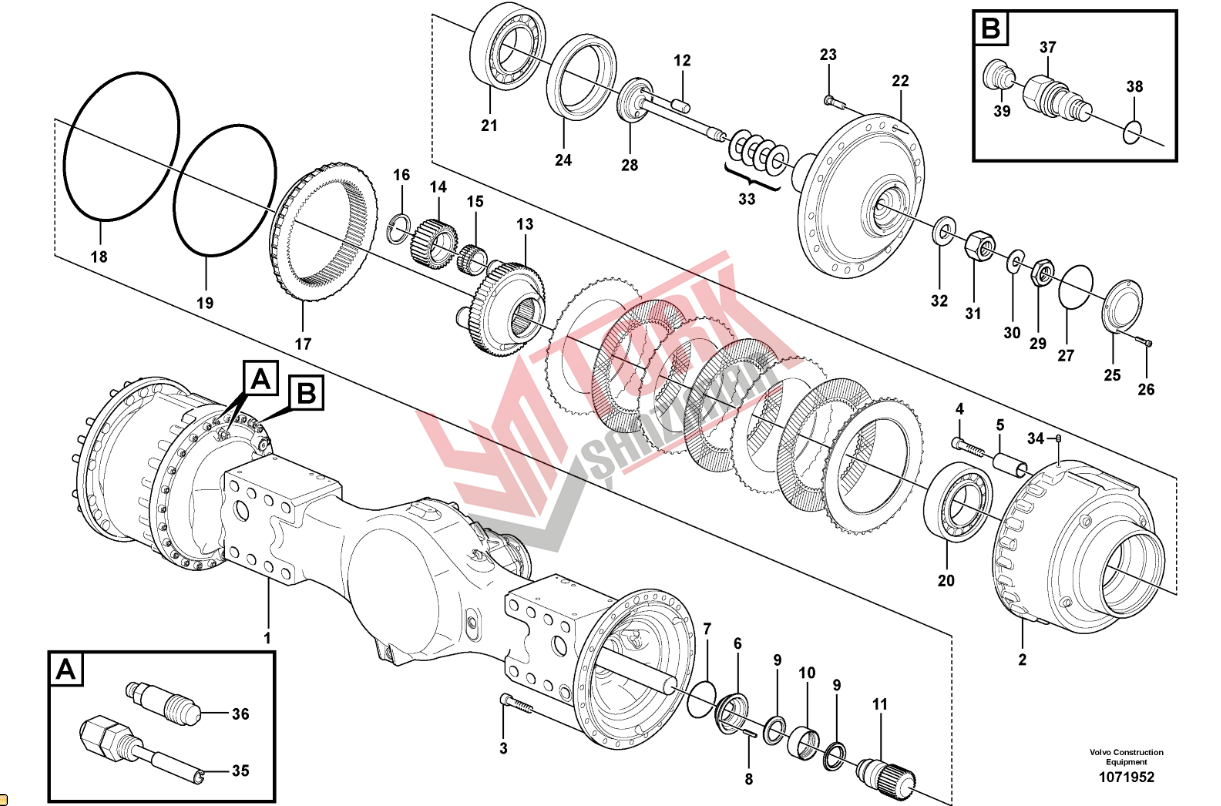

YM Güç Tork - 464/210 Hub reduction, axle 2 load unit 56102 - A35F

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	56105	Planet shaft	1
2	17216290 (11143357)	•Hub retainer	2
3	949544	•Hex. socket screw	48
4	13949252	•Allen Hd Screw	2
5	11143184	•Locating pin	2
6	15144849	•Retainer	2
7	976047	•O-ring	2
8	13951977	•Spring pin	2
9	11143271	•Sealing ring	2
10	15144848	•Intermediate ring	2
11	15114015	•Axle shaft	1
11	15114019	•Axle shaft	1
12	950675	•Pin	4
13	11143361	•Planet carrier	2
14	11143283	•Planet gear	8
15	11143297	•Roller bearing	8
16	914478	•Snap ring	8
17	17247051 (11143284)	•Gear ring	2
18	15145555	•O-ring	2
19	991044	•O-ring	2
20	11143330	•Bearing	2
21	11143329	•Bearing	2
22	15122421	•Hub	2
23	15107882	••Wheel stud	36
24	11143309	•Sealing ring	2
25	11143202	•Cover	2
26	967634	•Hex. socket screw	8
27	980827	•O-ring	2
28	11143282	•Lock bolt	2
29	11143307	•Nut	2
30	11143306	•Lock washer	2
31	11143392	•Nut	2
32	11143364	•Washer	2
33	11143291	•Shim	REQ
33	11143292	•Shim	REQ
33	11143293	•Shim	REQ
33	11143294	•Shim	REQ
34	11143108	•Plug	4
35	11143337	•Wear Indicator	2
36	15142951	•Bleeder nipple	2
37	15143043	•Sleeve	2
38	13976109	•O-ring	2
39	984655	•Plug	2
