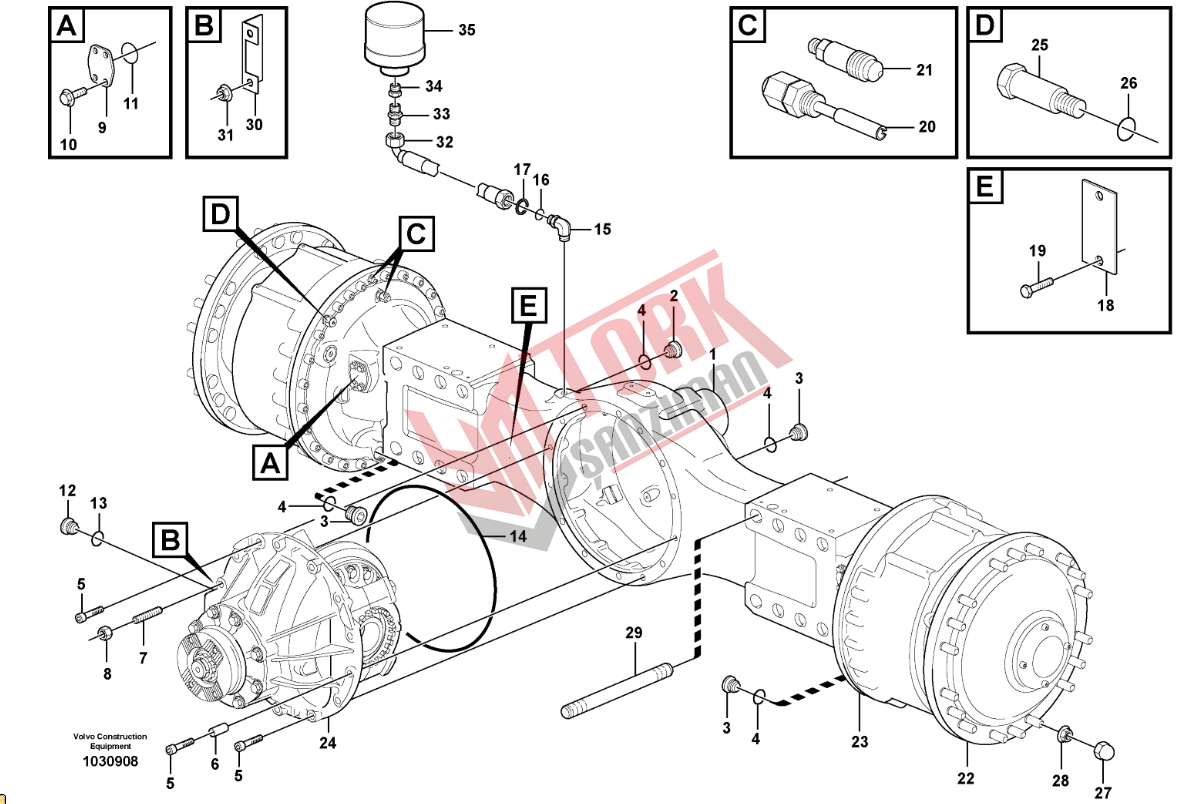

+90 552 671 32 12FRONT AXLE; REAR AXLE > 464/100 Planetary axle 2, load unit ARB/H35 PROD NO 23962
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23962 |
Planet shaft | 1 | |
| 1 | 11143265 |
•Axle casing | 1 |
| 2 | 11034156 |
•Plug | 1 |
| 3 | 11102187 |
•Magnetic plug | 1 |
| 4 | 958228 |
•O-ring | 2 |
| 5 | 949544 |
•Hex. socket screw | 12 |
| 6 | 11102959 |
•Spacer sleeve | 2 |
| 7 | 15044181 (11143391) |
•Stud | 2 |
| 8 | 997410 (979021) |
•Hexagon nut | 2 |
| 9 | 11037816 |
•Cover | 2 |
| 10 | 946471 |
•Flange screw | 8 |
| 11 | 949659 |
•O-ring | 2 |
| 12 | 960629 |
•Plug | 1 |
| 13 | 13947282 |
•Gasket | 1 |
| 14 | 993432 (992157) |
•O-ring | 1 |
| 15 | 931233 |
•Nipple | 1 |
| 16 | 931210 |
••O-ring | 1 |
| 17 | 931217 |
••Back-up ring | 1 |
| 18 | |
•Sign | 1 |
| 19 | 950891 |
•Drive screw | 2 |
| 20 | 11143337 |
•Wear Indicator | 2 |
| 21 | 15142951 (11143326) |
•Bleeder nipple | 2 |
| 22 | |
•Planetary gear | 2 |
| 23 | |
•Brake | 4 |
| 24 | |
•Final drive | 1 |
| 25 | 15143043 (11143084) |
•Sleeve | 2 |
| 26 | 13976109 |
•O-ring | 2 |
| 27 | 11100354 |
•Nut cap | 36 |
| 28 | 947972 |
•Wheel nut | 36 |
| 29 | |
Stud | 16 |
| 30 | |
Protecting plate | 1 |
| 31 | 13968904 |
Flange nut | 2 |
| 32 | 13933676 |
Hose assembly | 1 |
| 32 | 15017724 |
Hose assembly | 1 |
| 33 | 929280 |
Nipple | 1 |
| 34 | 11055905 |
Nipple | 1 |
| 35 | 11172907 |
Air filter | 1 |
