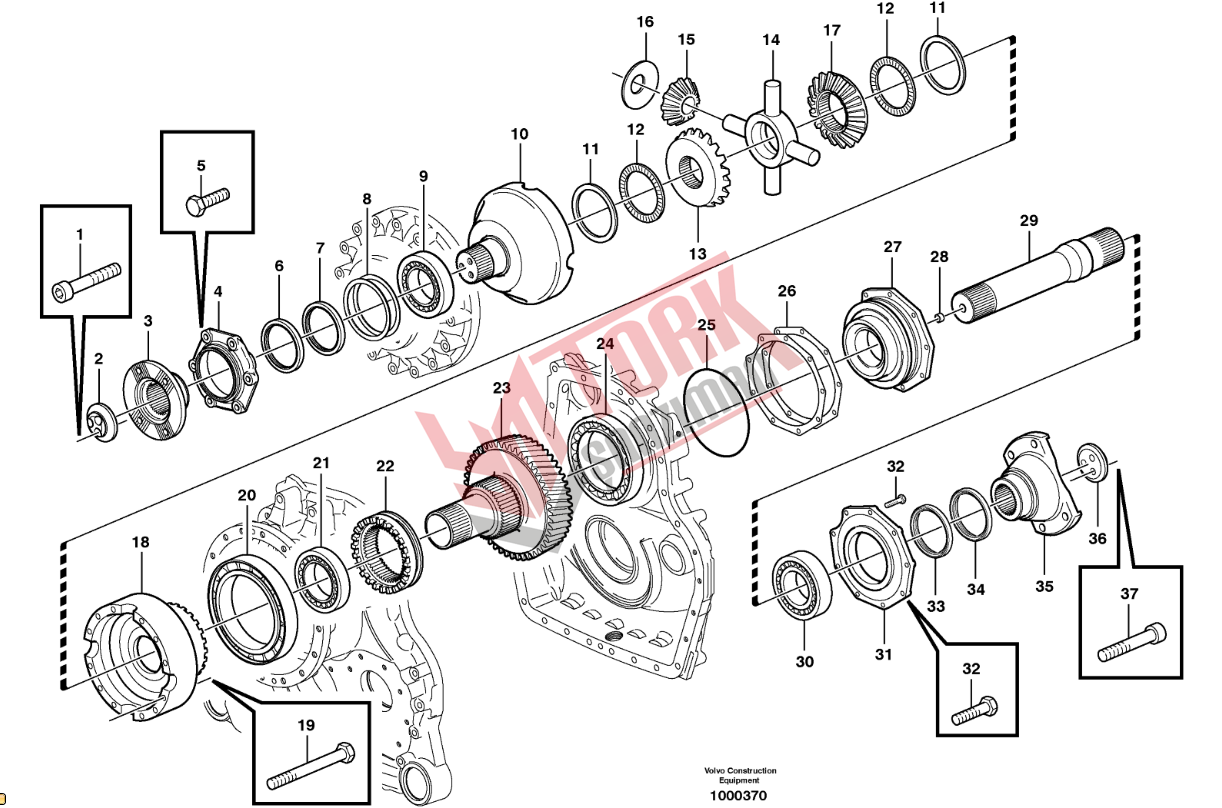

YM Güç Tork - 434/200 Axle shaft with differential 22568, 22569 - A35E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	969223	Hex. socket screw	3
2	11144135	Washer	1
3	11145300	Companion flange	1
4	11144229	Bearing cover	1
5	13970970	Hexagon screw	6
6	11144171	Sealing ring	1
7	11716737 (11144170)	Sealing ring	1
8	11144232	Shim	REQ
	11144233	Shim	REQ
	11144234	Shim	REQ
	11144235	Shim	REQ
	11144236	Shim	REQ
	11716738 (11144237)	Shim	REQ
	11144238	Shim	REQ
	11144239	Shim	REQ
9	7011067	Roller bearing	1
10	11144121	Differential housing	1
11	11144144	Bearing washer	2
12	11144145	Needle bearing	2
13	11144127	Differential side gear	1
14	11144130	Spider	1
15	11144129	Differential side gear	4
16	11144131	Thrust washer	4
17	11144128	Differential side gear	1
18	11145291	Housing	1
18	11145310	Differential housing	1
19	13979275	Hexagon screw	12
20	11144147	Roller bearing	1
21	6210074 (184624)	Roller bearing	1
22	11144262	Engaging sleeve	1
22	11145309	Dog clutch	1
23	11144123	Gear	1
24	11144149	Roller bearing	1
25	11419519	O-ring	1
26	11144136	Shim	REQ
	11144137	Shim	REQ
	11144138	Shim	REQ
	11144139	Shim	REQ
	11144140	Shim	REQ
	11144141	Shim	REQ
	11144142	Shim	REQ
	11144143	Shim	REQ
27	11144103	Bearing support	1
28	11144228	Cap plug	1
29	11144125	Shaft	1
30	11144240	Roller bearing	1
31	11144102	Bearing cover	1
32	13970973	Hexagon screw	9
33	11716737 (11144170)	Sealing ring	1
34	11144171	Sealing ring	1
35	11145301	Companion flange	1
36	11144135	Washer	1
37	969223	Hex. socket screw	3
