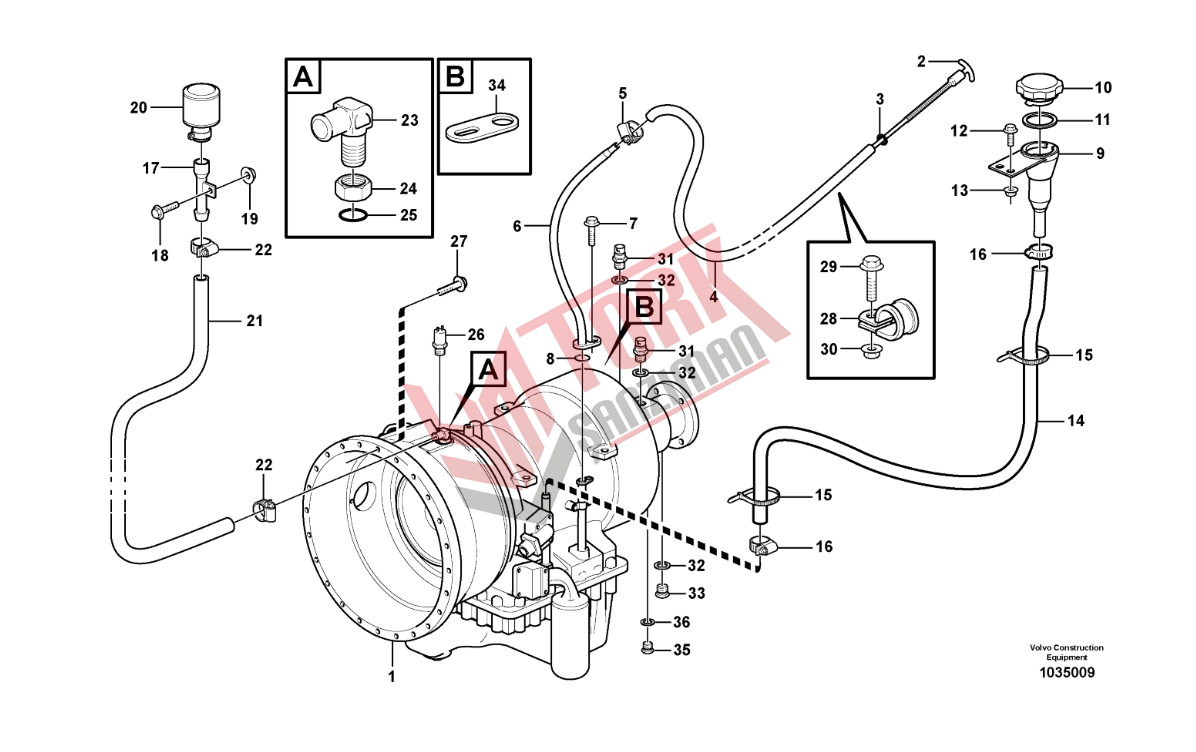

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 420/100 Power transmission 22401, 22671 PT 2509, 22418 PT 2519
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 22671 |
Transmission | 1 |
| |
•Trq Converter | ||
| 1 | 22418 (22401) |
Transmission | 1 |
| |
•Trq converter | ||
| 1 | 22418 |
Transmission | 1 |
| |
•Trq converter | ||
| 2 | 15010538 |
Dipstick | 1 |
| 3 | 421723 |
•Seal | 1 |
| 4 | 11196571 |
Plastic pipe | 1 |
| 5 | 943470 |
Hose clamp | 1 |
| 6 | 11196815 |
Oil pipe | 1 |
| 7 | 13946173 |
Screw | 2 |
| 8 | 925057 |
O-ring | 1 |
| 9 | 11114129 |
Oil filler pipe | 1 |
| 10 | 421753 |
Filler cap | 1 |
| 11 | 1275379 (940096) |
Gasket | 1 |
| 12 | 13946173 |
Screw | 2 |
| 13 | 948645 |
Flange lock nut | 2 |
| 14 | 992109 |
Hose | REQ |
| 15 | 4881440 |
Cable tie | 2 |
| 16 | 943474 |
Hose clamp | 2 |
| 17 | 11057015 |
Filter retainer | 1 |
| 18 | 946329 |
Flange screw | 1 |
| 19 | 13971098 |
Flange nut | 1 |
| 20 | 11172907 (8152009) |
Air filter | 1 |
| 21 | 992109 |
Hose | REQ |
| 22 | 943474 |
Hose clamp | 2 |
| 23 | 6775550 |
Fitting | 1 |
| 24 | 945895 |
Hexagon nut | 1 |
| 25 | 13949656 |
O-ring | 1 |
| 26 | 11039376 |
Tachometer sensor | 1 |
| 27 | 13965196 |
Screw | 24 |
| 28 | 952629 |
Clamp | 1 |
| 29 | 13946544 |
Screw | 1 |
| 30 | 13949278 |
Flange lock nut | 1 |
| 31 | 11418080 |
Sensor | 2 |
| 32 | 1650502 |
Gasket | 3 |
| 33 | 13960632 |
Plug | 1 |
| 34 | 13965536 |
Bracket | 1 |
| 35 | 926370 |
Plug | 1 |
| 36 | 968562 |
O-ring | 1 |
