A35E

Hemen bizi arayın yardımcı olalım

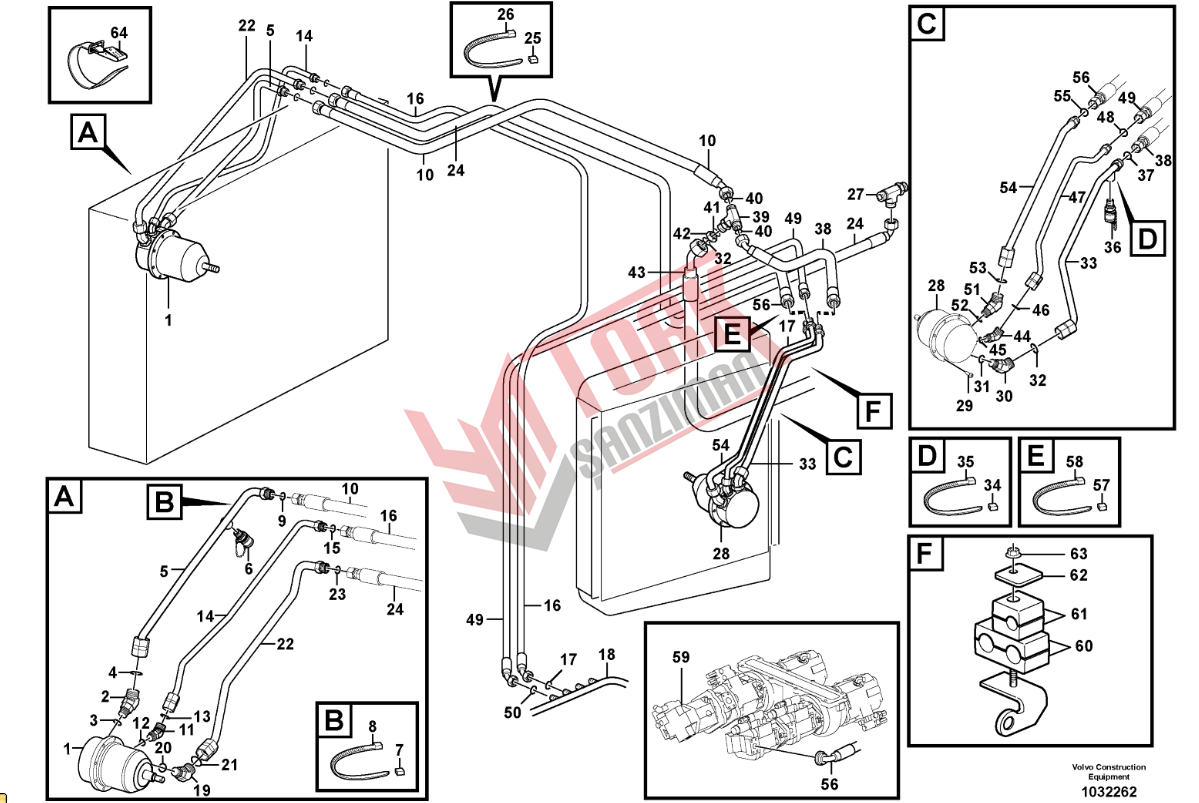

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Hydraulic motor	1
2	935787	Elbow nipple	1
3	14211863	•Sealing ring	1
4	990739 (4880663)	•O-ring	1
5	11192872	Tube	1
6	936444	Testing nipple	1
7	11120675	Marking sleeve	1
8	4821292	Cable tie	1
9	990738	O-ring	1
10	938061	Hose assembly	1
11	935786	Elbow nipple	1
12	14211856	•Sealing ring	1
13	990738	•O-ring	1
14	11192876	Tube	1
15	990737	O-ring	1
16	938068	Hose assembly	1
17	990737	O-ring	1
18		Tube	1
19	935787	Elbow nipple	1
20	14211863	•Sealing ring	1
21	990739	•O-ring	1
22	11192874	Tube	1
23	990738	O-ring	1
24	938014	Hose assembly	1
25	11120675	Marking sleeve	2
26	4821292	Cable tie	2
27		T-nipple	1
28		Hydraulic motor	1
29	969147	Six point socket screw	8
30	935787	Elbow nipple	1
31	14211863	•Sealing ring	1
32	990739	•O-ring	1
33	11195616	Tube	1
34	11120675	Marking sleeve	1
35	4821292	Cable tie	1
36	936444	Testing nipple	1
37	990738	O-ring	1
38	938060	Hose assembly	1
39	935610	T-nipple	1
40	990738 (4880493)	•O-ring	2
41	990740	•O-ring	1
42	935286	Lock nut	1
43		Hose assembly	1
44	935786	Elbow nipple	1
45	14211856	•Sealing ring	1
46	990738	•O-ring	1
47	11195620	Tube	1
48	990737	O-ring	1
49	937136	Hose assembly	1
50	990737	O-ring	1
51	935787	Elbow nipple	1
52	14211863	•Sealing ring	1
53	990739	•O-ring	1
54	11195618	Tube	1
55	990738	O-ring	1
56	938013	Hose assembly	1
57	11120675	Marking sleeve	2
58	4821292	Cable tie	2
59		Hydraulic Pump	1
60	4880573	Clamp	2
61	11116118	Clamp	2
62	11116120	Cover plate	2
63	13949278	Flange lock nut	2
64	11104606	Retaining strap	REQ
