A35E
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım

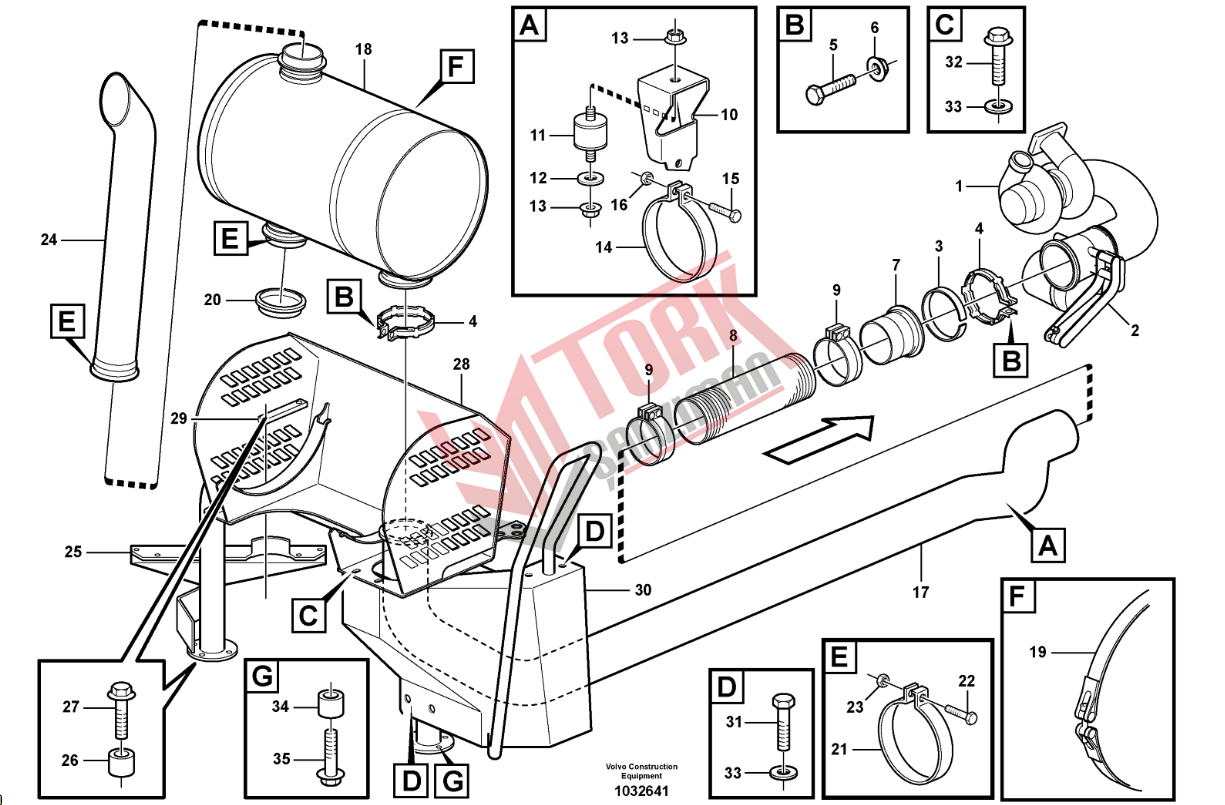

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 252/100 Exhaust system, silencer 37136, 81391, 84543, 84544
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Turbocharger | 1 |
| 2 | |
Exhaust brake | 1 |
| 3 | 1638168 |
Ring | 1 |
| 4 | 1629499 |
V-clamp | 2 |
| 5 | 13965185 |
Screw | 2 |
| 6 | 13971098 |
Flange nut | 2 |
| 7 | 11113275 |
Exhaust pipe | 1 |
| 8 | 11051132 |
Exhaust pipe | 1 |
| 9 | 20455908 |
Exhaust pipe clamp | 2 |
| 10 | 11198102 |
Anchorage | 1 |
| 11 | 11110276 |
Rubber cushion | 1 |
| 12 | 11053667 |
Gasket | 1 |
| 13 | 971096 |
Flange nut | 2 |
| 14 | 1135139 |
Clamp | 1 |
| 15 | 13947760 |
Screw | 1 |
| 16 | 948645 |
Flange lock nut | 1 |
| 17 | 11193743 |
Exhaust pipe | 1 |
| 18 | 15015148 |
Silencer | 1 |
| 19 | 11050442 |
Clamp | 2 |
| 20 | 11060999 |
Cover | 1 |
| 21 | 1624612 |
Clamp | 2 |
| 22 | 11121312 |
Screw | 2 |
| 23 | 948645 |
Flange lock nut | 2 |
| 24 | 11059317 |
Tube | 1 |
| 11198284 |
Tube | ||
| 25 | 15114940 |
Bow | 1 |
| 26 | 4861316 |
Spacer ring | 8 |
| 27 | 13965193 |
Screw | 8 |
| 28 | 15010081 |
Bracket | 1 |
| 29 | 11064848 |
Plate | 1 |
| 30 | 15081199 |
Protecting plate | 1 |
| 31 | 13965186 |
Screw | 2 |
| 31 | 13965186 |
Screw | |
| 32 | 946472 |
Flange screw | 2 |
| 33 | 930842 (13930842) |
Plain washer | 4 |
| 33 | 930842 (13930842) |
Plain washer | |
| 34 | 4861316 |
Spacer ring | 4 |
| 35 | 965195 |
Flange screw | 4 |
