A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

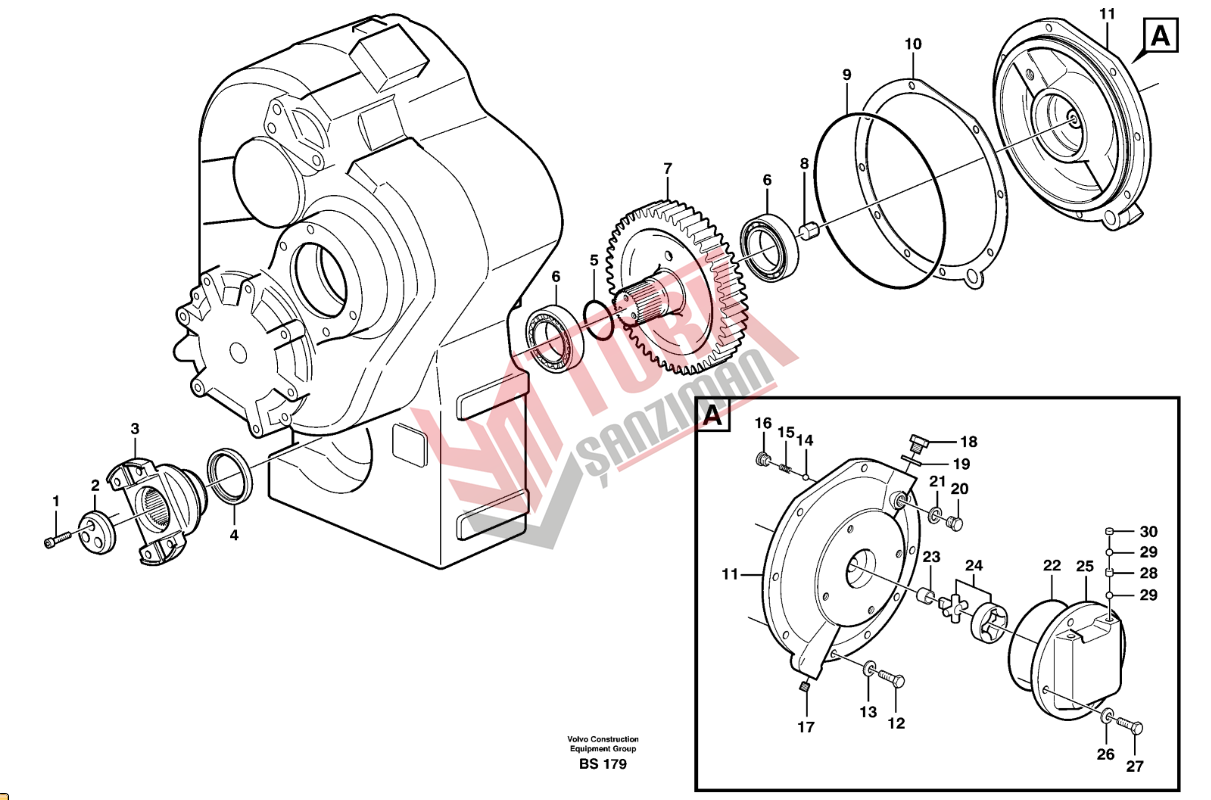

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 13968056 |
Screw | 3 |
| 2 | 11056247 |
Washer | 1 |
| 2 | 11036863 |
Washer | |
| 3 | 11036725 |
Companion flange | 1 |
| 3 | 15053466 (11145721) |
Companion flange | |
| 3 | 115053466 |
Comp Flange | |
| 4 | 4880627 |
Sealing ring | 1 |
| 4 | 15053734 (11038338) |
Sealing ring | |
| 1523124 |
Sealing ring | ||
| 4 | 15053734 |
Sealing ring | |
| 5 | 925071 |
O-ring | 1 |
| 6 | 11700197 |
Roller bearing | 2 |
| 6 | 7183418 |
Bearing | |
| 7 | 11038159 |
Gear | 1 |
| 7 | 11145819 |
Gear | |
| 8 | 4837096 |
•Follower | 1 |
| 9 | 968313 |
O-ring | 1 |
| 10 | 11036787 |
Shim | REQ |
| 10 | 11036788 |
Shim | REQ |
| 10 | 11036789 |
Shim | REQ |
| 11 | 11038112 |
Bearing carrier | 1 |
| 11 | 11145459 |
Bearing carrier | |
| 12 | 13970948 |
Hexagon screw | 9 |
| 13 | 941908 |
Spring washer | 9 |
| 14 | 7000205 |
Ball | 1 |
| 15 | 1656500 |
Compression spring | 1 |
| 16 | 11037729 |
Spring stop | 1 |
| 17 | 11036158 |
Plug | 1 |
| 17 | 192619 |
Ball | |
| 18 | 929359 |
Plug | 1 |
| 18 | 13960634 |
Plug | |
| 19 | 13947624 |
Plane gasket | 1 |
| 19 | 13947627 |
Plane gasket | |
| 20 | 13960632 |
Plug | 1 |
| 21 | 947626 |
Gasket | 1 |
| 22 | 13949736 |
O-ring | 1 |
| 23 | 943959 |
Bearing bushing | 1 |
| 24 | 11038156 |
Pump unit | 1 |
| 4778347 |
•Rotor kit | 1 | |
| 25 | 11145525 (11038133) |
Valve Plate | 1 |
| 25 | 11145525 |
Valve Plate | |
| 26 | 13941907 |
Washer | 4 |
| 27 | 955297 |
Hexagon screw | 4 |
| 27 | 13945444 |
Screw | |
| 28 | 11036528 |
Valve seat | 2 |
| 29 | 192619 |
Ball | 4 |
| 30 | 13946779 |
Cap plug | 2 |
