A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

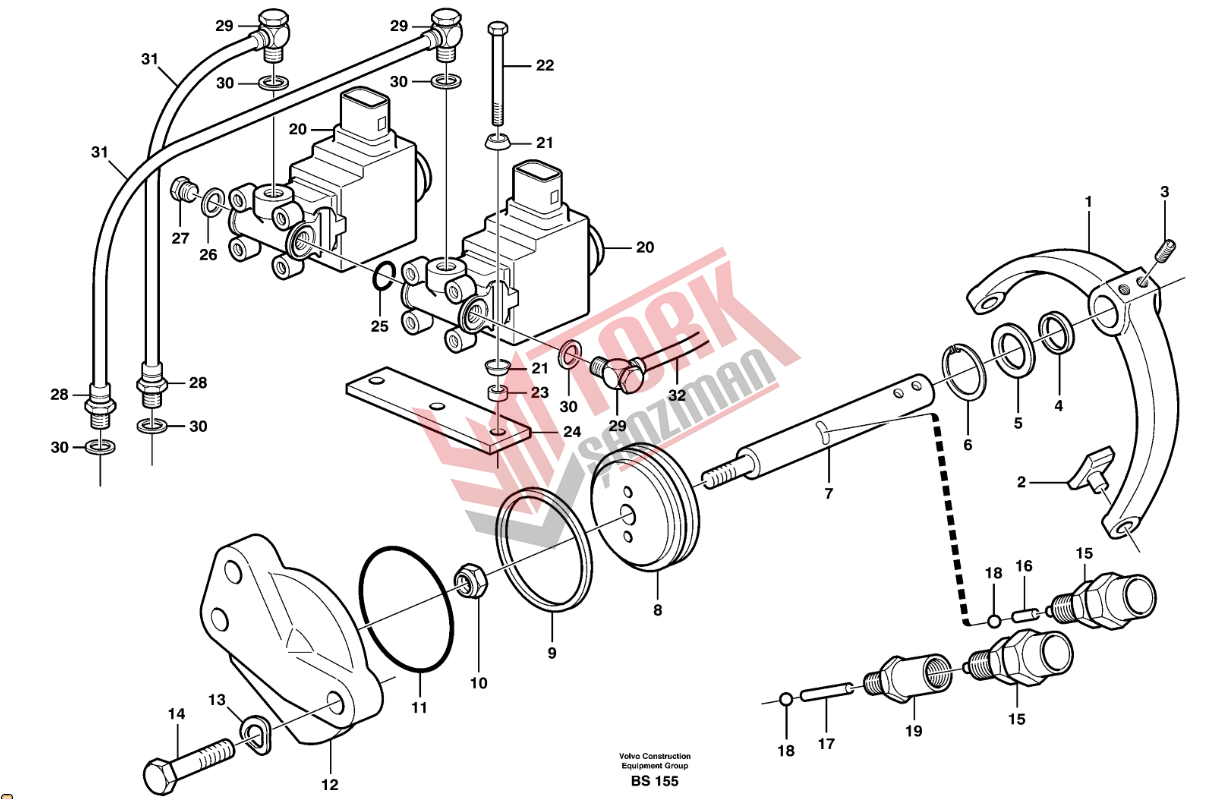

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11037489 |
Selector fork | 1 |
| 2 | 382565 |
Pin | 2 |
| 3 | 1655797 |
Set screw | 2 |
| 4 | 11037986 |
Sealing ring | 1 |
| 5 | 4837054 |
Washer | 1 |
| 6 | 914523 |
Retaining ring | 1 |
| 7 | 11037488 |
Selector rail | 1 |
11145882 |
Shaft | ||
| 8 | 4837068 |
Piston | 1 |
| 9 | 11037789 |
Piston seal | 1 |
| 10 | 13971084 |
Lock nut | 1 |
| 11 | 925256 |
O-ring | 1 |
| 12 | 11038290 |
Cover | 1 |
| 13 | 941912 |
Spring washer | 1 |
| 14 | 13955366 |
Screw | 1 |
| 15 | 3962939 |
Contact | 2 |
| 16 | 11145213 |
Pin | 1 |
| 17 | 11145212 (11038323) |
Pin | 1 |
| 18 | 6211276 |
Ball | 2 |
| 19 | 11038322 |
Adapter | 1 |
| 20 | 8158342 |
Solenoid valve | 2 |
| 1078316 |
Solenoid valve | ||
| 21 | 1589391 |
Washer | 6 |
| 22 | 955277 |
Hexagon screw | 1 |
| 13965176 |
Screw | 3 | |
| 23 | 930416 |
Spacer ring | 3 |
| 24 | 11038291 |
Plate | 1 |
| 25 | 1587176 |
O-ring | 1 |
| 26 | 945897 |
Gasket | 1 |
| 27 | 960629 |
Plug | 1 |
| 28 | 11062357 |
Fitting | 2 |
| 29 | 6626873 |
Fitting | 3 |
| 957175 |
•Gasket | 2 | |
| 30 | 13947282 |
Gasket | 5 |
| 31 | 13945460 |
Plastic pipe | REQ |
| 32 | 13945460 |
Plastic pipe | - |
