A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

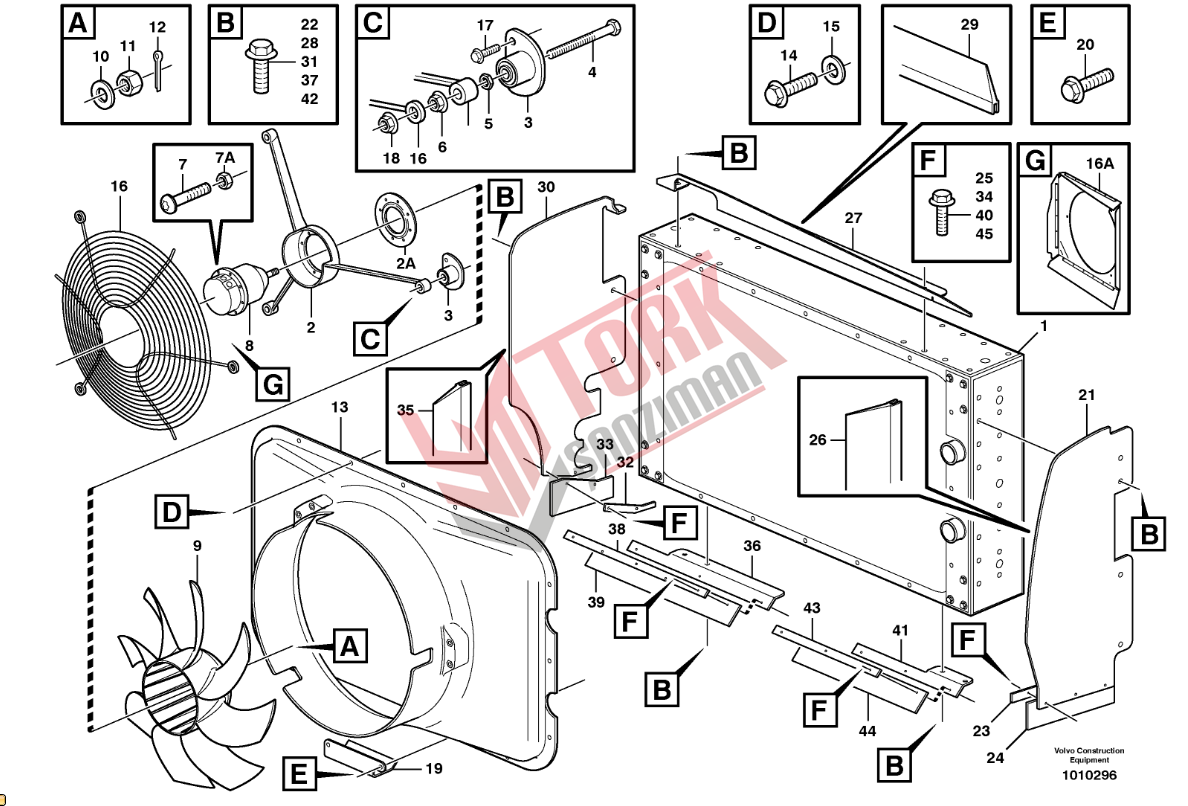

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Radiator | |
| 2 | 11119401 |
Engine bracket | 1 |
| 11193253 |
Fan motor retainer | 1 | |
| 11192979 |
Fan motor retainer | 1 | |
| 2A | 11191163 |
Plate | 1 |
| 3 | 11059269 |
Rubber element | 3 |
| 4 | 975573 |
Hexagon screw | 3 |
| 5 | 971081 |
Hexagon nut | 3 |
| 930842 (11055606) |
Plain washer | 3 | |
| 6 | 971096 |
Flange nut | 3 |
| 11055613 |
Plain washer | 3 | |
| 7 | 969147 |
Six point socket screw | 8 |
| 969587 |
Six point socket screw | 8 | |
| 7A | 13949278 |
Flange lock nut | 4 |
| 8 | |
Hydraulic motor | 1 |
| 9 | 11193183 (11121500) |
Fan | 1 |
| 11193183 |
Fan | 1 | |
| 10 | 13955897 (11050693) |
Washer | 1 |
| 11 | 961294 |
Castle nut | 1 |
| 971099 |
Flange lock nut | 1 | |
| 12 | 907847 |
Split pin | 1 |
| 13 | 11192805 (11064402) |
Fan shroud | 1 |
| 11191510 |
Cover | 1 | |
| 11192805 |
Fan shroud | 1 | |
| 11192943 |
Cover | 1 | |
| 14 | 946441 |
Flange screw | 14 |
| 946329 |
Flange screw | 16 | |
| 15 | 13960143 |
Washer | 20 |
| 13960143 |
Washer | 28 | |
| 16 | 11191835 (11117500) |
Fan Protector | 1 |
| 11191835 |
Fan Protector | 1 | |
| 11192980 |
Fan Protector | 1 | |
| 16A | 11193129 |
Shield Plate | 1 |
| 17 | 946470 |
Flange screw | 6 |
| 13947760 |
Screw | 6 | |
| 11055605 |
Plain washer | 6 | |
| 18 | 971099 (13971099) |
Flange lock nut | 4 |
| 13965186 |
Screw | 3 | |
13971098 |
Flange nut | 4 | |
| 953082 |
Stud | 4 | |
| 953083 |
Stud | 4 | |
| 19 | 11118689 |
Plate | 1 |
| 20 | 946329 |
Flange screw | 2 |
| 21 | 11117106 |
Plate | 1 |
| 22 | 946471 |
Flange screw | 4 |
| 23 | 11115918 |
Plate | 1 |
| 24 | 11115919 |
Rubber cloth | 1 |
| 25 | 972081 (13972081) |
Six point socket screw | 3 |
| 26 | 11115930 |
Rubber moulding | 1 |
| 27 | 11115920 |
Plate | 1 |
| 28 | 946471 |
Flange screw | 3 |
| 29 | 11115931 |
Rubber moulding | 1 |
| 30 | 11115921 |
Plate | 1 |
| 31 | 946471 |
Flange screw | 3 |
| 32 | 11115922 |
Plate | 1 |
| 33 | 11115923 |
Rubber cloth | 1 |
| 34 | 972081 (13972081) |
Six point socket screw | 2 |
| 35 | 11115930 |
Rubber moulding | 1 |
| 36 | |
Plate | 1 |
| 37 | 13946670 |
Flange screw | 2 |
| 38 | 11115996 |
Plate | 1 |
| 39 | 11115995 |
Rubber cloth | 1 |
| 40 | 972081 |
Six point socket screw | 3 |
| 41 | 11117103 |
Plate | 1 |
| 42 | 13946670 |
Flange screw | 2 |
| 43 | 11117104 |
Plate | 1 |
| 44 | 11117105 |
Rubber cloth | 1 |
| 45 | 972081 (13972081) |
Six point socket screw | 3 |
