A35D

Hemen bizi arayın yardımcı olalım

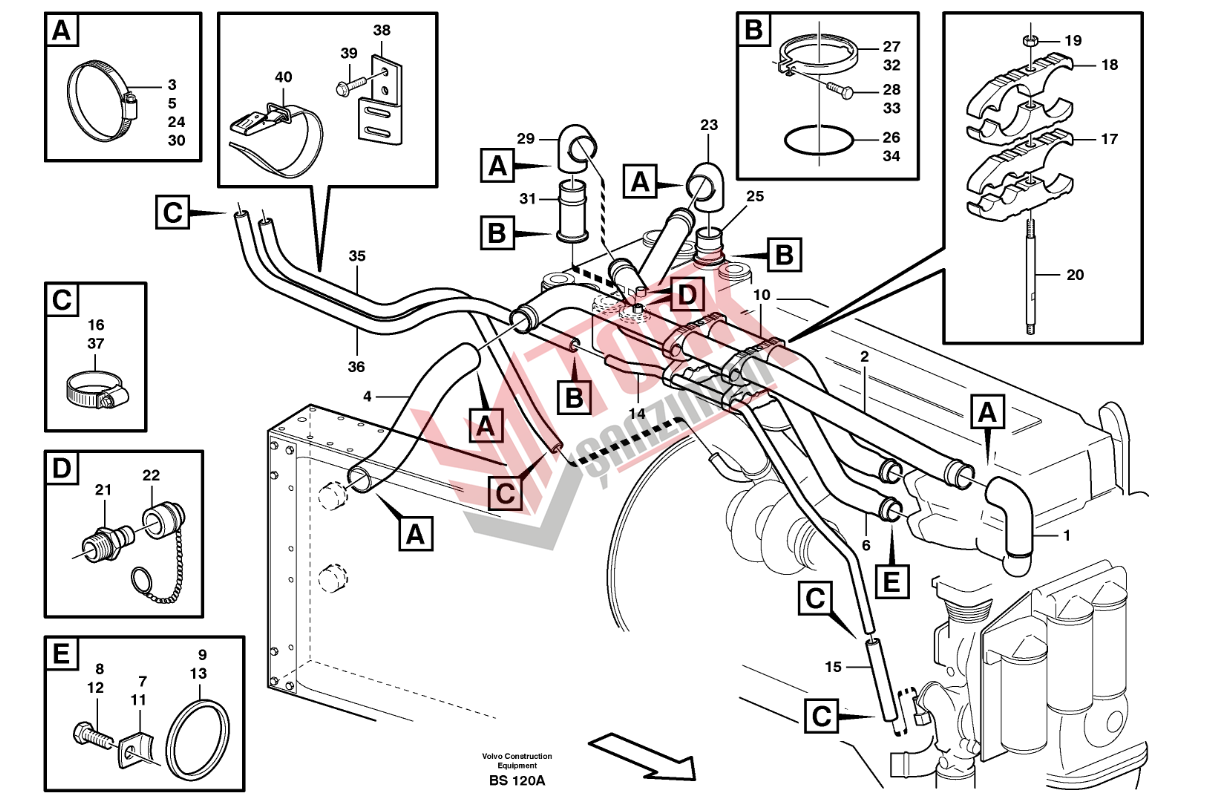

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	11112974	Radiator hose	1
2	11115101	Pipe	1
	11193121	Pipe	1
3	11059298	Hose clamp	2
4	11112975	Radiator hose	1
	11193122	Radiator hose	1
5	11059298	Hose clamp	2
6	11112953	Pipe	1
	11196579	Water pipe	1
7	1546532	Lock	1
8	13946173	Screw	1
9	1547254	Sealing ring	1
10	11112959	Pin	1
	11118703	Tube	1
	11196578	Water pipe	1
11	1546532	Lock	1
12	13946173	Screw	1
13	1547254	Sealing ring	1
14	11115127	Pipe	1
	11193162	Pipe	1
15	969033	Hose	REQ
16	13943474	Hose clamp	2
17	15123909 (11115100)	Clamp	4
18	11115099	Clamp	4
19	13971095	Flange nut	2
20	11064417	Bar	2
21	11423133	Nipple	2
22	11194108 (4881340)	Protecting sleeve	2
	11194108	Protecting sleeve	2
23	11061686	Radiator hose	1
24	11059298	Hose clamp	2
25	11112955	Pipe	1
26	11445263	O-ring	1
27	1542778	V-clamp	1
28	13948356	Flange screw	1
29	11061686	Radiator hose	1
30	11059298	Hose clamp	2
31	11112957	Pipe	1
32	1542778	V-clamp	1
33	13948356	Flange screw	1
34	11445263	O-ring	1
35	969033	Hose	REQ
	11192391	Insulation	REQ
36	969033	Hose	REQ
	11192391	Insulation	REQ
37	13943474	Hose clamp	4
38		Bracket	1
39	13946173	Screw	2
40	11104606	Retaining strap	1
