A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

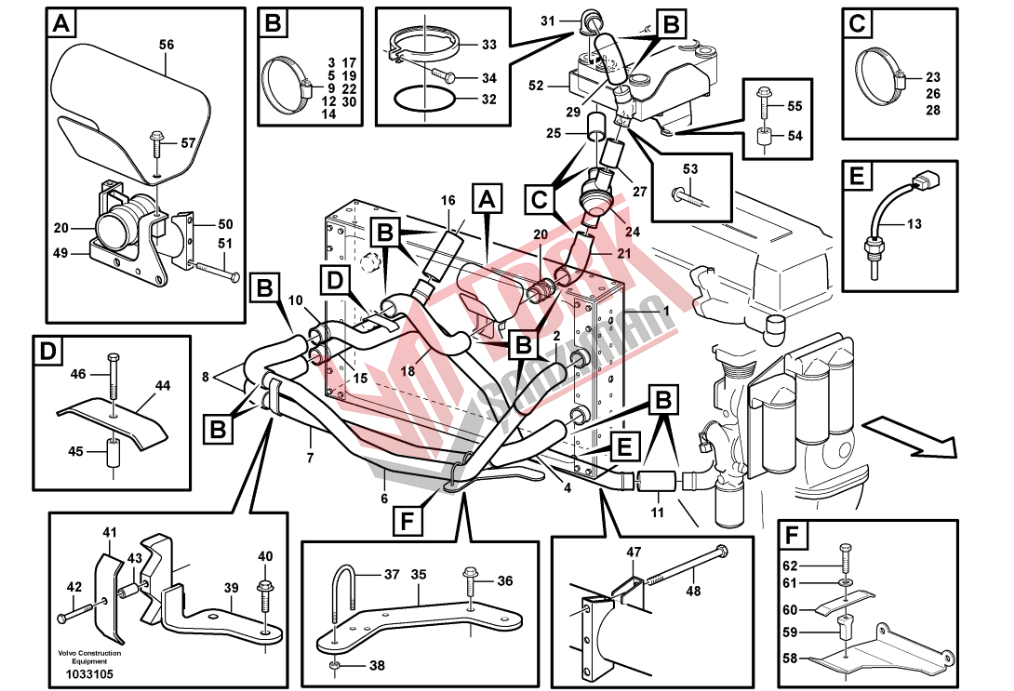

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11191914 (11115954) |
Radiator | 1 |
| 17217014 |
•Rubber moulding | 4 | |
| 11191914 |
Radiator | 1 | |
| 17217014 |
•Rubber moulding | 4 | |
| 11192942 |
Radiator | 1 | |
| 15020893 (11196422) |
Radiator | 1 | |
| 2 | 11061686 |
Radiator hose | 1 |
| 3 | 11059298 |
Hose clamp | 2 |
| 4 | 4775509 |
Radiator hose | 1 |
| 5 | 11059298 |
Hose clamp | 2 |
| 6 | 11115965 |
Pipe | 1 |
| 11191795 |
Pipe | 1 | |
| 11193124 |
Pipe | 1 | |
| 11196996 |
Tube | 1 | |
| 7 | 11115964 |
Pipe | 1 |
| 11191796 |
Pipe | 1 | |
| 11193125 |
Pipe | 1 | |
| 11196997 |
Tube | 1 | |
| 8 | 4775509 |
Radiator hose | 2 |
| 9 | 11059298 |
Hose clamp | 2 |
| 10 | 11113656 |
Pipe | 1 |
| 11 | 943372 |
Hose | REQ |
| 12 | 11059298 |
Hose clamp | 2 |
| 13 | 11039193 |
Temperature sensor | 1 |
| 14 | 11059298 |
Hose clamp | 2 |
| 15 | 11113658 |
Pipe | 1 |
| 16 | 943372 |
Hose | REQ |
| 17 | 11059298 |
Hose clamp | 2 |
| 18 | 11112975 |
Radiator hose | 1 |
| 11193123 |
Radiator hose | 1 | |
| 19 | 11059298 |
Hose clamp | 2 |
| 20 | 11112969 |
Pipe | 1 |
| 21 | 11113647 |
Radiator hose | 1 |
| 22 | 11059298 |
Hose clamp | 1 |
| 23 | 11059297 |
Hose clamp | 1 |
| 24 | 11062225 |
Thermostat | 1 |
| 25 | 943371 |
Hose | REQ |
| 26 | 11059297 |
Hose clamp | 2 |
| 27 | 943371 |
Hose | REQ |
| 28 | 11059297 |
Hose clamp | 2 |
| 29 | 11112974 |
Radiator hose | 1 |
| 30 | 11059298 |
Hose clamp | 2 |
| 31 | 16828476 (11033655) |
Connecting pipe | 1 |
| 4871469 |
•Air vent valve | 1 | |
| 32 | 11445263 |
O-ring | 1 |
| 33 | 1542778 |
V-clamp | 1 |
| 34 | 13948356 |
Flange screw | 1 |
| 35 | |
Plate | 1 |
| 11191705 |
Bracket | 1 | |
| 36 | 946441 |
Flange screw | 2 |
| 37 | 11062054 |
Brace | 2 |
| 38 | 13945408 |
Nut | 4 |
| 39 | 11191017 |
Bracket | 1 |
| 11193220 |
Bracket | 1 | |
| 40 | 946441 |
Flange screw | 2 |
| 41 | 11112146 |
Cap | 1 |
| 41 | 11193785 |
Clamp | 1 |
| 42 | 13965180 |
Screw | 1 |
| 947760 |
Flange screw | 1 | |
| 43 | 11062179 |
Spacer ring | 1 |
| 11114567 |
Spacer sleeve | 1 | |
| 44 | 11112146 |
Cap | 1 |
| 11193785 |
Clamp | 1 | |
| 45 | 11062179 |
Spacer ring | 1 |
| 46 | 13965179 |
Screw | 1 |
| 47 | 11115150 |
Clamp | 2 |
| 48 | 13965218 |
Screw | 2 |
| 49 | |
Anchorage | 1 |
| 50 | 11115150 |
Clamp | 2 |
| 51 | 13965182 |
Screw | 2 |
| 13965183 |
Flange screw | 2 | |
| 52 | 11115090 |
Bracket | 1 |
| 53 | 13965185 |
Screw | 4 |
| 54 | 4861316 |
Spacer ring | 1 |
| 55 | 13965193 |
Screw | 1 |
| 56 | 11115106 |
Plate | 1 |
| 57 | 13947760 |
Screw | 2 |
| 58 | |
Bracket | 1 |
| 11196204 |
Plate | 1 | |
| 59 | 11190442 |
Attachment | 1 |
| |
Clamp | 1 | |
| 60 | 11112146 |
Cap | 1 |
| 61 | 11055612 |
Plain washer | 1 |
| 62 | 13965182 |
Screw | 1 |
| 13947760 |
Screw | 1 |
