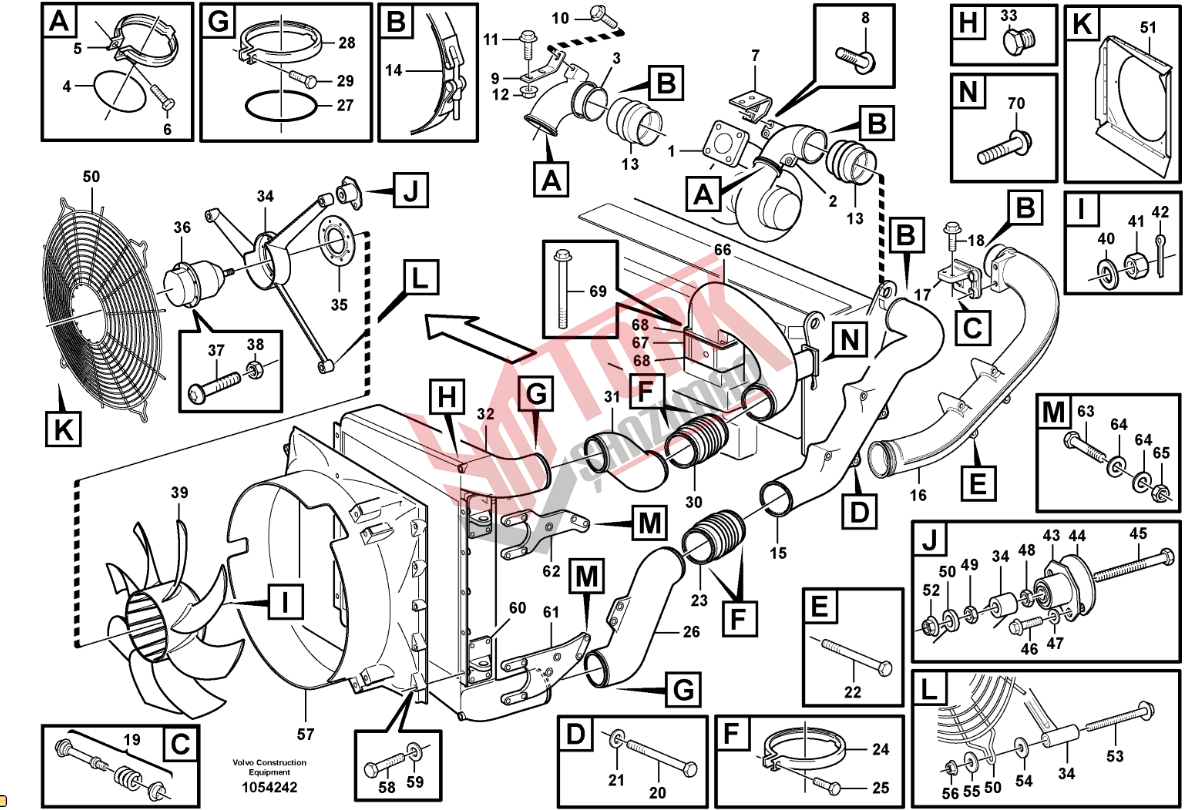

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 258/125 Intercooler S/N - 13331, S/N - 72244 BRA, USA
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Turbocharger | |
| 2 | 11030375 |
Connecting pipe | |
| 3 | 15049169 (11423089) |
Connecting pipe | |
| 4 | 1542781 |
Sealing ring | |
| 5 | 1542778 |
V-clamp | |
| 6 | 965212 |
Flange screw | |
| 7 | 11127462 |
Anchorage | |
| 8 | 945444 |
Flange screw | |
| 9 | 11423098 |
Plate | |
| 10 | 946472 |
Flange screw | |
| 11 | 946329 |
Flange screw | |
| 12 | 13971098 |
Flange nut | |
| 13 | 865127 |
Charge air hose | |
| 14 | 865575 |
Hose clamp | |
| 15 | 11127433 |
Connecting pipe | |
| 16 | 15049254 (11423090) |
Charge air pipe | |
| 17 | 11423097 |
Bracket | |
| 18 | 946441 |
Flange screw | |
| 19 | 20739547 (20538726) |
Flange screw | |
| 20 | 13965190 |
Screw | |
| 21 | 976945 |
Washer | |
| 22 | 13965189 |
Screw | |
| 23 | 15084140 |
Charge air hose | 1 |
| 24 | 20787709 |
V-clamp | 4 |
| 25 | 963559 |
Hexagon screw | 4 |
| 26 | 11113167 |
Pipe | 1 |
| 27 | 1675066 |
Sealing ring | 2 |
| 28 | 20787709 |
V-clamp | 2 |
| 29 | 963559 |
Hexagon screw | 2 |
| 30 | 15084140 |
Charge air hose | 1 |
| 31 | 11113168 |
Pipe | 1 |
| 32 | 15149905 (11113165) |
Charge air cooler | 1 |
| 11195130 |
Charge air cooler | 1 | |
| 33 | 968061 |
Plug | 2 |
| 34 | 11193254 |
Fan motor retainer | 1 |
| 35 | 11191163 |
Plate | 1 |
| 36 | |
Hydraulic motor | 1 |
| 37 | 969147 |
Six point socket screw | 8 |
| 969587 |
Six point socket screw | 8 | |
| 38 | 13949278 |
Flange lock nut | 8 |
| 39 | 11193183 (11121500) |
Fan | 1 |
| 40 | 13955897 (11050693) |
Washer | 1 |
| 41 | 961294 |
Castle nut | 1 |
| 971099 |
Flange lock nut | 1 | |
| 42 | 907847 |
Split pin | 1 |
| 43 | 11059269 |
Rubber element | 3 |
| 44 | 11113632 |
Spacer | 3 |
| 45 | 975573 |
Hexagon screw | 3 |
| 46 | 946470 |
Flange screw | 6 |
| 47 | 930840 |
Plain washer | 6 |
| 48 | 971081 |
Hexagon nut | 3 |
| 49 | 971081 |
Hexagon nut | 3 |
| 50 | 11191835 |
Fan Protector | 1 |
| 51 | 11120351 |
Shield Plate | 1 |
| 52 | 971099 (13971099) |
Flange lock nut | 3 |
| 53 | 13965186 |
Screw | 3 |
| 54 | 930842 (13930842) |
Plain washer | 3 |
| 55 | 13960143 |
Washer | 3 |
| 56 | 13971098 |
Flange nut | 3 |
| 57 | 11120300 |
Fan shroud | 1 |
| 58 | 13971024 |
Screw | 8 |
| 59 | 13942551 |
Washer | 8 |
| 976945 |
Washer | 8 | |
| 60 | |
Bracket | 3 |
| 61 | 11193176 |
Bracket | 1 |
| 62 | 11193175 |
Bracket | 1 |
| 63 | 971024 |
Hexagon screw | 4 |
| 64 | 13942551 |
Washer | 8 |
| 65 | 13971074 |
Hexagon nut | 4 |
| 66 | 11030374 |
Connecting pipe | |
| 67 | |
Starter element | |
| 68 | 3979639 |
Gasket | |
| 69 | 13965184 |
Flange screw | |
| 70 | 946472 |
Flange screw | - |
