A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

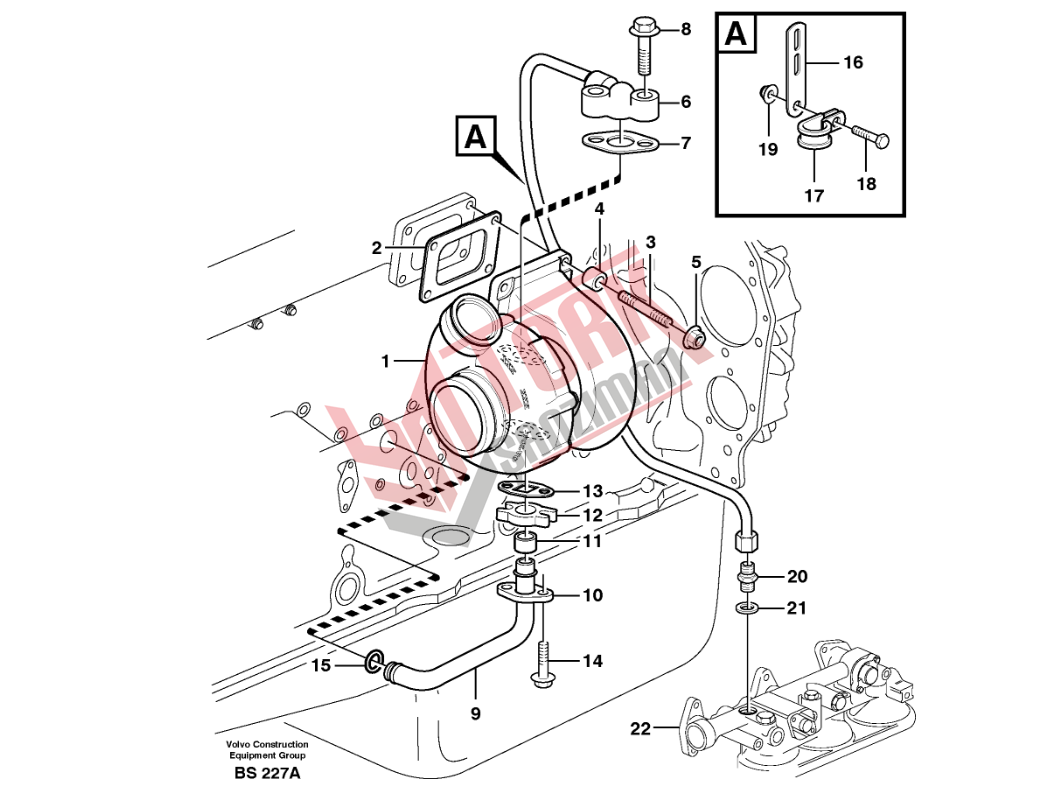

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11030482 |
Turbocharger | 1 |
| 11127624 |
Turbocharger | 1 | |
| 11128740 |
Turbocharger | 1 | |
| 11423684 (11423084) |
Turbocharger | ||
| 2 | 20784537 (470939) |
Gasket | 1 |
| 20784537 |
Gasket | ||
| 8194365 |
Gasket | ||
| 3 | 977299 |
Stud | 4 |
| 21345127 (20579303) |
Stud | 4 | |
| 4 | 478344 |
Spacer sleeve | 4 |
| 5 | 1543499 (471622) |
Flange nut | 4 |
| 6 | 11423115 |
Oil pipe | |
| 11423001 |
Pressure pipe | 1 | |
| 7 | 420641 |
Gasket | 1 |
| 8 | 946671 |
Flange screw | 2 |
| 9 | 11128938 |
Oil pipe | |
| 11030406 |
Oil return pipe | 1 | |
| 10 | 469543 |
Flange | 1 |
| 11 | 469601 |
Sealing ring | 1 |
| 12 | 8148729 |
Connector | 1 |
| 13 | 420643 |
Gasket | 1 |
| 14 | 13947760 |
Screw | 2 |
| 15 | 21940615 (11707417) |
Sealing ring | 1 |
| 16 | |
Bracket | 1 |
| 17 | 952626 |
Clamp | 1 |
| 18 | 13946544 |
Screw | 1 |
| 19 | 13949278 |
Flange lock nut | 1 |
| 20 | 941330 (13941330) |
Nipple | 1 |
| 21 | 13947624 |
Plane gasket | 1 |
| 22 | |
Oil filter housing | 1 |
