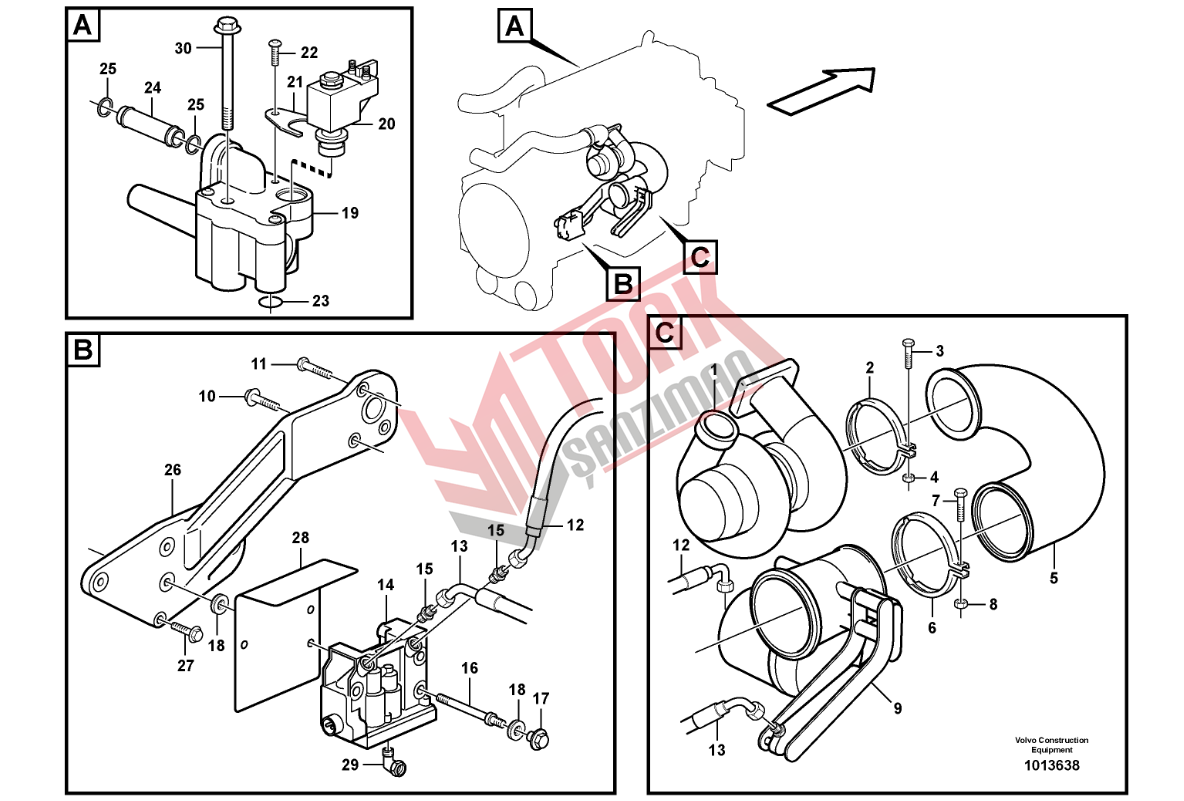

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 253/100 Exhaust brake 8188168-72, 8188776-77, 37126 S/N-13000, S/N-72000 BRA
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Turbocharger | |
| 2 | 3033054 |
Clamp | 1 |
| 3 | 13965179 |
Screw | 1 |
| 4 | 948645 (13948645) |
Flange lock nut | 1 |
| 5 | 11030338 |
Connecting pipe | 1 |
| 6 | 467310 |
Clamp | 1 |
| 7 | 13965179 |
Screw | 1 |
| 8 | 948645 (13948645) |
Flange lock nut | 1 |
| 9 | |
Exhaust Brake | 1 |
| 10 | 13947760 |
Screw | 2 |
| 11 | 946671 |
Flange screw | 1 |
| 12 | 981851 |
Hose assembly | 1 |
| 13 | 978424 |
Hose assembly | 1 |
| 14 | 20411199 |
Air valve | |
| 15 | 977639 (13977639) |
Nipple | |
| 16 | 3183278 |
Stud | |
| 11127334 |
Stud | ||
| 17 | 3183280 |
Cap nut | |
| 18 | 3964604 |
Bushing | |
| 19 | 20564732 |
Control valve | |
| 20 | 24426572 |
•Solenoid valve | |
| 21 | 8148407 |
•Retainer | |
| 22 | 968924 |
•Six point socket screw | |
| 23 | 20526428 |
•Sealing ring | |
| 24 | 8193971 |
Outlet pipe | |
| 25 | 1677370 |
Sealing ring | |
| 26 | 11127498 (11030417) |
Anchorage | |
| 27 | 946671 |
Flange screw | |
| 28 | 3183281 |
Heat shield | |
| 29 | |
Elbow nipple | 1 |
| 30 | 3165142 |
Flange screw | - |
