A35D

Hemen bizi arayın yardımcı olalım

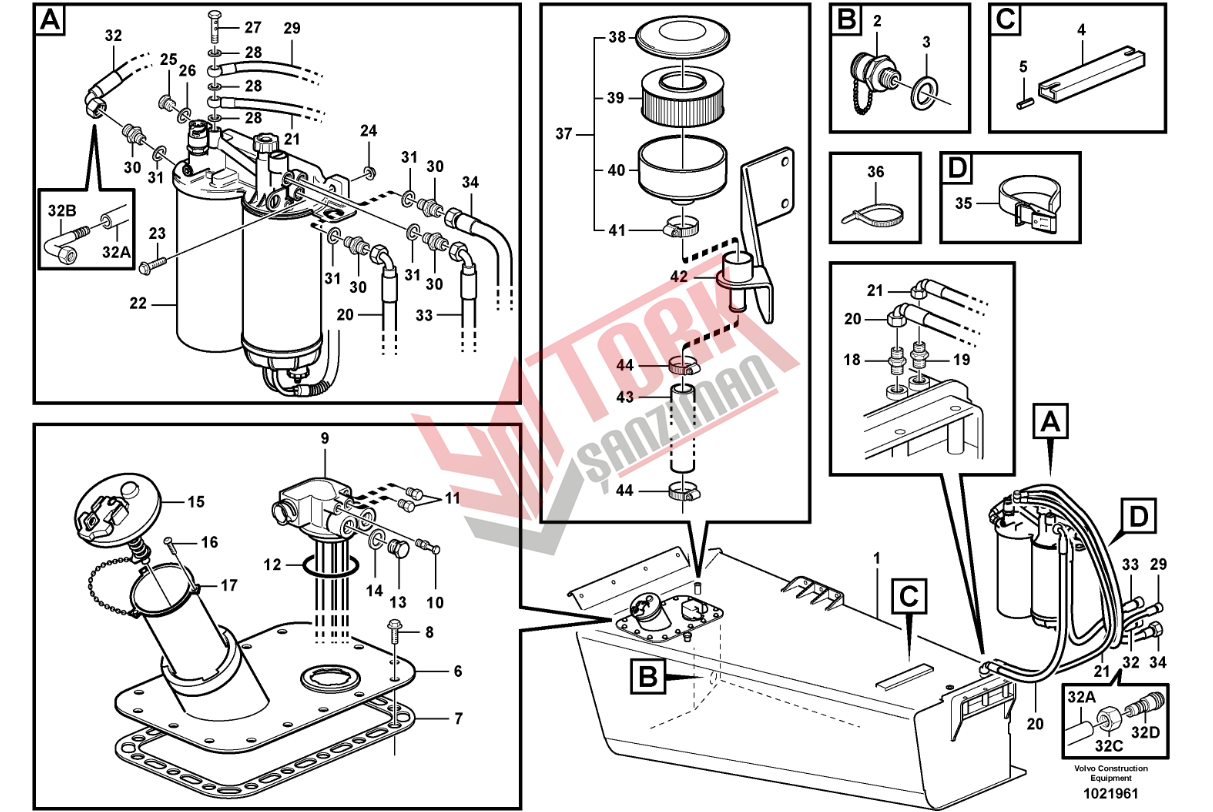

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	11192972	Fuel tank	1
2	11054692	•Valve	1
3	949329	•Gasket	1
4	11193312	•Slide plate	1
5	13951977	•Spring pin	2
6	11192781	•Hatch	1
7	11196531	•Gasket	1
8	13946173	•Screw	16
9	11170095	•Tank unit	1
10	11712846	••Nipple	1
11	11712847	••Nipple	2
12	8151926	••O-ring	1
13	960631	•Plug	2
14	948883	•Gasket
15	11118857	•Filler cap	1
	11988188	••Gasket	1
16	972264	•Six point socket screw	3
17	11118550	•Strainer	1
18	14213266	Fitting	1
	14213676	•Sealing ring	1
	948883	Gasket	1
19	973546	Nipple	1
	13947622	•Plane gasket	1
	948883	Gasket	1
20	11193272	Fuel pipe	1
21	11193273	Fuel pipe	1
22	20733422 (20509138)	Filter housing	1
23	13947760	Screw	3
24	948645	Flange lock nut	3
25	13960632	Plug	1
26	948884	Gasket	1
27	11194257	Hollow screw	1
28	13947281	Gasket	3
29	11193274	Fuel pipe	1
30	13946602	Nipple	4
31	13945653	Plane gasket	4
32		Fuel pipe	1
32A	978881	•Tube	REQ
32B	11031348	•Nipple	1
	990737	••O-ring	1
32C	956985	•Fitting nut	1
32D	977756	•Nipple	1
33	11192607	Fuel pipe	1
34	11190162	Fuel pipe	1
35	11104606	Retaining strap	1
36	4881440	Cable tie	REQ
37	11113355	Air cleaner	1
38		•Cover	1
39	11707077	•Filter insert	1
40		•Housing	1
41	943477	•Hose clamp	1
42		Bracket	1
43	992109	Hose	REQ
44	13943474	Hose clamp	2
