A35D
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım

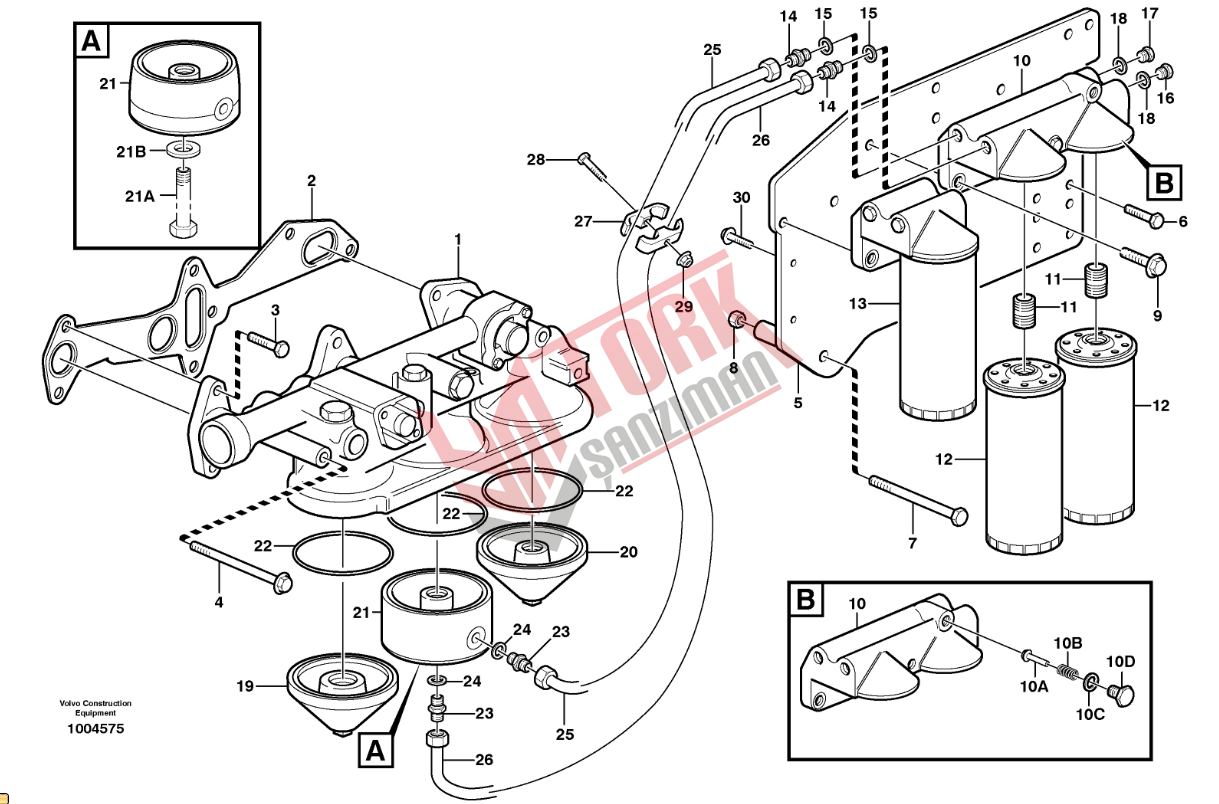

+90 552 671 32 12LUBRICATING SYSTEM > 222/110 Oil filter with fitting parts 8188168, 8188172, 8188776, 8188777 ENG 219558
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil Filter Hsg | 1 |
| 2 | 8170534 |
Gasket | 1 |
| 3 | 13945444 |
Screw | 5 |
| 4 | 969225 |
Flange screw | 3 |
| 5 | 11127364 |
Plate | 1 |
| 6 | 13947790 |
Screw | 6 |
| 7 | 13970966 |
Hexagon screw | 1 |
| 8 | 13971095 |
Flange nut | 2 |
| 9 | 946472 |
Flange screw | 3 |
| 10 | 11127484 |
Oil filter housing | 1 |
| 10A | 471085 |
•Valve cone | 1 |
| 10B | 466653 |
•Compression spring | 1 |
| 10C | 976932 |
•Gasket | 1 |
| 10D | 471598 |
•Plug | 1 |
| 11 | 466623 |
•Nipple | 2 |
| 12 | 21707133 (478736) |
Oil filter | 2 |
| 13 | |
Oil Filter | 1 |
| 14 | 941582 |
Nipple | 2 |
| 15 | 982508 (977937) |
Gasket | 2 |
| 16 | 942352 |
Plug | 1 |
| 979947 |
Plug | 1 | |
| 17 | 11127561 |
Reduction | 1 |
| 18 | 982508 (977937) |
Gasket | 2 |
982508 |
Gasket | 1 | |
| 19 | 3812509 |
Casing | 1 |
| 20 | 3812511 |
Casing | 1 |
| 21 | 11127476 |
Cover | 1 |
| 21A | 11423710 (11127479) |
Reduction nipple | 1 |
| 21B | 944126 |
O-ring | 1 |
| 22 | 13948981 |
O-ring | 3 |
| 23 | 941582 |
Nipple | 2 |
| 24 | 982508 (977937) |
Gasket | 2 |
| 25 | 11127494 |
Pipe | 1 |
| 26 | 11127493 |
Pipe | 1 |
| 27 | 947219 |
Clamp | 4 |
| 27 | 949747 |
Clamp | |
| 28 | 965212 |
Flange screw | 2 |
| 965176 |
Flange screw | ||
| 29 | 13949278 |
Flange lock nut | 2 |
| 30 | 969313 |
Flange screw | 1 |
