A30F

Hemen bizi arayın yardımcı olalım

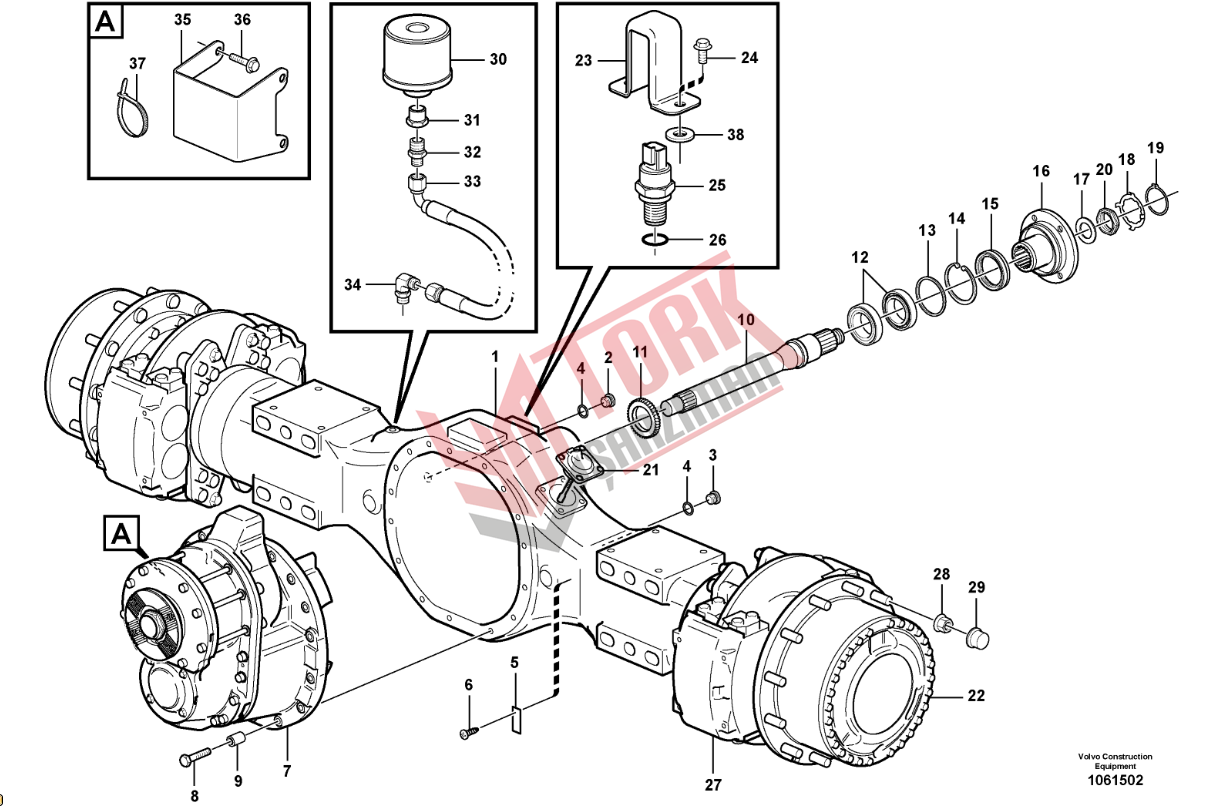

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	56041	Axle	1
1	11103283	•Axle casing	1
2	11034156	•Plug	1
3	11102187	•Magnetic plug	1
4	958228	•O-ring	2
5		•Sign	1
6	950891	•Drive screw	2
7		•Final Drive	1
7		••Final Drive	1
8	949544	•Hex. socket screw	14
8	13968816	•Allen Hd Screw	4
9	11102959	•Spacer sleeve	4
10	11103274	•Axle shaft	1
11	11103273	•Tooth Wheel	1
12	184866	•Roller bearing	2
13	11103059	•Spacer ring	REQ
13	11103060	•Spacer ring	REQ
13	11103061	•Spacer ring	REQ
13	11103062	•Spacer ring	REQ
13	11103063	•Spacer ring	REQ
13	11103064	•Spacer ring	REQ
13	11103065	•Spacer ring	REQ
13	11103066	•Spacer ring	REQ
14	4870265	•Lock ring	1
15	11103132	•Seal	1
16	11103128	•Companion flange	1
	11103129	••Dust cover	1
17	941700	•Washer	1
18	382779	•Lock washer	1
18	383992	•Lock washer	1
19	914480	•Snap ring	1
20	943805	•Hexagon nut	1
21		•Differential lock	1
22		•Hub reduction	2
23	17209371 (1522445)	•Protecting casing	1
24	946440	•Flange screw	2
25	15090257	•Induction sensor	1
26	13976109	•O-ring	1
26	17200288	•Shim	REQ
26	17200290	•Shim	REQ
26	15132915	•Shim	REQ
26	15133325	•Shim	REQ
26	15133326	•Shim	REQ
26	15133328	•Shim	REQ
26	15133329	•Shim	REQ
26	15133330	•Shim	REQ
26	15133332	•Shim	REQ
26	15133333	•Shim	REQ
26	17200291	•Shim	REQ
26	17200292	•Shim	REQ
27		•Brake	4
28	947972	Wheel nut	24
29	11100354	Nut cap	24
30	11172907	Air filter	1
31	11055905	Nipple	1
32	929280	Nipple	1
33	13933676	Hose assembly	1
34	932337	Elbow nipple	1
35		Protecting casing	1
36	13946173	Screw	4
37	4821292	Cable tie	1
38	11055612	Plain washer	2
