A30F
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

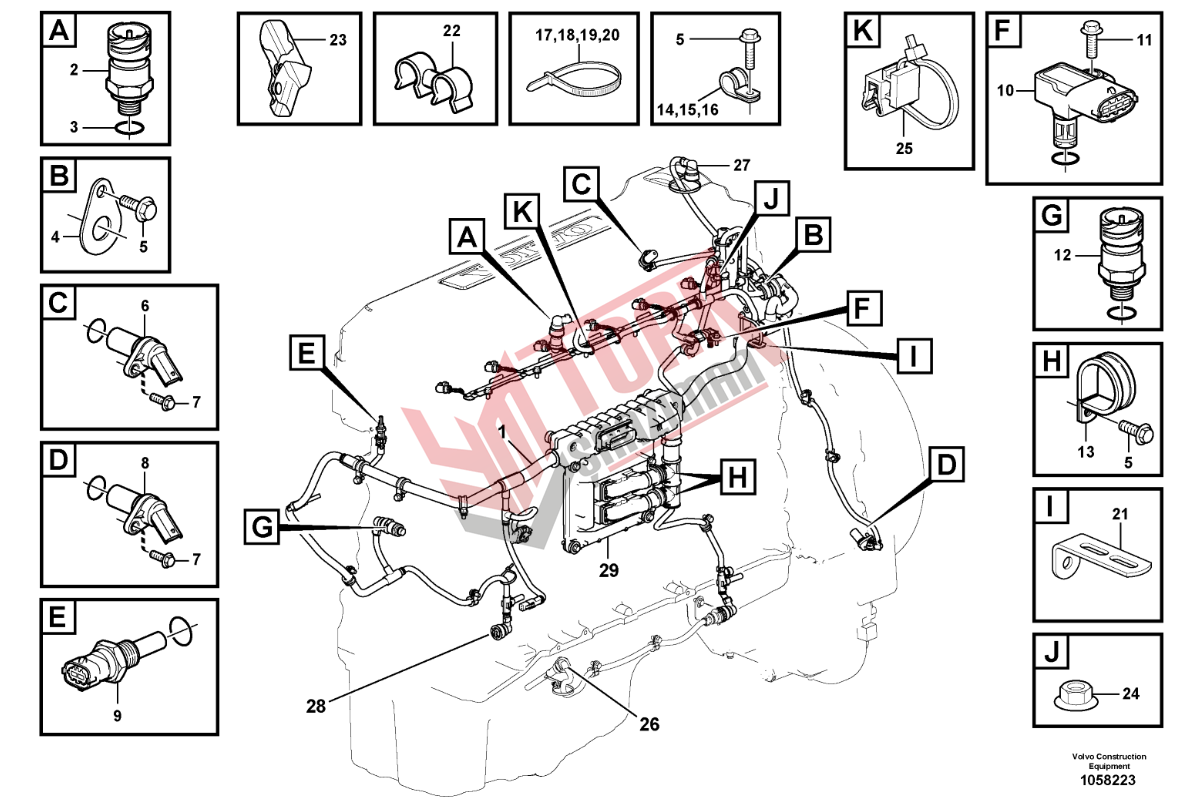

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 17441789 |
Wiring Harness | 1 |
| 2 | 20796744 |
Pressure sensor | 1 |
| 3 | 968559 |
•O-ring | 1 |
| 4 | 20556179 |
Shim | REQ |
| 5 | 946440 |
Flange screw | 9 |
| 6 | 21426987 (20513343) |
Speed monitor | 1 |
| |
•O-ring | 1 | |
| 7 | 946544 |
Flange screw | 2 |
| 8 | 21426987 (20513343) |
Speed monitor | 1 |
| |
•O-ring | 1 | |
| 9 | 21531072 (20513340) |
Temperature sensor | 1 |
| |
•O-ring | 1 | |
| 10 | 22329559 (21097978) |
Pressure sensor | 1 |
| |
•O-ring | 1 | |
| 11 | 995448 (984724) |
Flange screw | 1 |
| 12 | 22899626 (21302639) |
Pressure sensor | 1 |
| 13 | 13949997 |
Clamp | 2 |
| 14 | 990178 |
Attaching clamp | 6 |
| 15 | 984943 |
Clamp | 1 |
| 16 | 984949 |
Clamp | 3 |
| 17 | 983472 |
Cable tie | 10 |
| 18 | 980881 |
Cable tie | 3 |
| 19 | 948211 |
Cable tie | 3 |
| 20 | 4881440 |
Cable tie | 3 |
| 21 | 13965558 |
Bracket | 1 |
| 22 | 3121512 |
Retaining clip | 1 |
| 23 | 20857215 |
Heat shield | 2 |
| 24 | 983715 |
Sems nut | 1 |
| 25 | 25375469 |
Retainer | 4 |
| 26 | |
Sensor | 1 |
| 27 | |
Pressure Sensor | 1 |
| 28 | |
Air Valve | 1 |
| 29 | |
ECU | 1 |
