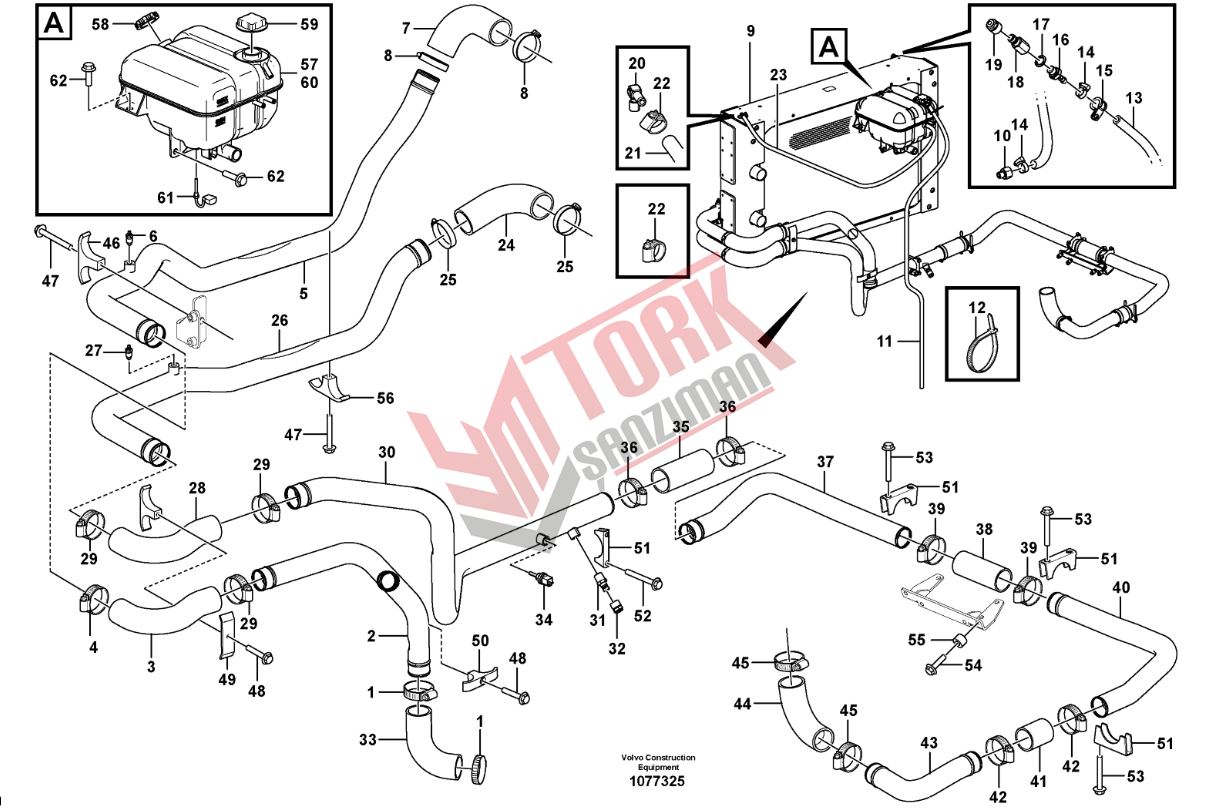

YM Güç Tork - 261/260 Cooling system, radiator - coolant pump - A30F

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	11059298	Hose clamp	2
2	15143162	Pipe	1
3	4775509	Radiator hose	1
4	11059298	Hose clamp	2
5	15177441	Pipe	1
6	4871469	Air vent valve	1
7	11027180	Radiator hose	1
8	11059298	Hose clamp	2
9	15074315	Radiator	1
10	990726	Elbow nipple	1
11	943367	Hose	1
12	4821292	Cable tie	2
13	943367 (949564)	Hose	1
14	943470	Hose clamp	2
15	942810	Clamp	1
16	945567	Nipple	1
17	948883	Gasket	1
18	4786585	Insert nipple	1
19	11194108	Protecting sleeve	1
20	980568	Elbow nipple	1
20	991126	Elbow nipple	1
21	943367	Hose	1
22	943470	Hose clamp	2
23	11033572	Restrictor	1
24	11027180	Radiator hose	1
25	11059298	Hose clamp	2
26	15177514	Pipe	1
27	4871469	Air vent valve	1
28	4775509	Radiator hose	1
29	11059298	Hose clamp	2
30	15161537	Pipe	1
31	11423133	Nipple	1
32	11194108	Protecting sleeve	1
33	11027180	Radiator hose	1
34	11419486	Temperature sensor	1
35	943372	Hose	1
36	11059298	Hose clamp	2
37	15112608	Coolant pipe	1
38	943372	Hose	1
39	11059298	Hose clamp	2
40	16822061 (15112207)	Coolant pipe	1
41	943372	Hose	1
42	11059298	Hose clamp	2
43	15155816	Pipe	1
44	11112974	Radiator hose	1
45	11059298	Hose clamp	2
46	11193784	Clamp	2
47	965181	Flange screw	2
48	13965179	Screw	2
52	13965181	Screw	1
53	13965182	Screw	1
54	947760	Flange screw	4
55	11053913	Spacer sleeve	4
56	11193785	Clamp	1
57	17336824	Expansion tank	1
58	3979593	•Filler cap	1
59	1674083	•Cap	1
60	17336823	•Expansion tank	1
61	21399626	•Sensor	1
62	946329	Flange screw	3
