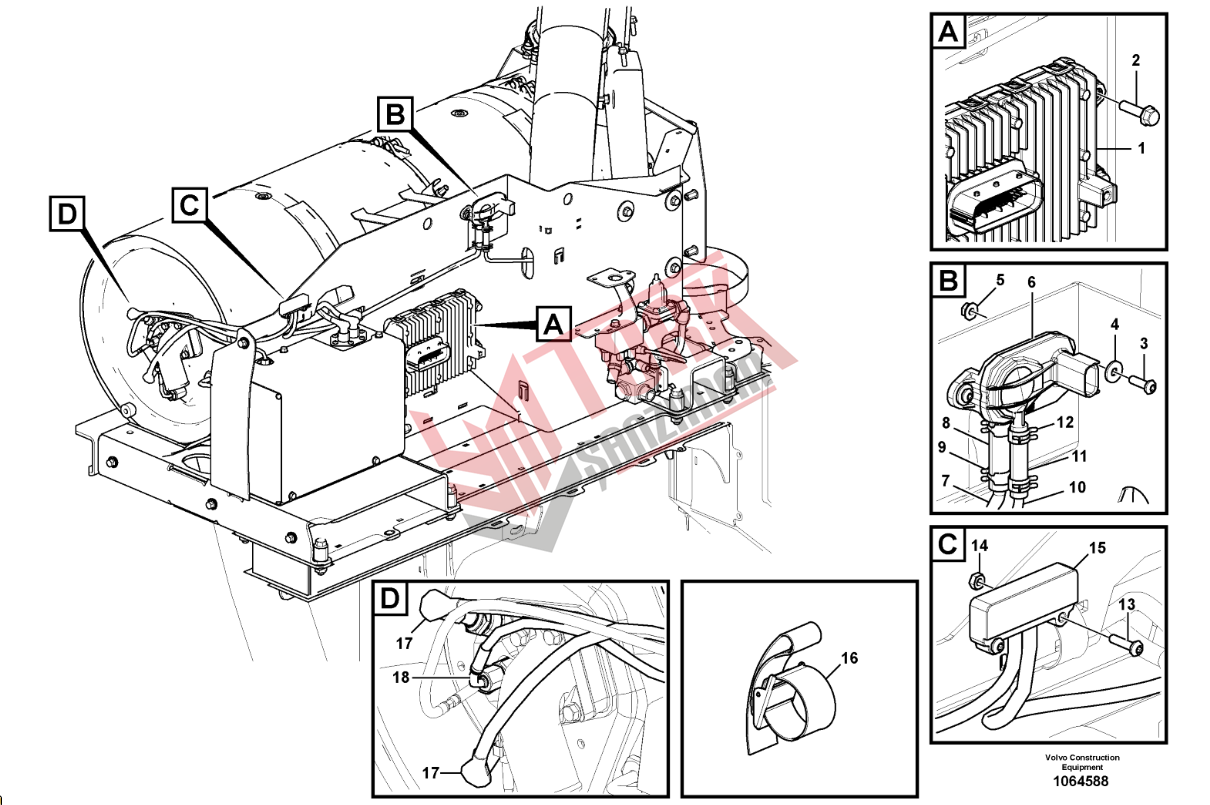

+90 552 671 32 12INLET SYSTEM; EXHAUST SYSTEM > 254/400 Aftertreatment Ecu, cables and hoses 84717, 84726
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 21063598 |
ECU | 1 |
| 2 | 946671 |
Flange screw | 4 |
| 3 | 969407 |
Six point socket screw | 2 |
| 4 | 191156 |
Washer | 2 |
| 5 | 949874 |
Flange lock nut | 2 |
| 6 | 21408323 |
Pipe | 1 |
| 6 | 20451992 |
•Sensor | 1 |
| 7 | 21408338 |
•Pipe | 1 |
| 8 | 21372100 |
••Hose | 1 |
| 9 | 21283793 |
••Hose connection | 2 |
| 10 | 21408323 |
•Pipe | 1 |
| 11 | 21372101 |
••Hose | 1 |
| 12 | 21283796 |
••Hose connection | 2 |
| 13 | 13969516 |
Six point socket screw | 2 |
| 14 | 955779 |
Hexagon nut | 2 |
| 15 | 21546751 |
Sensor | 1 |
| 16 | 15096332 |
Retaining strap | REQ |
| 17 | 15151656 |
Ignition cable | 2 |
| 18 | 15128015 |
Fuel hose | 1 |
