A30F
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

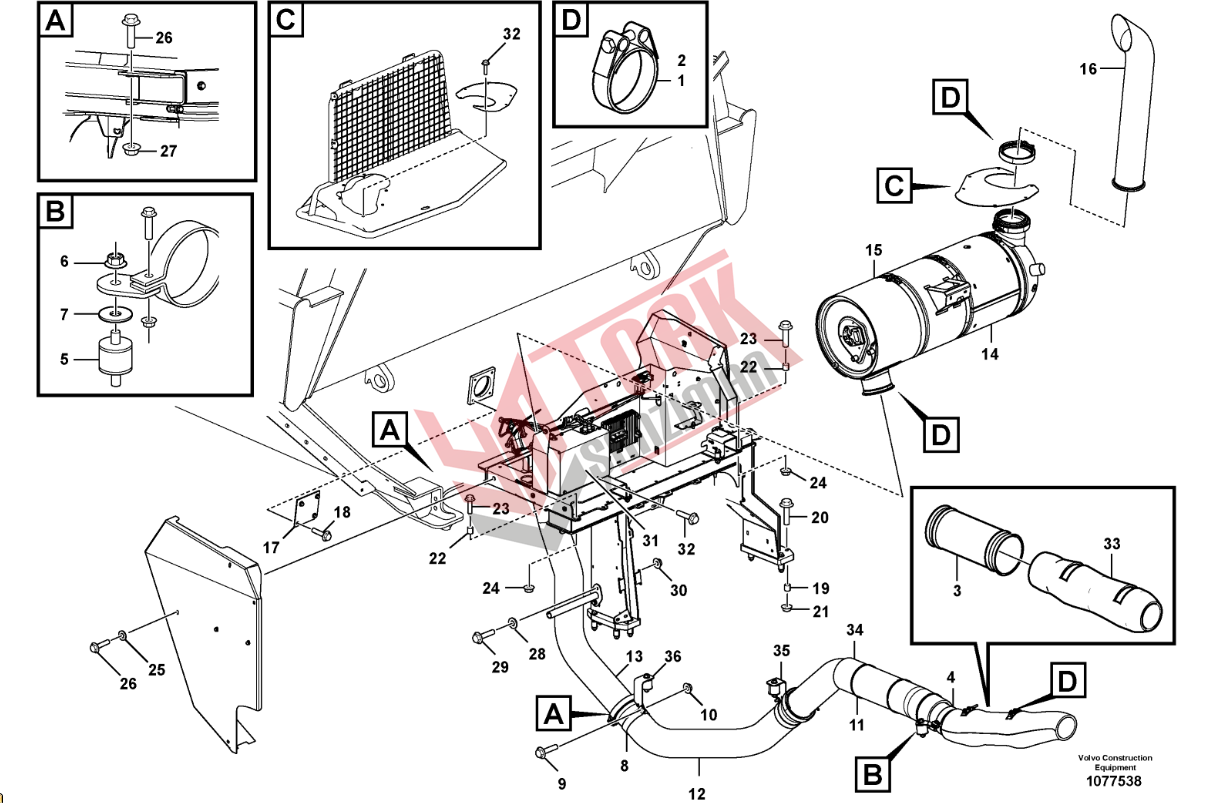

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 21119083 |
Gasket | 6 |
| 2 | 15113226 |
V-clamp | 6 |
| 3 | 15080985 |
Exhaust hose | 1 |
| 4 | 15153071 |
Exhaust pipe | 1 |
| 5 | 11110276 |
Rubber cushion | 3 |
| 6 | 971096 |
Flange nut | 6 |
| 7 | 11053667 |
Gasket | 3 |
| 8 | 1135139 |
Clamp | 3 |
| 9 | 947760 |
Flange screw | 3 |
| 10 | 948645 |
Flange lock nut | 3 |
| 11 | 15179830 |
Clamp | 3 |
| 12 | 15153072 |
Exhaust pipe | 1 |
| 13 | 15153073 |
Exhaust pipe | 1 |
| 14 | |
Burner | 1 |
| 15 | 15095361 |
Tensioning band | 2 |
| 16 | 15179753 |
Exhaust pipe | 1 |
| 17 | 4737723 |
Cover | 1 |
| 18 | 946471 |
Flange screw | 4 |
| 19 | 4861316 |
Spacer ring | 8 |
| 20 | 965196 |
Flange screw | 8 |
| 21 | 971099 |
Flange lock nut | 8 |
| 22 | 4861316 |
Spacer ring | 8 |
| 23 | 13965227 |
Screw | 8 |
| 24 | 971099 |
Flange lock nut | 8 |
| 25 | 11117464 |
Plain washer | 11 |
| 25 | 11117464 |
Plain washer | 7 |
| 25 | 947354 |
Washer | 4 |
| 26 | 945444 |
Flange screw | 13 |
| 27 | 948645 |
Flange lock nut | 2 |
| 28 | 976945 |
Washer | 2 |
| 29 | 946329 |
Flange screw | 2 |
| 30 | 13971095 |
Flange nut | 2 |
| 31 | |
Unit | 1 |
| 32 | 945444 |
Flange screw | 6 |
| 32 | 13946173 |
Screw | |
| 33 | 16800464 |
Insulating cover | 1 |
| 34 | 11197520 |
Insulating cover | |
| 35 | 15110717 |
Plate | |
| 36 | 15110716 |
Plate | - |
