A30F

Hemen bizi arayın yardımcı olalım

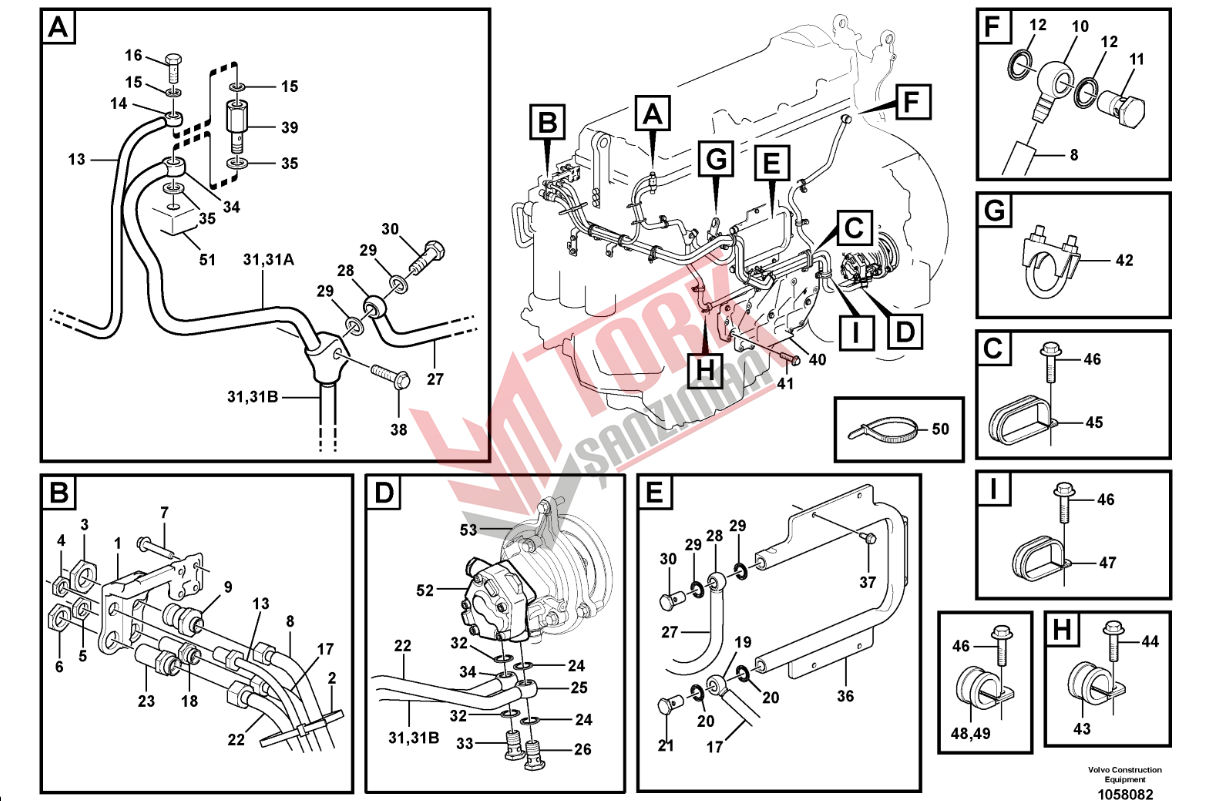

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	15146304	Bracket	1
2	4881440	Cable tie	1
3	957021	Hexagon nut	1
4	957018	Hexagon nut	1
5	957019	Hexagon nut	1
6	957020	Hexagon nut	1
7	945444	Flange screw	4
7	948217	Flange screw
8	15154484	Fuel pipe	1
8	978881	•Tube	REQ
9	8148326	•Nipple	1
10	977754	•Banjo nipple	1
11	991046	•Hollow screw	1
12	20852765	•Sealing ring	2
13	15154638	Fuel pipe	1
13	978879	•Tube	REQ
14	980431	•Banjo nipple	1
15	20852762	•Sealing ring	1
16	991047	•Hollow screw	1
17	15154485	Fuel pipe	1
17	978881	•Tube	REQ
18	957083	•Nipple	1
19	1556977	•Banjo nipple	1
20	20852764	•Sealing ring	2
21	991048	•Hollow screw	1
22	15154486	Fuel pipe	1
22	978881	•Tube	REQ
23	957084	•Nipple	1
24	20852765	•Sealing ring	2
25	977754	•Banjo nipple	1
26	991046	•Hollow screw	1
27	15029632	Fuel pipe	1
27	978881	•Tube	REQ
28	977753	•Banjo nipple	2
29	20852764	•Sealing ring	4
30	991048	•Hollow screw	2
31	15029634	Fuel pipe	1
31A	978881	•Tube	REQ
31B	978881	•Tube	REQ
32	20852765	•Sealing ring	2
33	991046	•Hollow screw	1
34	977754	•Banjo nipple	2
35	20852765	Sealing ring	2
36	21251350	Radiator	1
37	13946501	Screw	6
38	947760	Flange screw	1
39	20754813	Overflow valve	1
40	15144743	Bracket	1
41	946671	Flange screw	1
42	68129	Clamp	1
43	942810	Clamp	1
44	946471	Flange screw	1
45	11025709	Clamp	2
46	946440	Flange screw	14
47	981664	Clamp	1
48	984943	Clamp	4
49	13949997	Clamp	4
50	948211	Cable tie	5
51		Cylinder head	1
52		Fuel pump	1
53		Oil Drain Pump	1
