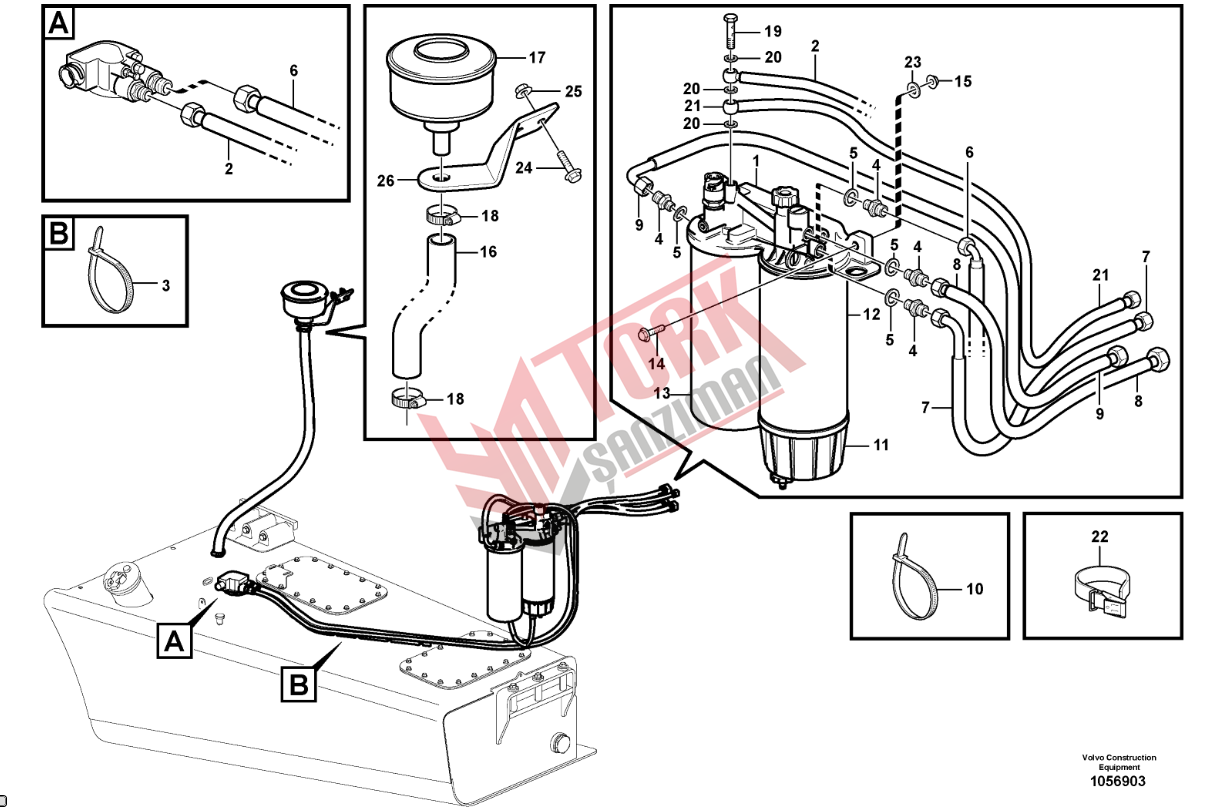

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 21023287 |
Fuel filter housing | 1 |
| 2 | 15145512 |
Fuel pipe | 1 |
| 3 | 4881440 |
Cable tie | |
| 4 | 13946602 |
Nipple | 4 |
| 5 | 13945653 |
Plane gasket | 4 |
| 6 | 15116213 |
Fuel pipe | 1 |
| 7 | 15116043 |
Fuel pipe | 1 |
| 8 | 15116042 |
Fuel pipe | 1 |
| 9 | 15116041 |
Fuel pipe | 1 |
| 10 | 4881440 |
Cable tie | |
| 11 | 11110737 |
Bowl | 1 |
| 15195930 |
•Kit | 1 | |
| 15195958 |
•Gasket kit | 1 | |
| 12 | 11110683 |
Primary filter | 1 |
| 13 | 15126069 |
Fuel filter | 1 |
| 14 | 947760 |
Flange screw | 3 |
| 15 | 948645 |
Flange lock nut | 3 |
| 16 | 992109 |
Hose | REQ |
| 17 | 11113355 |
Air cleaner | 1 |
| 11707077 |
•Filter insert | 1 | |
| 943477 |
•Hose clamp | 1 | |
| 18 | 943474 |
Hose clamp | 2 |
| 19 | 11194257 |
Hollow screw | 1 |
| 20 | 947281 |
Gasket | 3 |
| 21 | 15158918 |
Fuel pipe | 1 |
| 22 | 11104606 |
Retaining strap | 2 |
| 23 | 930840 |
Plain washer | 2 |
| 24 | 946671 |
Flange screw | 2 |
| 25 | 948645 |
Flange lock nut | 2 |
