A30F
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

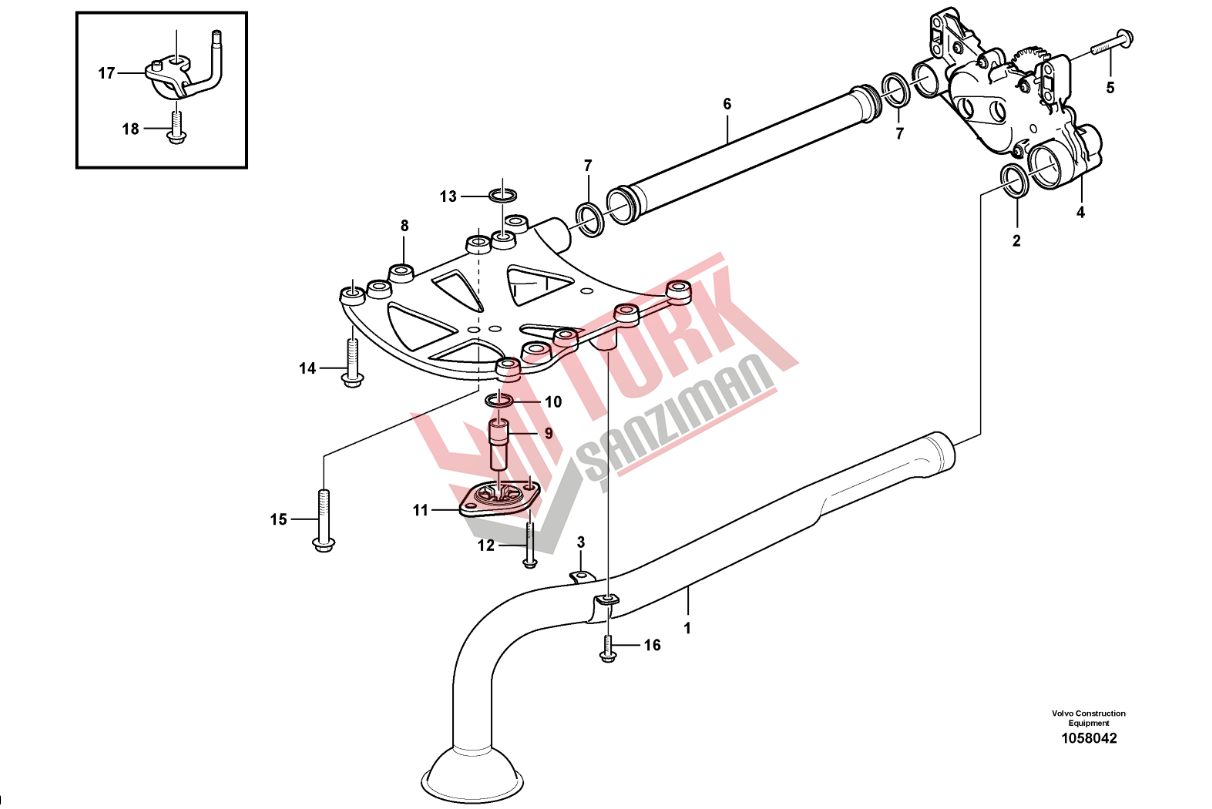

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil Strainer | 1 |
| 21448895 |
•Oil strainer | 1 | |
| 21498764 |
•Intermediate tube | 1 | |
| 2 | 20570444 |
Sealing ring | 1 |
| 3 | |
Attaching clamp | 1 |
| 4 | 21736639 (20835230) |
Oil pump | 1 |
| 5 | 947760 |
Flange screw | 4 |
| 6 | 21322636 (20563450) |
Pressure Pipe | 1 |
| 7 | 20570449 |
Sealing ring | 2 |
| 8 | 21404321 |
Valve housing | 1 |
| 9 | 3826265 |
•Reducing Valve | 1 |
| 10 | 469846 |
•Sealing ring | 1 |
| 11 | 471648 |
•Cover | 1 |
| 12 | 13946544 |
•Screw | 2 |
| 13 | 21092243 |
Sealing ring | 3 |
| 14 | 965186 |
Flange screw | 6 |
| 15 | 13947790 |
Screw | 2 |
| 16 | 946173 |
Flange screw | 2 |
| 17 | 22577447 (20464993) |
Piston Cooling | 6 |
| 18 | 13966378 |
Flange screw | 6 |
