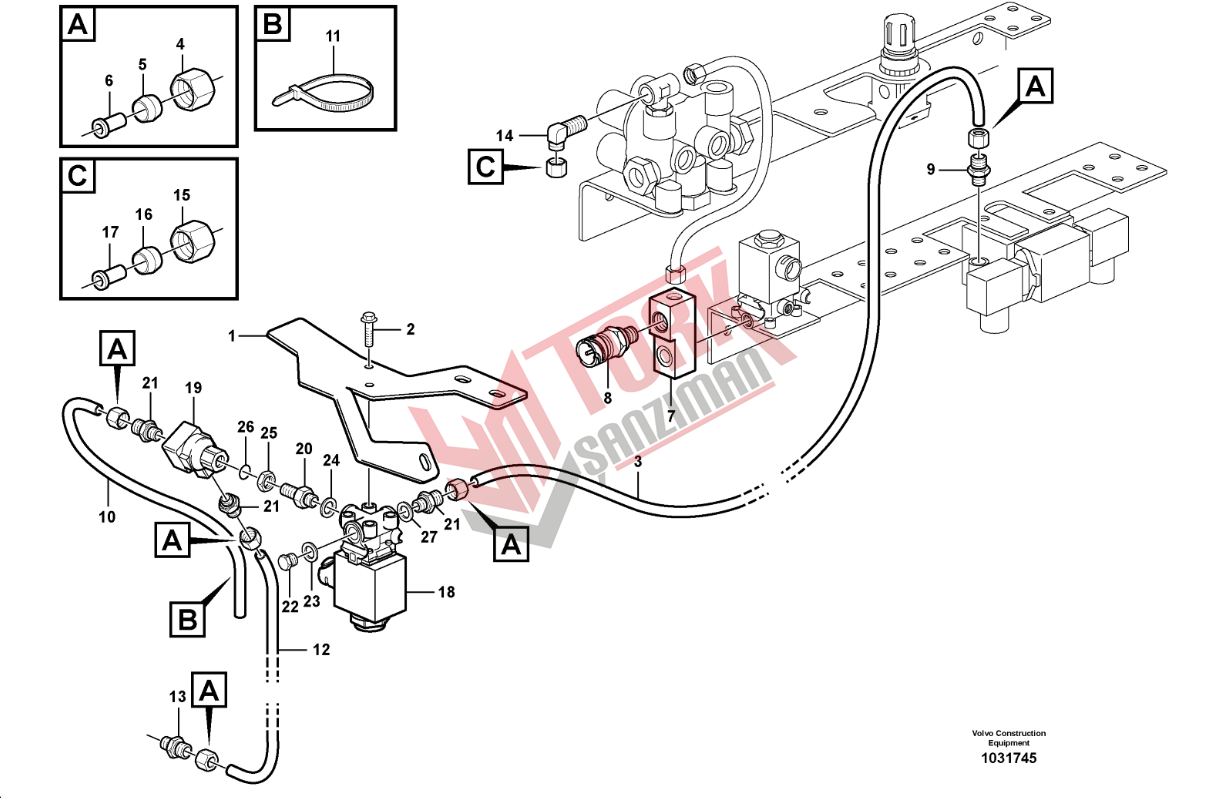

+90 552 671 32 12FRONT AXLE; REAR AXLE > 468/250 Compressed air system, Automatic unit ATC 81263, S/N - 12677
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11193725 |
Retainer | 1 |
| 2 | 969422 |
Six point socket screw | 2 |
| 3 | 967976 |
Tube | REQ |
| 4 | 326596 |
Fitting nut | 5 |
| 5 | 326599 |
Ferrule | 5 |
| 6 | 967559 |
Sleeve | 5 |
| 7 | 11196073 |
Connecting block | 1 |
| 8 | 20829689 |
Sensor | 1 |
| 9 | 13966414 |
Nipple | 1 |
| 10 | 967976 |
Tube | REQ |
| 11 | 4821292 |
Cable tie | 1 |
| 12 | 967976 |
Tube | REQ |
| 13 | 13966414 |
Nipple | 1 |
| 14 | 945964 |
Elbow nipple | 1 |
| 15 | 326597 |
Fitting nut | 1 |
| 16 | 326600 |
Sleeve | 1 |
| 17 | 967548 |
Support sleeve | 1 |
| 18 | 1078318 |
Solenoid valve | 1 |
| 19 | 11195122 |
Valve | 1 |
| 20 | 945955 |
Reduction nipple | 1 |
| 21 | 13966414 |
Nipple | 3 |
| 22 | 960629 |
Plug | 1 |
| 23 | 990823 |
Gasket | 1 |
| 24 | 990823 |
Gasket | 1 |
| 25 | 945893 |
Hexagon nut | 1 |
| 26 | 1587176 |
O-ring | 1 |
| 27 | 990823 |
Gasket | 1 |
