A30E
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

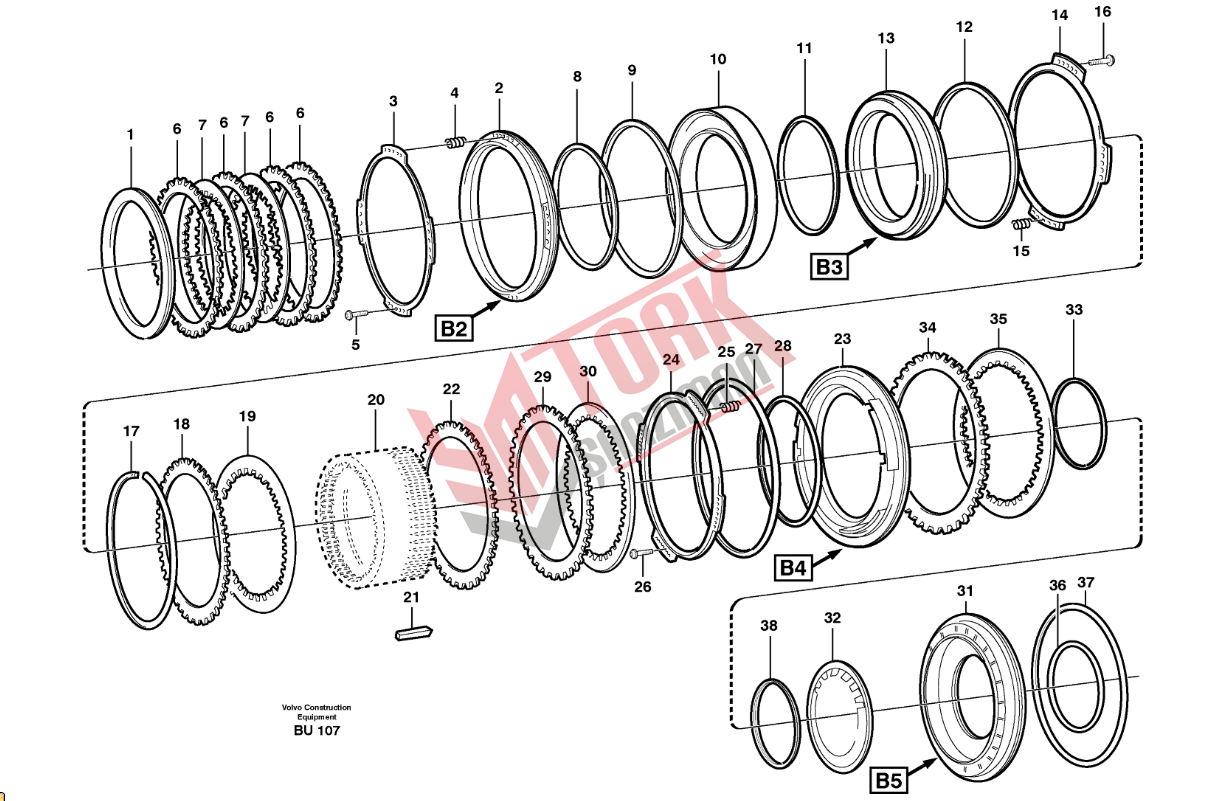

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 1650997 |
Back-up ring | 1 |
| 2 | 17274565 (1656461) |
Piston | 1 |
| 3 | 11038033 |
•Spring retainer | 1 |
| 4 | 1650609 |
•Return spring | 16 |
| 5 | 1650305 |
•Drive screw | 4 |
| 6 | 15067333 |
Steel disc | REQ |
| 6 | 15067334 |
Steel disc | |
| 6 | 15067334 (1650357) |
Steel disc | REQ |
| 7 | 11038723 |
Friction disc | 2 |
| 8 | 11989824 |
Sealing ring | 1 |
| 9 | 11989815 |
Sealing ring | 1 |
| 10 | 1650249 |
Cylinder | 1 |
| 11 | 11989826 |
Sealing ring | 1 |
| 12 | 11989818 |
Sealing ring | 1 |
| 13 | 1656462 |
Piston | 1 |
| 14 | |
•Spring Retainer | |
| 15 | 1650609 |
•Return spring | 20 |
| 16 | 1650305 |
•Drive screw | 4 |
| 17 | 1650335 |
Lock ring | 1 |
| 18 | 15067337 |
Steel disc | REQ |
| 18 | 15067338 |
Steel disc | REQ |
| 19 | 11038723 |
Friction disc | 5 |
| 20 | |
Ring gear | 1 |
| 21 | 1650510 |
Locking pin | 1 |
| 22 | 1650977 |
Pressure plate | 1 |
| 23 | 1656464 |
Piston | 1 |
| 24 | |
•Spring retainer | 1 |
| 25 | 1650609 |
•Return spring | 24 |
| 26 | 1650305 |
•Drive screw | 4 |
| 27 | 11989819 |
Sealing ring | 1 |
| 28 | 11989826 |
Sealing ring | 1 |
| 29 | 15067335 (1650314) |
Steel disc | REQ |
| 29 | 15067336 |
Steel disc | REQ |
| 30 | 11038724 |
Friction disc | 6 |
| 31 | 11145538 |
Piston | 1 |
| 32 | 11145701 |
Disc spring | 1 |
| 33 | 968827 |
Snap ring | 1 |
| 34 | 95067335 (1650314) |
Steel Disc | REQ |
| 34 | 15067336 |
Steel disc | REQ |
| 35 | 11038724 |
Friction disc | 6 |
| 36 | 11989827 |
Sealing ring | 1 |
| 37 | 11989820 |
Sealing ring | 1 |
| 38 | 11036822 |
Ring | 1 |
