A30E

Hemen bizi arayın yardımcı olalım

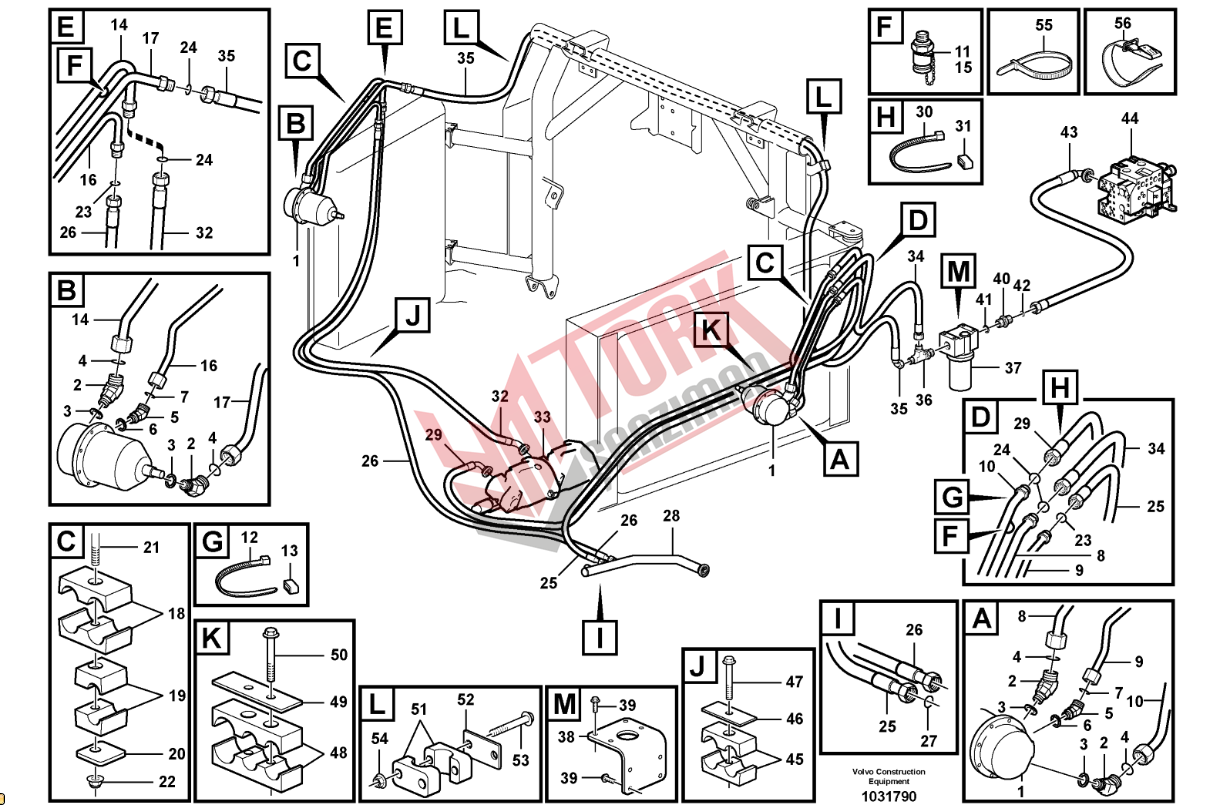

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Hydraulic motor	1
		Hydraulic motor	1
2	935787	Elbow nipple	4
3	14211863	•Sealing ring	4
4	990739	•O-ring	4
5	935786	Elbow nipple	2
6	14211856	•Sealing ring	2
7	990738	•O-ring	2
8	11193884	Tube	1
9	11193886	Tube	1
10	11193882	Tube	1
11	936444	Testing nipple	1
12	4821292	Cable tie	1
13	11120675	Marking sleeve	1
14	11193874	Tube	1
15	936444	Testing nipple	1
16	11193878	Tube	1
17	11193876	Tube	1
18	4880573	Clamp	2
19	11116118	Clamp	2
20	11116120	Cover plate	2
21		Bracket	1
		Bracket	1
22	13949278	Flange lock nut	2
23	990737	O-ring	2
24	990738	O-ring	4
25	935790	Hose assembly	1
26	935704	Hose assembly	1
27	990737	O-ring	1
28		Tube	1
29	935794	Hose assembly	1
30	4821292	Cable tie	1
31	11120675	Marking sleeve	1
32	936962	Hose assembly	1
33		Hydraulic Pump	1
34	935703	Hose assembly	1
35	11194113	Hose assembly	1
36	936575	Nipple	1
37		Return Filter	1
38		Plate	1
39	13946544	Screw	8
40	13933862	Nipple	1
41	993323 (932042)	•O-ring	1
42	990740	•O-ring	1
43	11193429	Hose assembly	1
44		Valve block	1
45	11191958	Clamp	1
46	11192285	Plate	1
47	13948217	Screw	1
48	11192342	Clamp	1
49	11192284	Plate	1
50	13965179	Screw	2
51	11114080	Clamp	2
52	11003048	Cover plate	2
53	13965177	Screw	4
54	13949278	Flange lock nut	4
55	4881440	Cable tie	REQ
56	11104606	Retaining strap	3
