A30E

Hemen bizi arayın yardımcı olalım

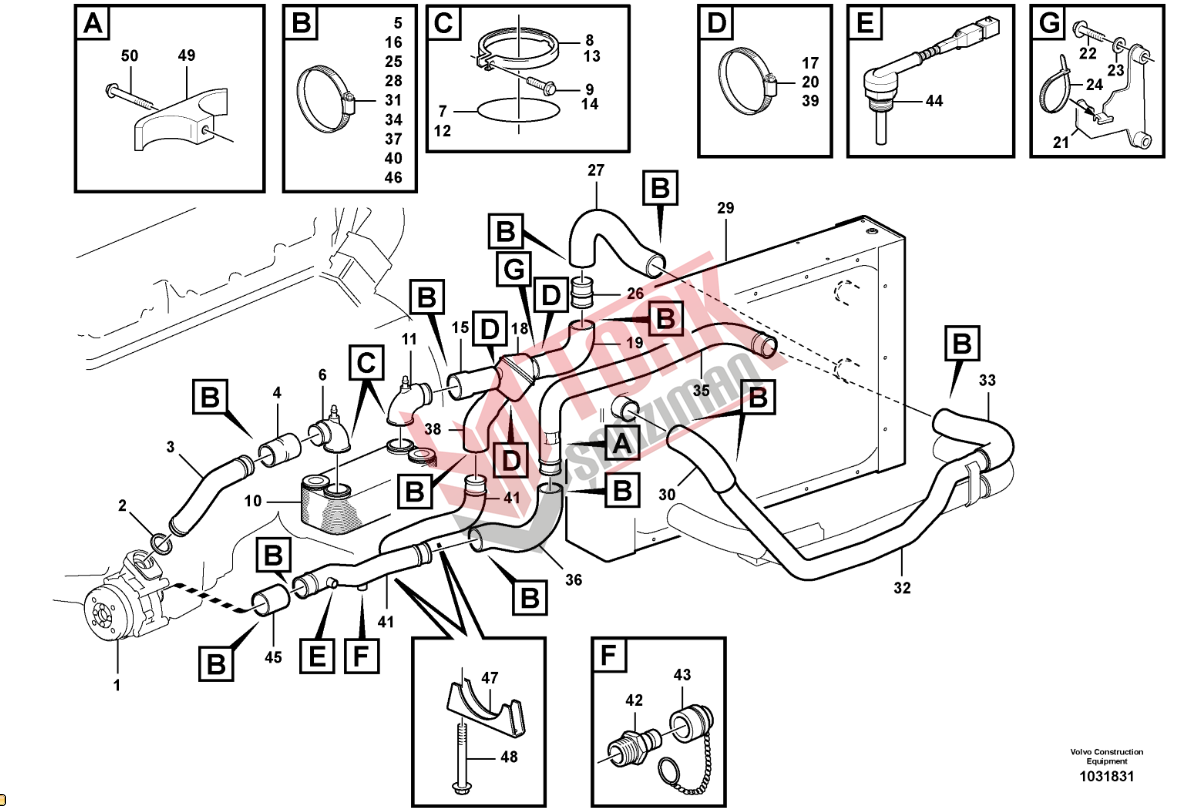

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Water Pump	1
2	11030312	Sealing ring	1
3	11121586	Pipe	1
4	11112379	Radiator hose	1
5	11059298	Hose clamp	2
6	16828476 (11119454)	Connecting pipe	1
	4871469	•Air vent valve	1
	11034256	••Protecting cap	1
7	11445263	O-ring	1
8	1542778	V-clamp	1
9	13948356	Flange screw	1
10		Heat Exchanger	1
11	16828476 (11119454)	Connecting pipe	1
12	11445263	O-ring	1
13	1542778	V-clamp	1
14	13948356	Flange screw	1
15	11063800	Radiator hose	1
16	11059298	Hose clamp	1
17	11059297	Hose clamp	1
18	11062225	Thermostat	1
19	11121590	Radiator hose	1
20	11059297	Hose clamp	1
21	11192759	Bracket	1
22	13947760	Screw	2
23	930840	Plain washer	2
24	4881440	Cable tie	1
25	11059298	Hose clamp	1
26	11121563	Pipe	1
27	11191878	Radiator hose	1
28	11059298	Hose clamp	2
29		Radiator	1
30	11027180	Radiator hose	1
31	11059298	Hose clamp	2
32	11193710	Pipe	1
33	4775509	Radiator hose	1
34	11059298	Hose clamp	2
35	11196780	Water pipe	1
36	4775509	Radiator hose	1
37	11059298	Hose clamp	2
38	11121591	Radiator hose	1
39	11059297	Hose clamp	1
40	11059298	Hose clamp	2
41	11195578	Water pipe	1
42	11423133	Nipple	1
43	11194108	Protecting sleeve	1
44	11419485	Temperature sensor	1
45	943372	Hose	REQ
46	11059298	Hose clamp	2
47	11115150	Clamp	2
48	13965180	Screw	4
49	11193785	Clamp	1
50	13965179	Screw	1
