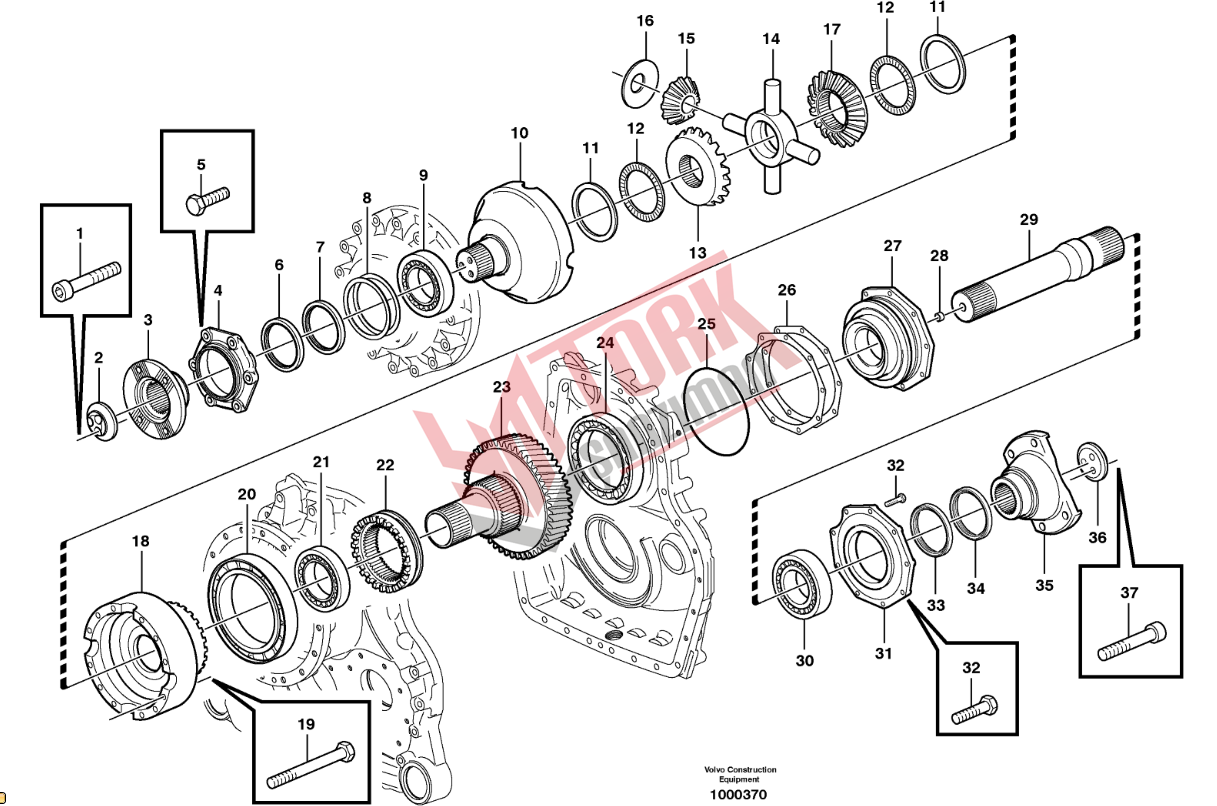

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 969223 |
Hex. socket screw | 3 |
| 2 | 11144135 |
Washer | 1 |
| 3 | 11145300 |
Companion flange | 1 |
| 4 | 11144229 |
Bearing cover | 1 |
| 5 | 13970970 |
Hexagon screw | 6 |
| 6 | 11144171 |
Sealing ring | 1 |
| 7 | 11716737 |
Sealing ring | 1 |
| 8 | 11144232 |
Shim | REQ |
| 8 | 11144233 |
Shim | REQ |
| 8 | 11144234 |
Shim | REQ |
| 8 | 11144235 |
Shim | REQ |
| 8 | 11144236 |
Shim | REQ |
| 8 | 11716738 |
Shim | REQ |
| 8 | 11144238 |
Shim | REQ |
| 8 | 11144239 |
Shim | REQ |
| 9 | 7011067 |
Roller bearing | 1 |
| 10 | 11144121 |
Differential housing | 1 |
| 11 | 11144144 |
Bearing washer | 2 |
| 12 | 11144145 |
Needle bearing | 2 |
| 13 | 17259280 |
Differential side gear | 1 |
| 14 | 11144130 |
Spider | 1 |
| 15 | 17259282 |
Differential side gear | 4 |
| 16 | 11144131 |
Thrust washer | 4 |
| 17 | 17259281 |
Differential side gear | 1 |
| 18 | 11145310 |
Differential housing | 1 |
| 19 | 13979275 |
Hexagon screw | 12 |
| 20 | 11144147 |
Roller bearing | 1 |
| 21 | 6210074 |
Roller bearing | 1 |
| 22 | 11145309 |
Dog clutch | 1 |
| 23 | 11144123 |
Gear | 1 |
| 24 | 11144149 |
Roller bearing | 1 |
| 25 | 11419519 |
O-ring | 1 |
| 26 | 11144136 |
Shim | REQ |
| 26 | 11144137 |
Shim | REQ |
| 26 | 11144138 |
Shim | REQ |
| 26 | 11144139 |
Shim | REQ |
| 26 | 11144140 |
Shim | REQ |
| 26 | 11144141 |
Shim | REQ |
| 26 | 11144142 |
Shim | REQ |
| 26 | 11144143 |
Shim | REQ |
| 27 | 11144103 |
Bearing support | 1 |
| 28 | 11144228 |
Cap plug | 1 |
| 29 | 11144125 |
Shaft | 1 |
| 30 | 11144240 |
Roller bearing | 1 |
| 31 | 11144102 |
Bearing cover | 1 |
| 32 | 13970973 |
Hexagon screw | 9 |
| 33 | 11716737 |
Sealing ring | 1 |
| 34 | 11144171 |
Sealing ring | 1 |
| 35 | 11145301 |
Companion flange | 1 |
| 36 | 11144135 |
Washer | 1 |
| 37 | 969223 |
Hex. socket screw | 3 |
