A25G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

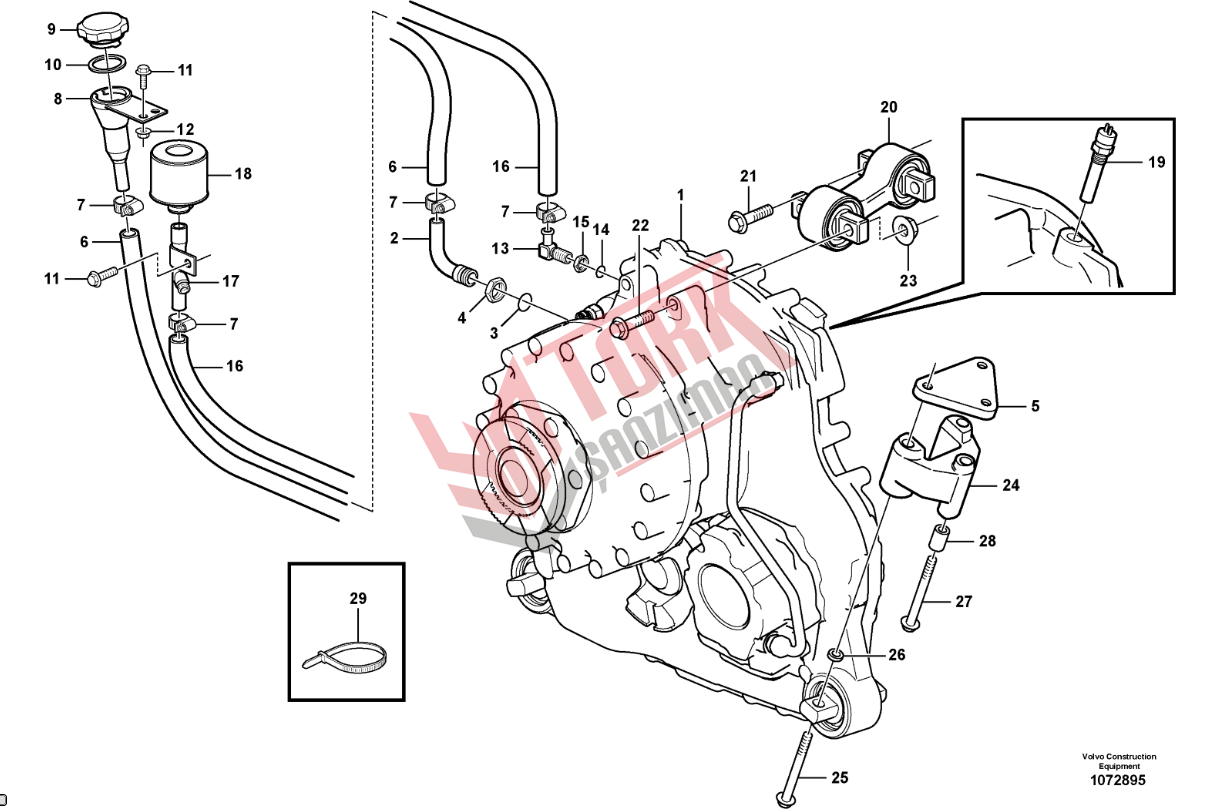

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 22555 |
Transfer gearbox | 1 |
| 2 | 11120013 |
Hose connection | 1 |
| 3 | 13949657 |
O-ring | 1 |
| 4 | 968983 |
Hexagon nut | 1 |
| 5 | 11119085 |
Plate | 2 |
| 6 | 992109 |
Hose | REQ |
| 7 | 13943474 |
Hose clamp | 4 |
| 8 | 11114129 |
Oil filler pipe | 1 |
| 9 | 421753 |
Filler cap | 1 |
| 10 | 1275379 |
Gasket | 1 |
| 11 | 13946173 |
Screw | 3 |
| 12 | 948645 |
Flange lock nut | 2 |
| 13 | 6775550 |
Fitting | 1 |
| 14 | 13949656 |
O-ring | 1 |
| 15 | 945895 |
Hexagon nut | 1 |
| 16 | 992109 |
Hose | REQ |
| 17 | 15149790 |
Pipe | 1 |
| 18 | 11172907 |
Air filter | 1 |
| 19 | 15090261 |
Induction sensor | 1 |
| 20 | 11121210 |
Stay | 1 |
| 21 | 968297 |
Flange screw | 2 |
| 22 | 968591 |
Flange screw | 2 |
| 23 | 13968904 |
Flange nut | 2 |
| 24 | 11049114 |
Anchorage | 2 |
| 25 | 974573 |
Flange screw | 4 |
| 26 | 13955900 |
Washer | 4 |
| 27 | 968299 |
Flange screw | 2 |
| 28 | 4943178 |
Spacer ring | 2 |
| 29 | 4881440 |
Cable tie | REQ |
