A25G
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

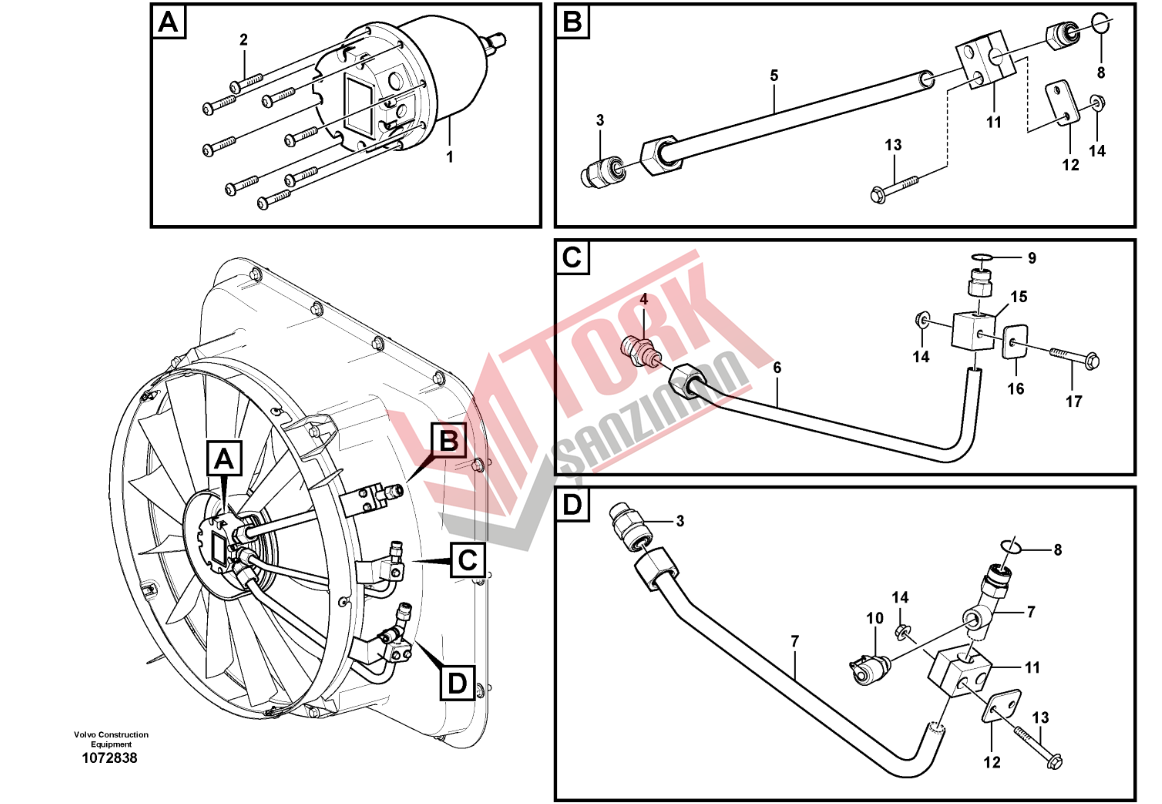

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 15070857 |
Fan motor | 1 |
| 11707896 |
•O-ring | 1 | |
| 11707895 |
•Sealing ring | 1 | |
| 2 | 969147 |
Six point socket screw | 8 |
| 3 | 936148 |
Nipple | 2 |
| 990739 |
•O-ring | 2 | |
| 14211863 |
•Sealing ring | 2 | |
| 4 | 15128820 |
Nipple | 1 |
| 5 | 17406124 |
Pipe | 1 |
| 17406232 |
•Pipe | 1 | |
| 935332 |
•Nut | 1 | |
| 6 | 15176884 |
Pipe | 1 |
| 13933904 |
•Fitting nut | 1 | |
| 7 | 17405525 |
Pipe | 1 |
| 8 | 990738 |
O-ring | 2 |
| 9 | 990737 |
O-ring | 1 |
| 10 | 936444 |
Testing nipple | 1 |
| 11 | 15176944 |
Clamp | 2 |
| 12 | |
Cover plate | 2 |
| 13 | 965177 |
Flange screw | 4 |
| 14 | 949278 |
Flange lock nut | 5 |
| 15 | 11116118 |
Clamp | 1 |
| 16 | 11116120 |
Cover plate | 1 |
| 17 | 965176 |
Flange screw | 1 |
