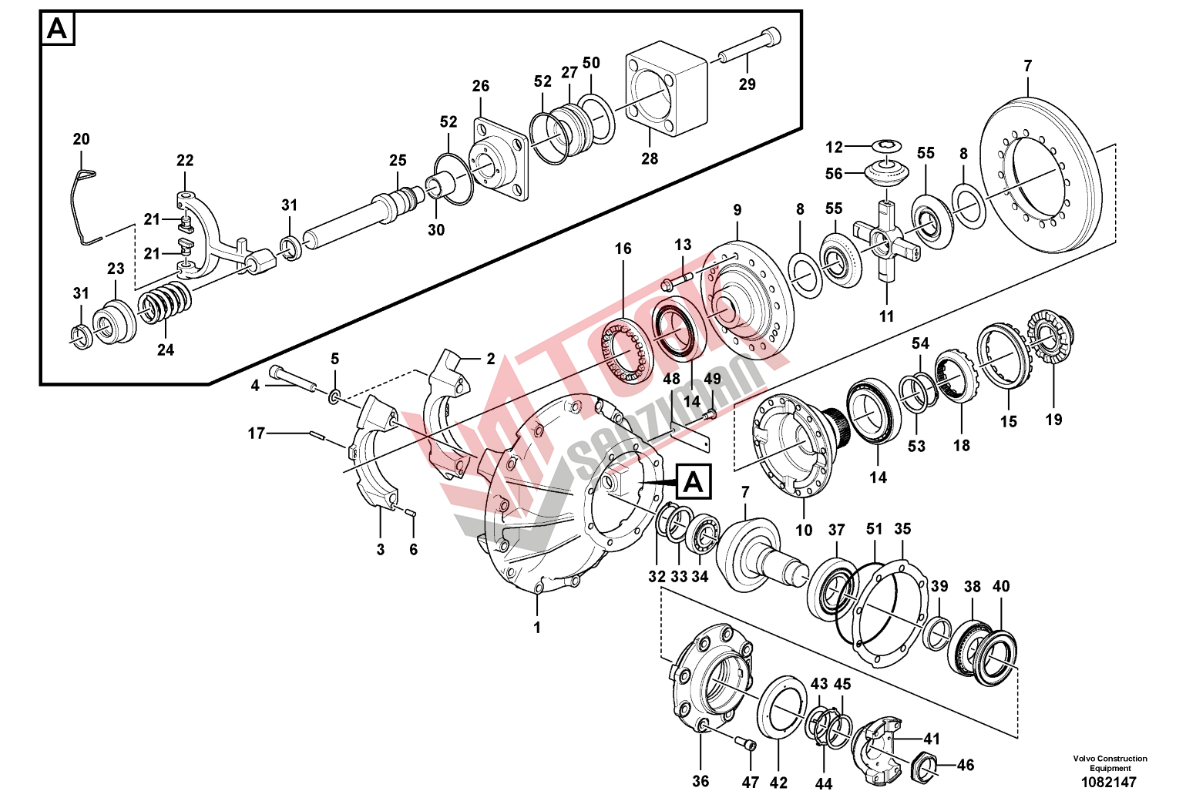

FRONT AXLE; REAR AXLE > 461/300 Final drive 56094

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	17298348	Differential carrier	1
	17247607	•Centre housing	1
1		••Centre housing	1
2		••Cap	1
3		••Cap	1
4	966790	••Hex. socket screw	4
5		••Washer	4
6	950588	••Pin	4
7	17246478	•Drive gear set	1
8	17245228	•Thrust washer	2
9	17437279	•Differential housing	1
10	17437430	•Differential housing	1
11	17239952	•Spider	1
12	17438016	•Thrust washer	4
13	81241442	•Flange screw	14
14	184637	•Roller bearing	2
15	11102411	•Bearing adjuster	1
16	17239358	•Adjusting nut	1
17	951994	•Spring pin	2
18	11102409	•Companion flange	1
19	17247173	•Dog clutch	1
20	1523372	•Lock brace	1
21	1523087	•Pin	2
22	17241744	•Fork	1
23	17380348	•Bushing	1
24	17245352	•Spring	1
25	17241558	•Piston	1
26	17245285	•Cover	1
27	17246312	•Piston head	1
28	17246273	•Cover	1
29	967637	•Hex. socket screw	4
30	17418789	•Bushing	REQ
30	17420369	•Bushing	REQ
30	17420370	•Bushing	REQ
30	17420371	•Bushing	REQ
30	17420372	•Bushing	REQ
30	17420379	•Bushing	REQ
30	17420380	•Bushing	REQ
30	17420381	•Bushing	REQ
30	17420382	•Bushing	REQ
31	11168132	•Guide ring	2
32	914470	•Snap ring	1
33	13949851	•Washer	1
34	183688	•Roller bearing	1
35	17250318	•Shim	REQ
35	17287236	•Shim	REQ
35	17287237	•Shim	REQ
35	17287238	•Shim	REQ
36	17470257 (17239750)	•Pinion bearing sleeve	1
37		•Roller bearing	1
38	11035994	•Roller bearing	1
39	17239263	•Spacer sleeve	REQ
39	17286465	•Spacer sleeve	REQ
39	17286466	•Spacer sleeve	REQ
39	17286467	•Spacer sleeve	REQ
39	17286468	•Spacer sleeve	REQ
39	17286470	•Spacer sleeve	REQ
39	17286472	•Spacer sleeve	REQ
39	17286474	•Spacer sleeve	REQ
39	17286476	•Spacer sleeve	REQ
39	17286479	•Spacer sleeve	REQ
39	17286480	•Spacer sleeve	REQ
39	17286482	•Spacer sleeve	REQ
39	17286484	•Spacer sleeve	REQ
39	17286488	•Spacer sleeve	REQ
39	17286490	•Spacer sleeve	REQ
39	17286492	•Spacer sleeve	REQ
39	17286494	•Spacer sleeve	REQ
39	17286486	•Spacer sleeve	REQ
40	17264219	•Sealing ring	1
41	17251354	•Companion flange	1
42		••Dust cover	1
43	1523317	•Washer	1
44	1523318	•Lock washer	REQ
44	1523319	•Lock washer	REQ
45	914484	•Snap ring	1
46	1522293	•Nut	1
47	13968816	•Allen Hd Screw	8
48		•Sign	1
49	950891	•Drive screw	2
50	17406753	•O-ring	1
51	13949737	•O-ring	1
52	983499	•O-ring	2
53	1522102	•Washer	1
54	945506	•Snap ring	1
55	17240332	•Differential side gear	2
56	17240333	•Differential pinion	4
